Alpha Wire | www.alphawire.com | 1-800-52 ALPHA
Specifications subject to change. For complete specifications and availability, visit www.alphawire.com.
67
Cable > Xtra-Guard > Xtra-Guard 2 > Multipair > Foil Shield > 300 V

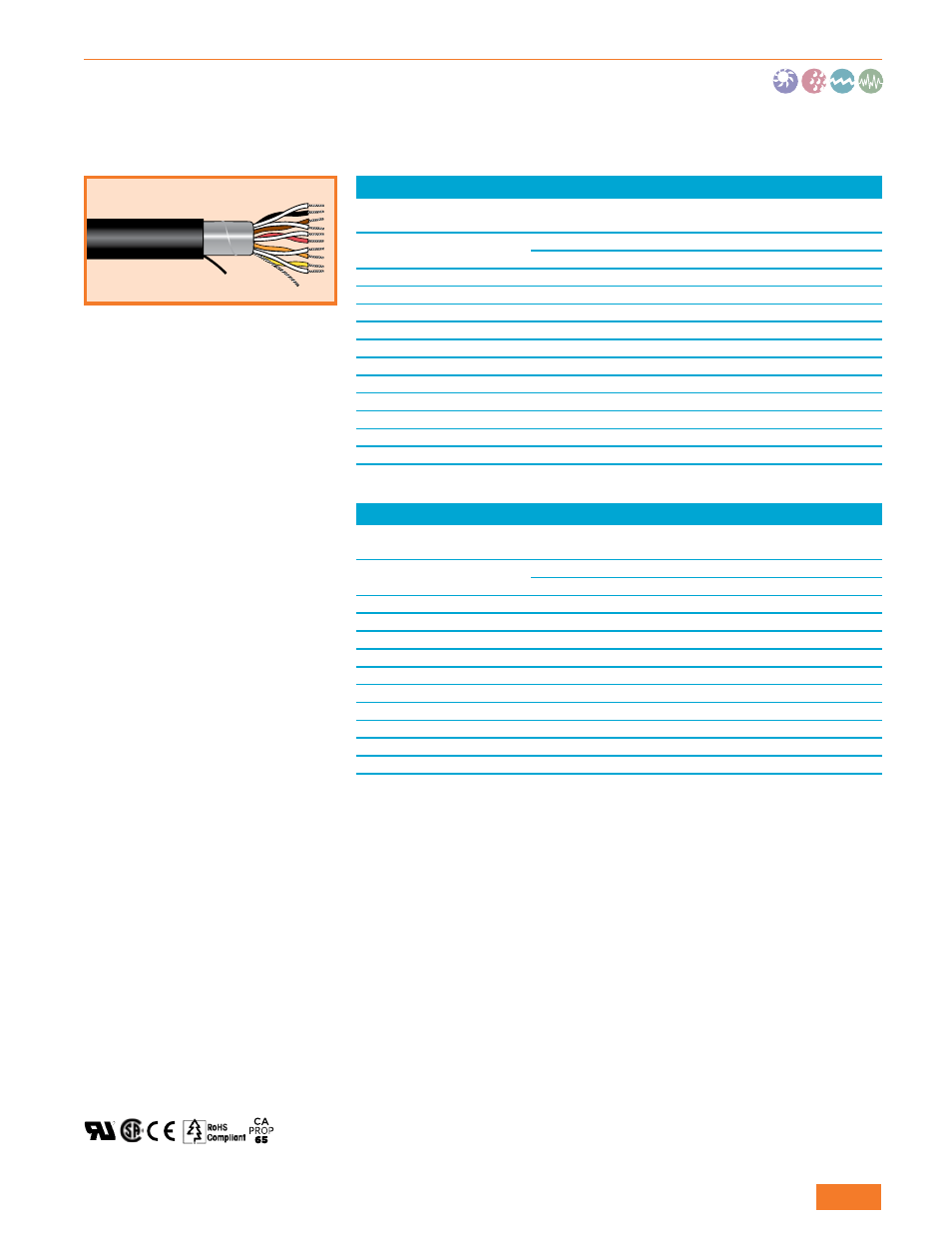

Xtra-Guard® 2
Oil and Abrasion Resistant
300 V Foil Shield, Multipair
UL AWM 20668 VW-1
CSA AWM I/II A/B FT1
Operating Temperature
• –30°C to +90°C
Conductor Color Coding
• 24, 22 AWG: Chart B (page 516)
• 20, 18 AWG: Chart A (page 516)
• Nine jacket colors
(black standard)
• Custom colors available
Materials
• Stranded tinned copper
conductors
• Premium PVC insulation
• Specially formulated
polyurethane jacket
• UV resistant
• Aluminum/polyester/aluminum
foil shield, with 25% overlap and
foil facing inward
• Tinned copper drain wire sized
the same as cable conductors
• Nylon ripcord
Availability
Made to order
1000 ft (305 m) minimum
FIT® Tubing Recommendations
• FIT-750: Bonding adhesive lined,
cross-linked polyolefin
24 AWG (0.23 mm
2
)
Stranding: 7/32 (7 x 0.20 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Pairs
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
25491
1
0.160
4.06
0.032
0.81
25492
2
0.216
5.48
0.032
0.81
25493
3
0.228
5.79
0.032
0.81
25494
4
0.247
6.27
0.032
0.81
25495
5
0.268
6.81
0.032
0.81
25496
6
0.290
7.37
0.032
0.81
25499
9
0.336
8.53
0.032
0.81
25499/11
11
0.361
9.17
0.032
0.81
25499/15
15
0.405
10.29
0.032
0.81
25499/19
19
0.433
11.00
0.032
0.81
25499/27
27
0.516
13.11
0.032
0.81
22 AWG (0.35 mm
2
)
Stranding: 7/30 (7 x 0.25 mm)
Insulation thickness: 0.010 (0.25 mm)
Part No.
Pairs
Nominal Diameter
Jacket Thickness
Inch
mm
Inch
mm
25481
1
0.172
4.37
0.032
0.81
25482
2
0.236
5.99
0.032
0.81
25483
3
0.249
6.32
0.032
0.81
25484
4
0.271
6.88
0.032
0.81
25485
5
0.295
7.49
0.032
0.81
25486
6
0.320
8.13
0.032
0.81
25489
9
0.372
9.45
0.032
0.81
25489/11
11
0.400
10.16
0.032
0.81
25489/15
15
0.451
11.46
0.032
0.81
25489/19
19
0.483
12.27
0.032
0.81
