8 Process data transfer
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

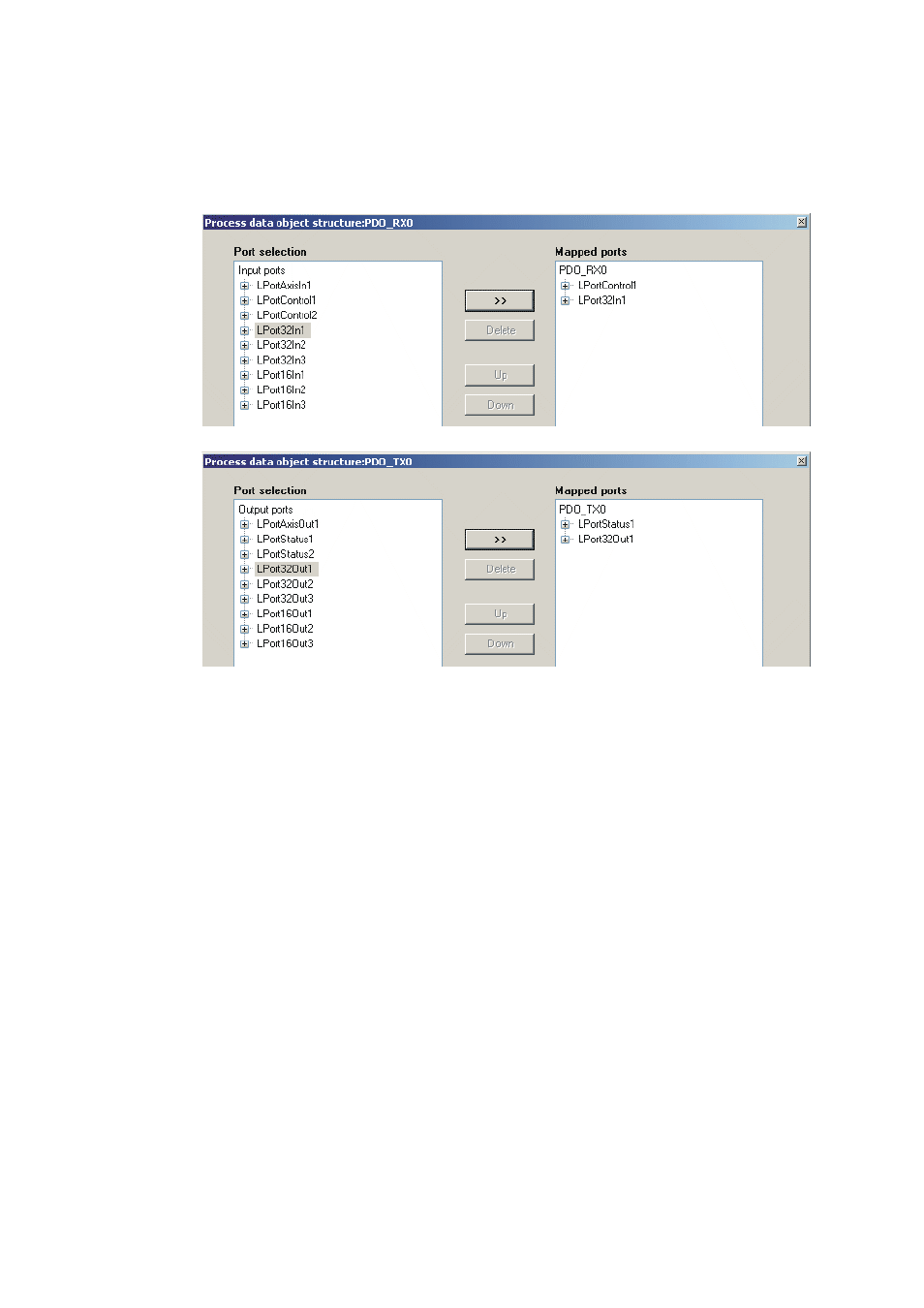

In the following example, the ports "LPortControl1" and "Lport32In1" have been mapped
into the receive PDO "PDO_RX0" and the ports "LPortStatus1" and "LPort32Out1" have been
mapped into the transmit PDO "PDO_TX0":
4. Now link the mapped ports to the application signals in the selected technology
application.
• Activate the »FB-Editor« via the multiplexer codes (from code C03000) if this has not
been done yet.
• If the »FB Editor« is activated, the multiplexer codes are no longer available. In this case,
you must carry out the interconnection directly in the »FB Editor«.
