3

Product description

3.4

Terminals and interfaces

14

Lenze · E94AYCER communication module (PROFINET®) · Communication Manual · DMS 9.0 EN · 12/2013 · TD17

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

3.4

Terminals and interfaces

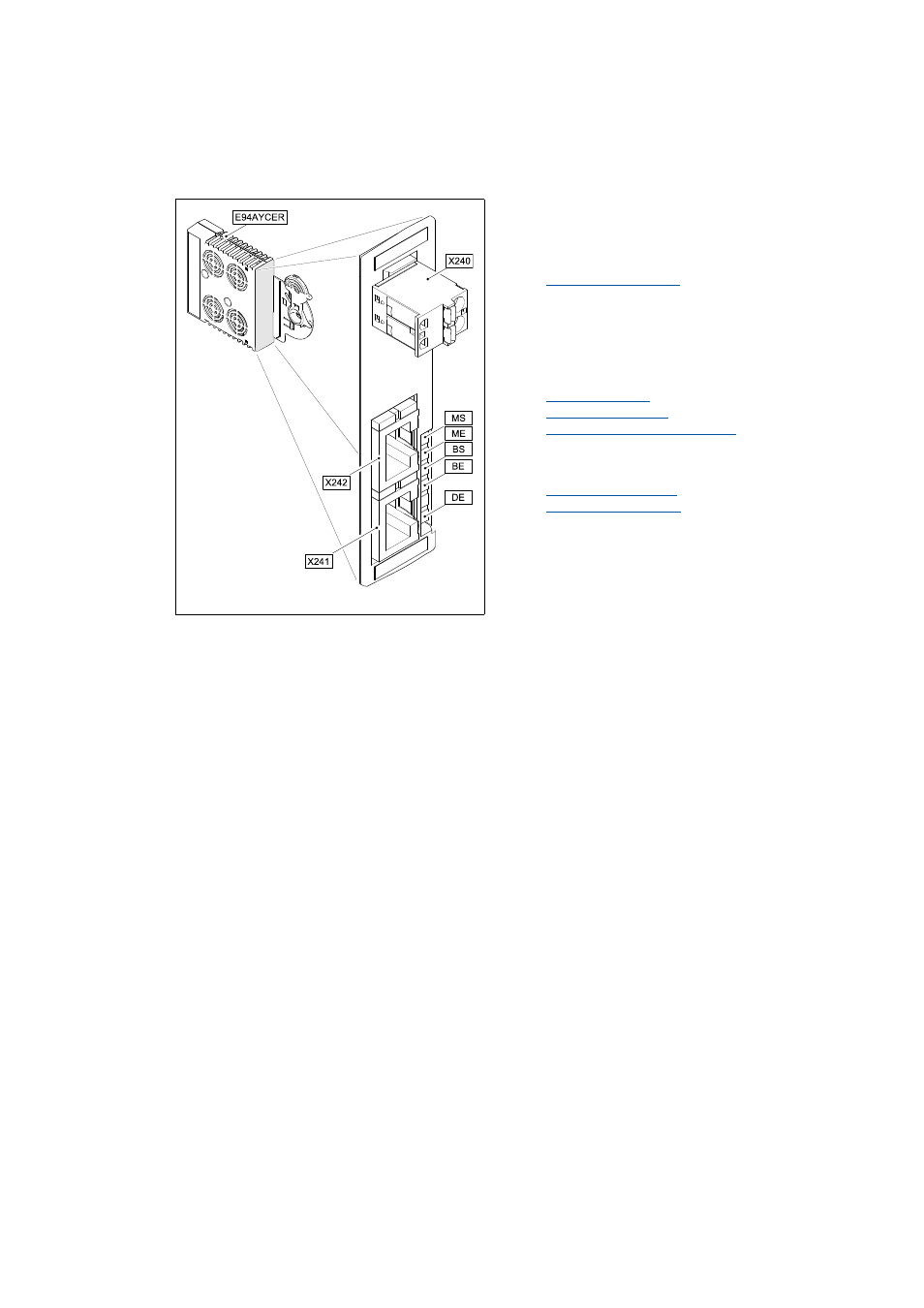

[3-2]

E94AYCER communication module (PROFINET)

E94YCER001B

X240 External voltage supply of the communication

module

• 2-pin plug connector with spring connection

External voltage supply ( 31)

X241 PROFINET input (IN)
X242 PROFINET output (OUT)

• RJ45 sockets according to IEC/EN 60603-7

• each with 2 LED status displays for diagnostics

Network topology ( 25)

PROFINET connection ( 27)

Status displays at X241 and X242 ( 80)

MS

ME

BS

BE

DE

LED status displays for diagnostic purposes

Module status displays ( 78)

Fieldbus status displays

( 79)
