8 Process data transfer
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
8 Process data transfer
PDO mapping
The Servo Drives 9400 enable the individual mapping of process data. For this purpose, the
»Engineer« is provided with a port configurator.
In the following, you can find a description of the steps required to implement a process data
communication with a host (PLC, IO Controller), in which a control word/status word and a 32 bit
setpoint/actual value are exchanged.

PDO mapping with the »Engineer«

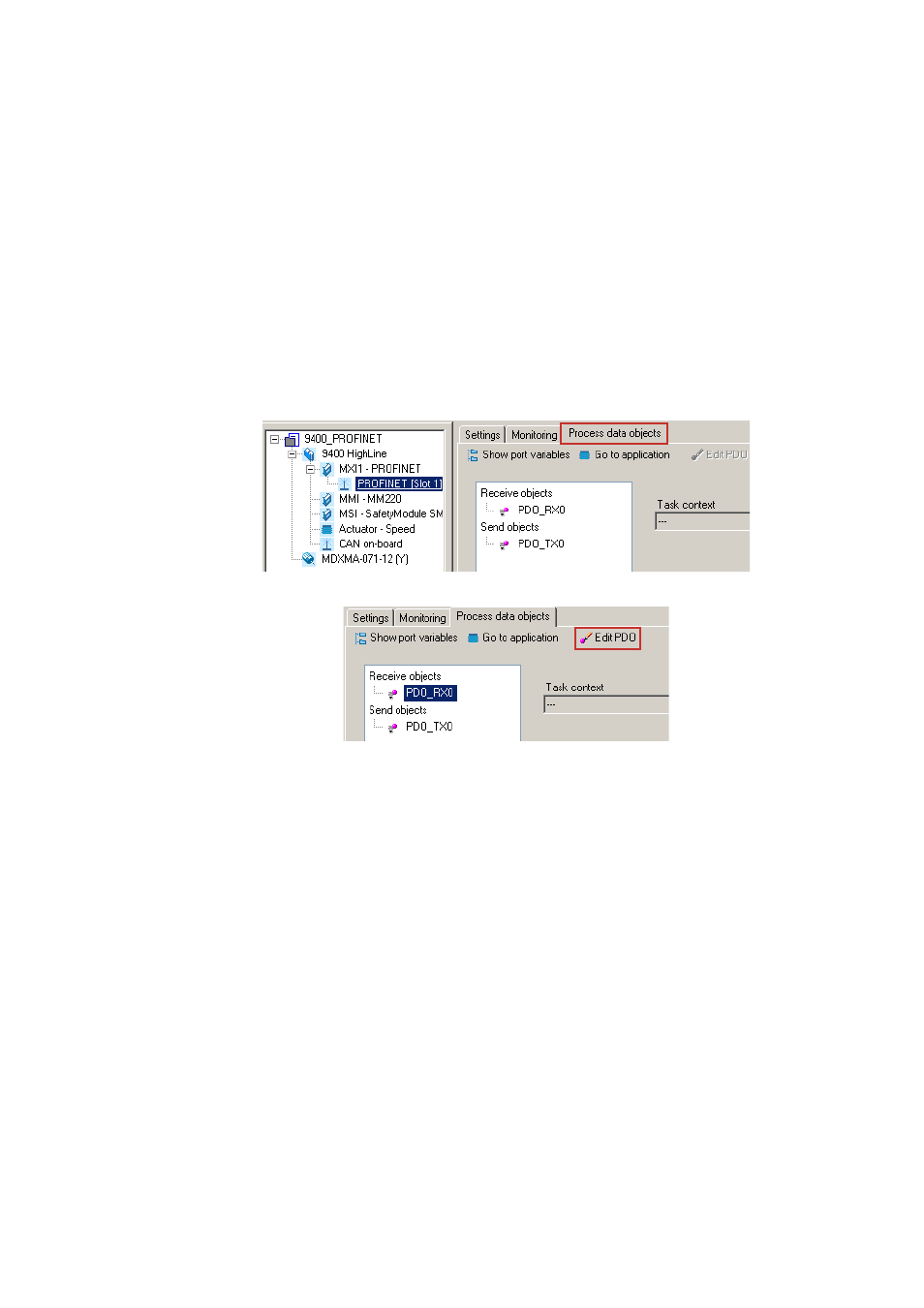

1. In the »Engineer«, the mapping of the process data is carried out under the Process data
objects tab of the respective fieldbus communication module:
2. Select the receive object PDO_RX0:
