5 Installation
5.2 Electrical installation
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.2.2 Network topology
It is typical of PROFINET to have a rather free topology the limiting factor of which is large message
latencies due to e.g. switches connected in series.
 Internal switch latency ( 17)
The combination of a line and a stub is useful for system wiring.

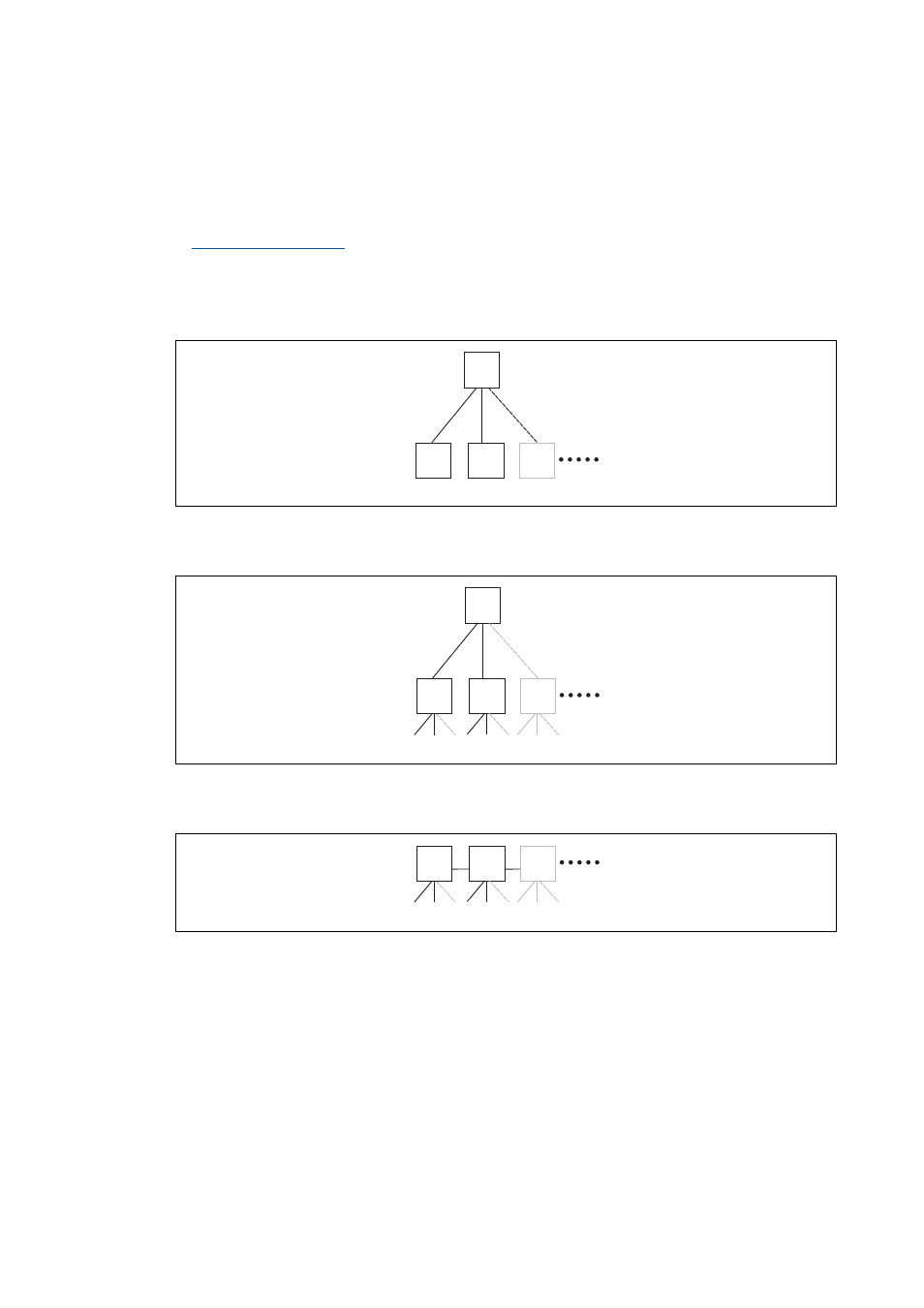

PROFINET supports the following topologies:
• Switch / star
[5-4] Switch / star topology (S = switch, D = IO device)
• Tree via switches
[5-5] Tree topology (C =IO controller, S = switch)
• Switch / switch
[5-6] Switch/switch topology (S = switch)
E94YCER005
S
D D D
E94YCER006
C
S S S
E94YCER007
S S S
