6 Commissioning
6.4 Setting the IP configuration
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

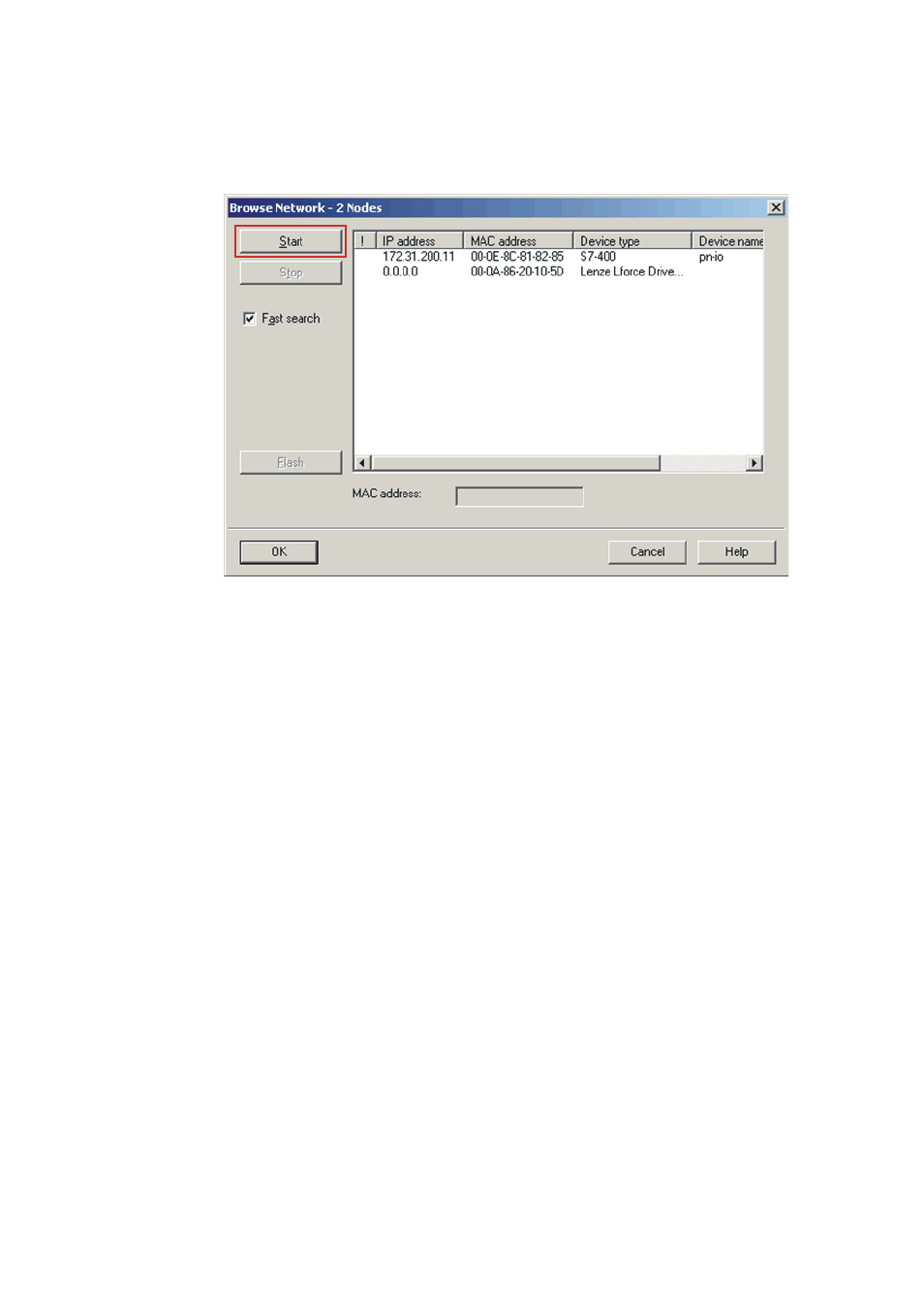

3. In the "Browse network" dialog, click the Start button to search the network for PROFINET
nodes.
In our example, one Lenze PROFINET node was found that does not have an IP address yet
(entry 0.0.0.0).
Definite allocation without an IP address is also possible via the MAC address.
For this purpose, select the PROFINET node without an IP address (highlighted in blue) and
close the dialog by clicking the OK button.
