6 Commissioning
6.4 Setting the IP configuration
38
Lenze · E94AYCER communication module (PROFINET®) · Communication Manual · DMS 9.0 EN · 12/2013 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.4.1 Setting via the PROFINET configurator of the »Engineer«

How to set the IP parameters via the PROFINET configurator:

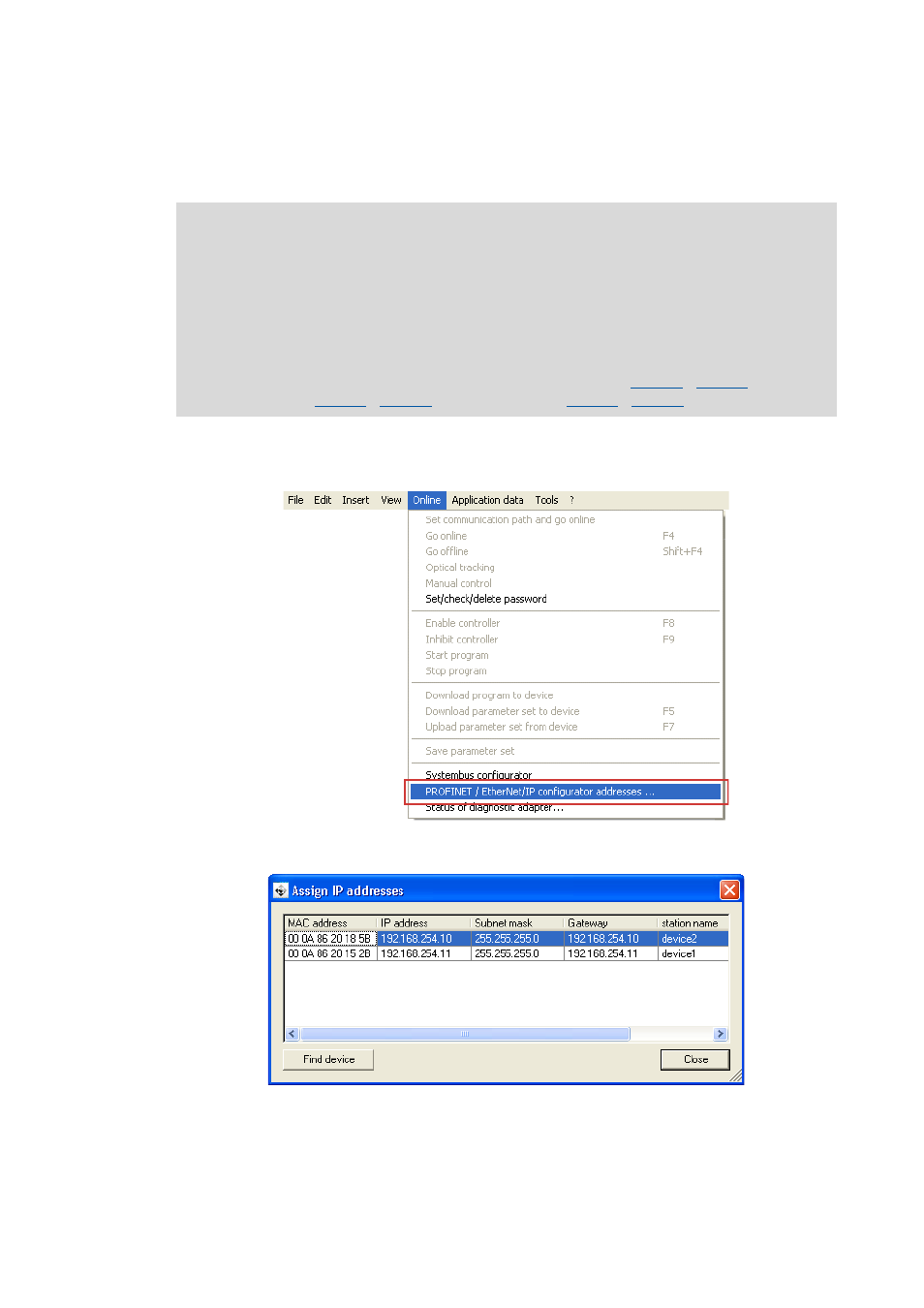

1. Execute the menu command Online  PROFINET / EtherNet/IP configurator addresses ....
The "Assign IP addresses" dialog window is opened and all Lenze PROFINET nodes
connected are listed.

Note!
• The IP address must only be allocated manually in the »Engineer« if the PROFINET
network is not operated on the IO controller yet (IP address has not been allocated by
the IO controller yet).
• While setting the IP parameters in the »Engineer«, PROFINET communication with the
IO controller must not take place at the same time.
• Changes become effective immediately and are saved with mains failure protection.
• The currently used parameter values are shown in codes
C13010 / C14010 (IP
address), C13011 / C14011 (subnet mask), and C13012 / C14012 (gateway address).
