6 Commissioning
6.4 Setting the IP configuration
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

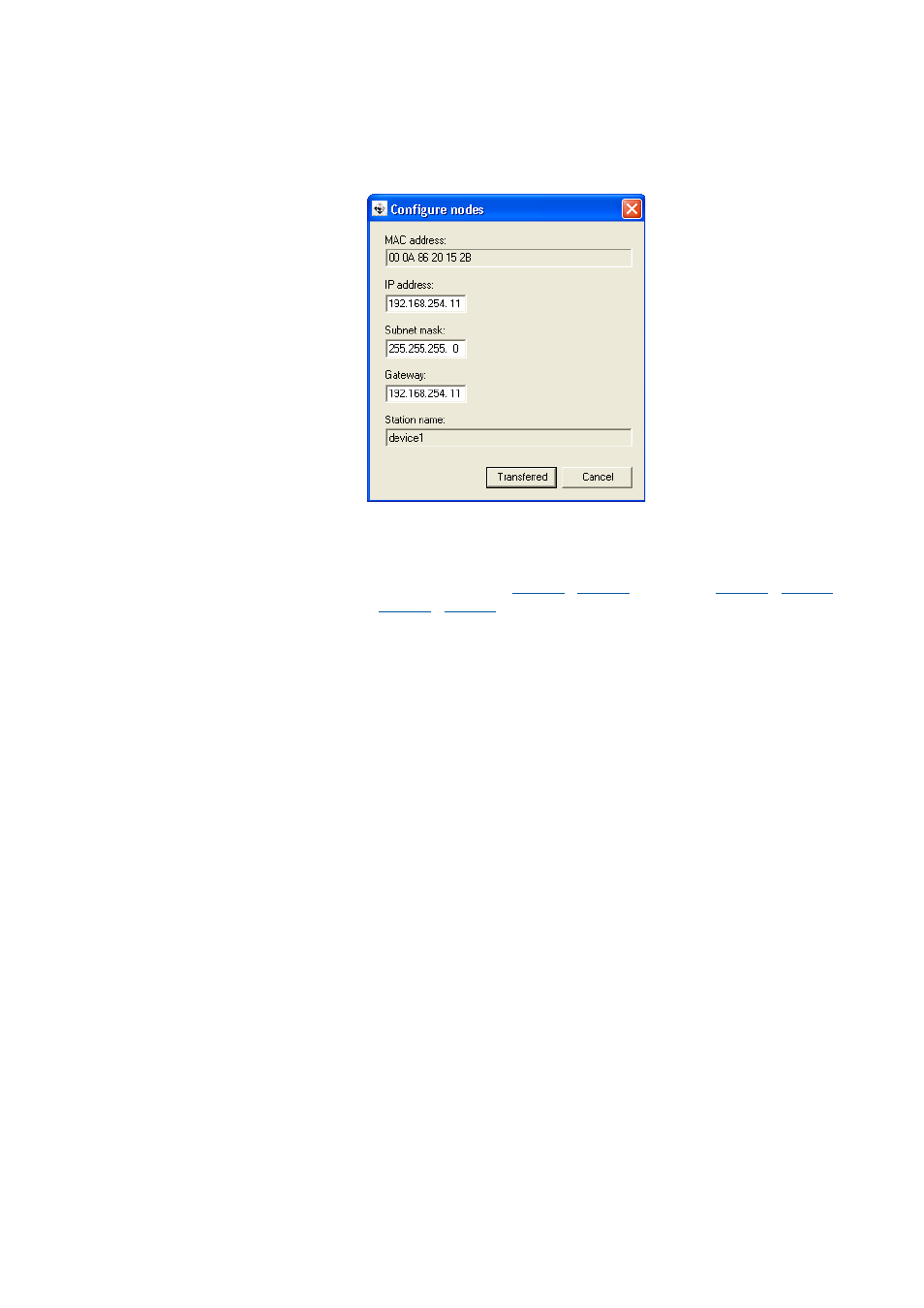

2. By double-clicking on the individual IP parameters, you can set the IP configuration for each
PROFINET node in the 'Configure nodes' dialog window.
3. Click the Transferred button.
• The IP configuration is transferred to the corresponding PROFINET node.
• Changes in the IP parameters will become effective immediately.
• The IP parameters are written to codes
C13000 / C14000 (IP address), C13001 / C14001
(subnet mask) and C13002 / C14002 (gateway address).

Tip!
By clicking the Find device in the 'Assign IP addresses' dialog window (see step 1) you can
check whether the configuration has been transferred successfully.
With device command C00002 = "11: Save start parameters" , the current IP configuration
is saved non-volatilely in the memory module.
