6

Commissioning

6.5

Establishing an online connection via PROFINET with the Lenze »Engineer«

50

Lenze · E94AYCER communication module (PROFINET®) · Communication Manual · DMS 9.0 EN · 12/2013 · TD17

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

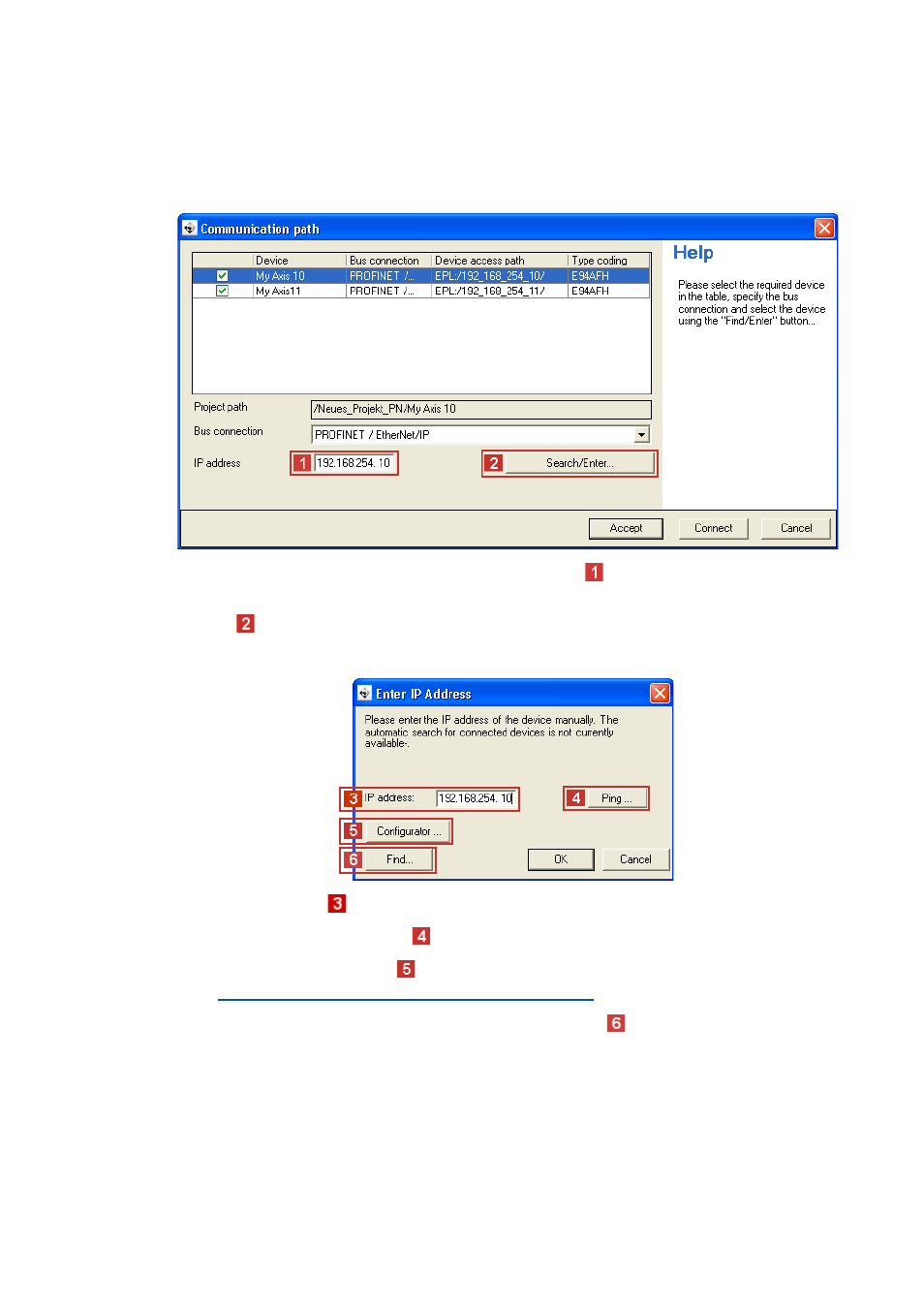

In the »Engineer«, you can use the Online Set communication path and go online menu

command to select the PROFINET communication path. The previously configured PROFINET nodes

are shown in the "Communication path" dialog window:

If the device access path is not configured correctly, here the

IP address of the drive selected in

the display field can be entered manually.

Via the

Search/Enter button, you can establish a connection to devices which have not

appeared in the display field. Corresponding settings for this can be made in the "Enter IP Address"

dialog window that will appear:

Here you can enter an

IP address manually or execute the following actions using the buttons:

• Execute the console command

Ping.

• Assign the IP address via the

Configurator.

Setting via the PROFINET configurator of the »Engineer«

( 38)

• Select the device access path to the desired drive by clicking

Find.

After having established the online connection, you can continue work with the »Engineer« as

usual.
