6 Commissioning
6.4 Setting the IP configuration
46
Lenze · E94AYCER communication module (PROFINET®) · Communication Manual · DMS 9.0 EN · 12/2013 · TD17
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

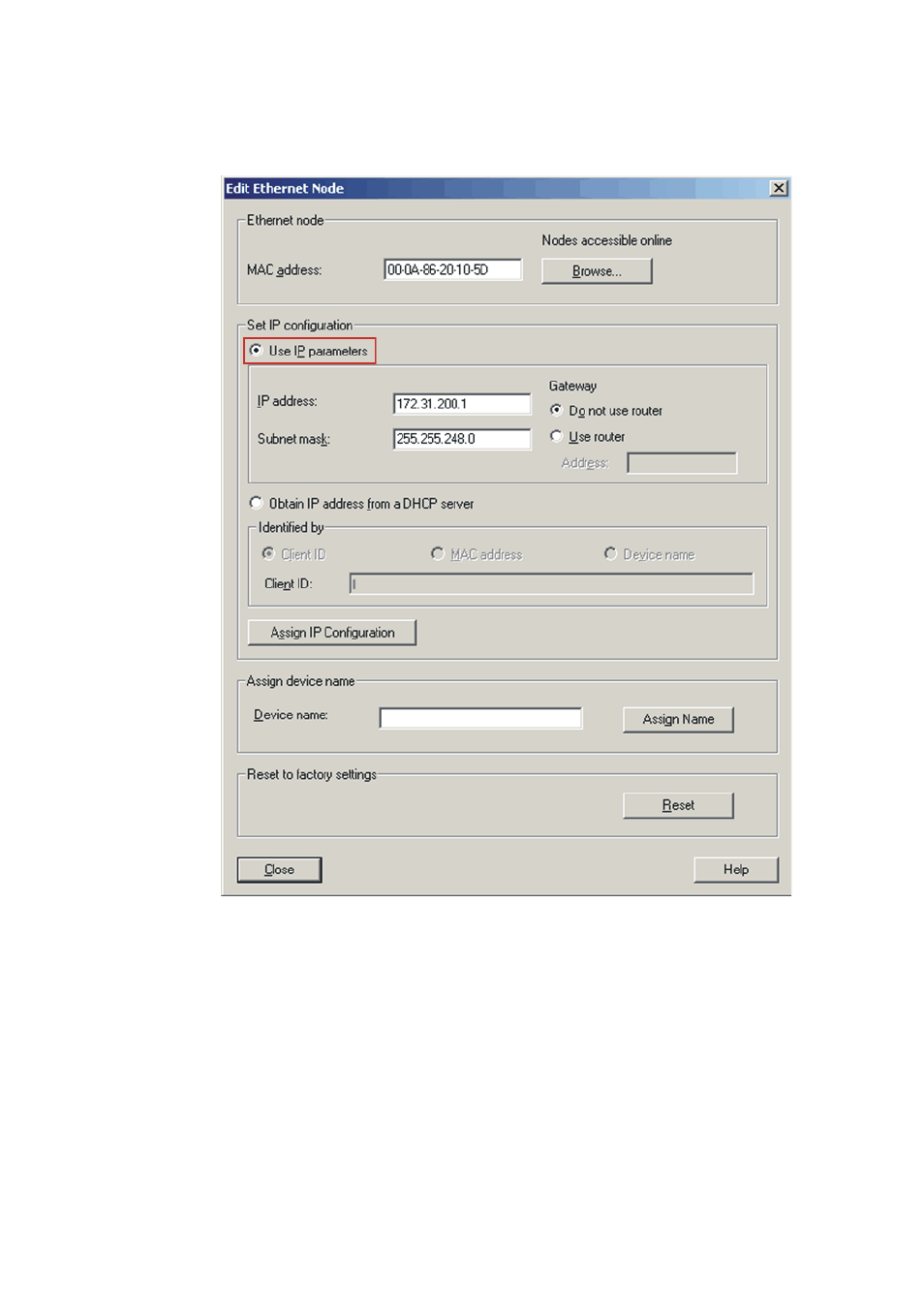

4. The MAC address of the selected PROFINET node has been accepted.
Go to the "Set IP configuration" section and activate Use IP parameters and enter the IP
address.
In our example, IP address 172.31.200.1 has been allocated to the Servo Drive 9400 with
MAC address 00-0A-86-20-10-5D.

Tip!
Another search via the Browse button can be started to check if your IP address allocation
has been successful.
