Pin assignments Appendix
– 60 –
Alex M
030430-150B
Alex_M_E_150C_A5.doc
Alex M 6 x 5 kVA
Upper HTS plug-in connector (CH 1-3):
Pin 1 3 5
Assignment
(phase)
L
CH 1
L
CH 2
L
CH 3
Pin 2 4 6
Assignment
(neutral)
N
CH 1
N
CH 2
N
CH 3
Lower HTS plug-in connector (CH 4-6):
Pin 1 3 5
Assignment
(phase)
L
CH 4
L
CH 5
L
CH 6
Pin 2 4 6
Assignment
(neutral)
N
CH 4
N
CH 5
N
CH 6

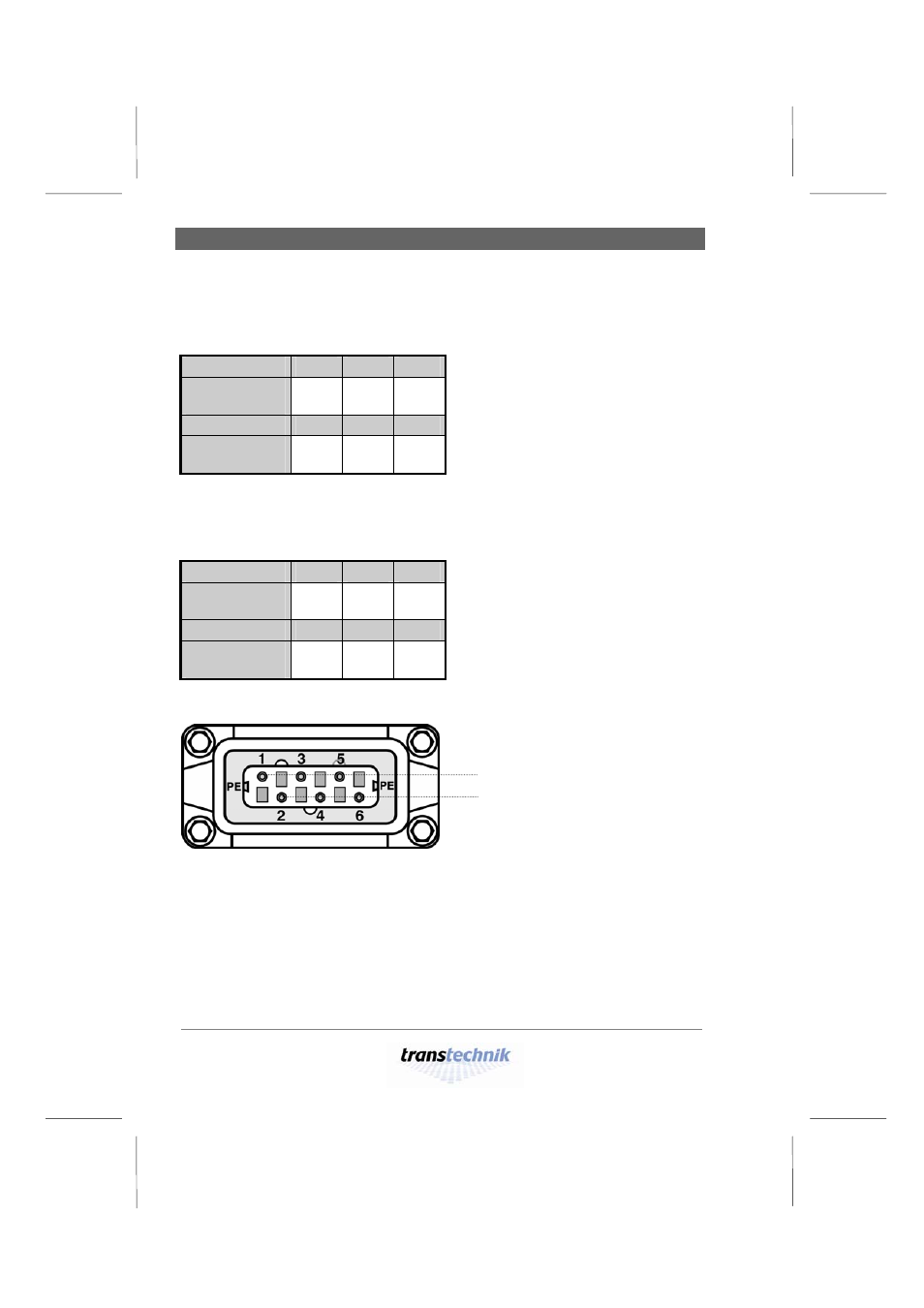

Fig. 37:
6-pin HTS plug-in connector
(load outputs
Alex M 6 x 5 kVA)
N
L
