Controls

Working with Alex M

– 16 –

Alex M

030430-150B

Alex_M_E_150C_A5.doc

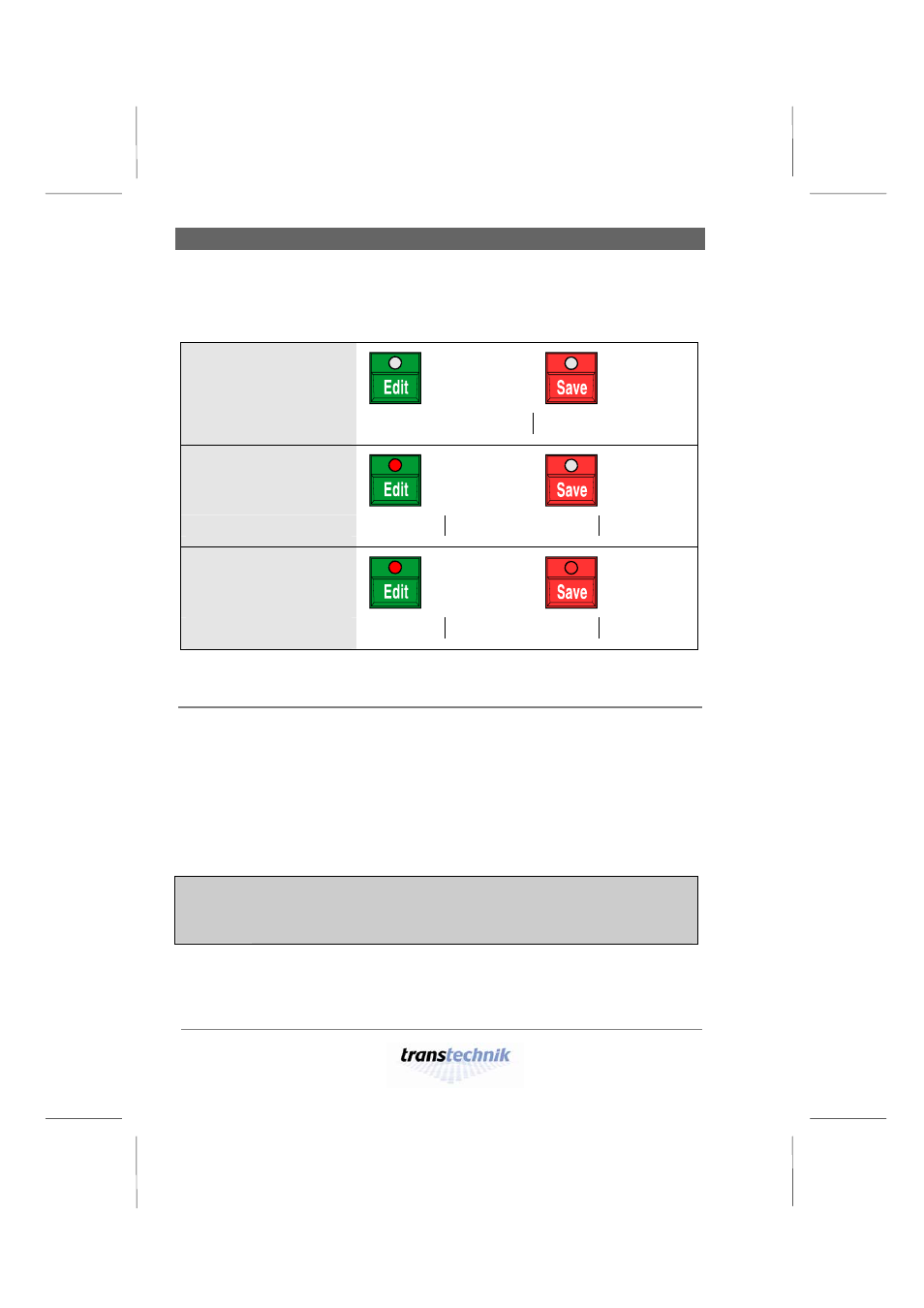

The LEDs in the

[Edit] and [Save] keys and the status line at the bottom of

the display provide information on the current input status:

Edit mode
not active

Status line

Wheel selects

Edit to change

Edit mode active,
no values
changed yet

Í LED on

Status line

Wheel

Save confirms

Esc quits

Edit mode active,
at least one
value changed

Í LED on

Í LED on

Status line

Wheel

Save confirms

Esc quits

Rotating knob

The rotating knob has two modes:

Edit mode inactive

All input fields are displayed one after the other.
The current input field is

highlighted.

Edit mode active

The relevant parameter (e.g. numeric value) in
the current input field (

highlighted) is changed.

To save space, the rotating knob is referred to simply as a
knob in the menus. The same applies to the rest of this
manual.
