ETC Alex M Alex MX User Manual
Page 44
Menu page 2: Parameters
The menu pages
– 44 –
Alex M
030430-150B
Alex_M_E_150C_A5.doc
Menu page 2: Parameters
This menu page shows the individual dimmer parameters for each channel
and allows you to modify them.

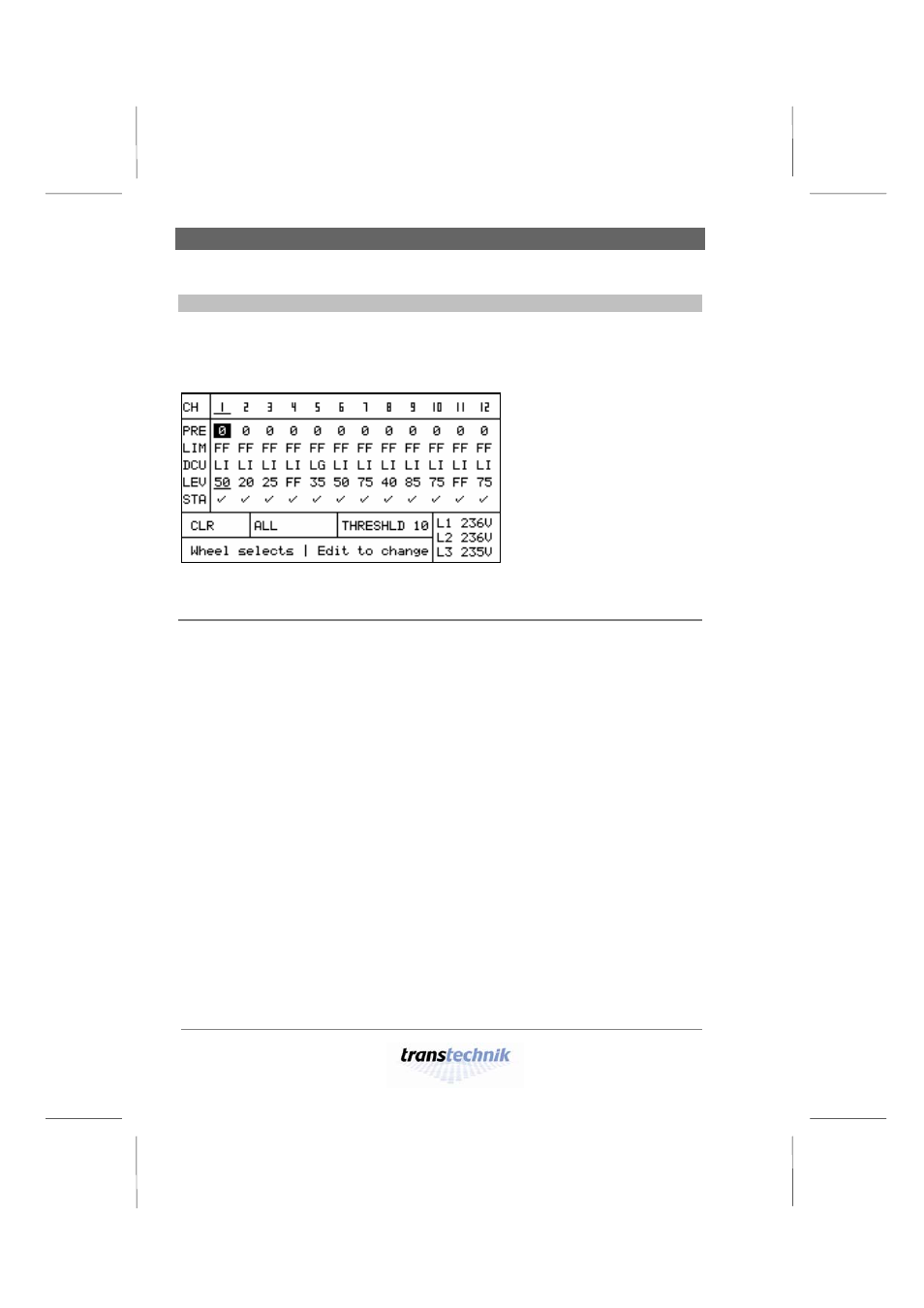

Fig. 30: Menu page 2,
Parameters, for a
configuration with 12 dim-
mers. When there are
6 dimmers, you will, of
course, only see six
channel-specific displays
(e.g. bars).
Input fields for each individual channel
PRE
Preheat for spotlights
Value range:
Factory setting:
0 to 30
All 0
LIM
Output level limit
Value range:
Factory setting:
30 to FF (30% to 100%)
All FF
DCU
Dimmer curve, possible settings:
LI
SC
EX
LG
- -
ND
Factory setting:
Linear
Halogen
Fluorescent lamps
Logarithmic
(not assigned)
Non-Dim (switched dimmer
curve)
All LI
Dimmer curves: see page 31.
