Setups

3-42

Xerox 4112/4127 EPS
System Administration Guide

3.

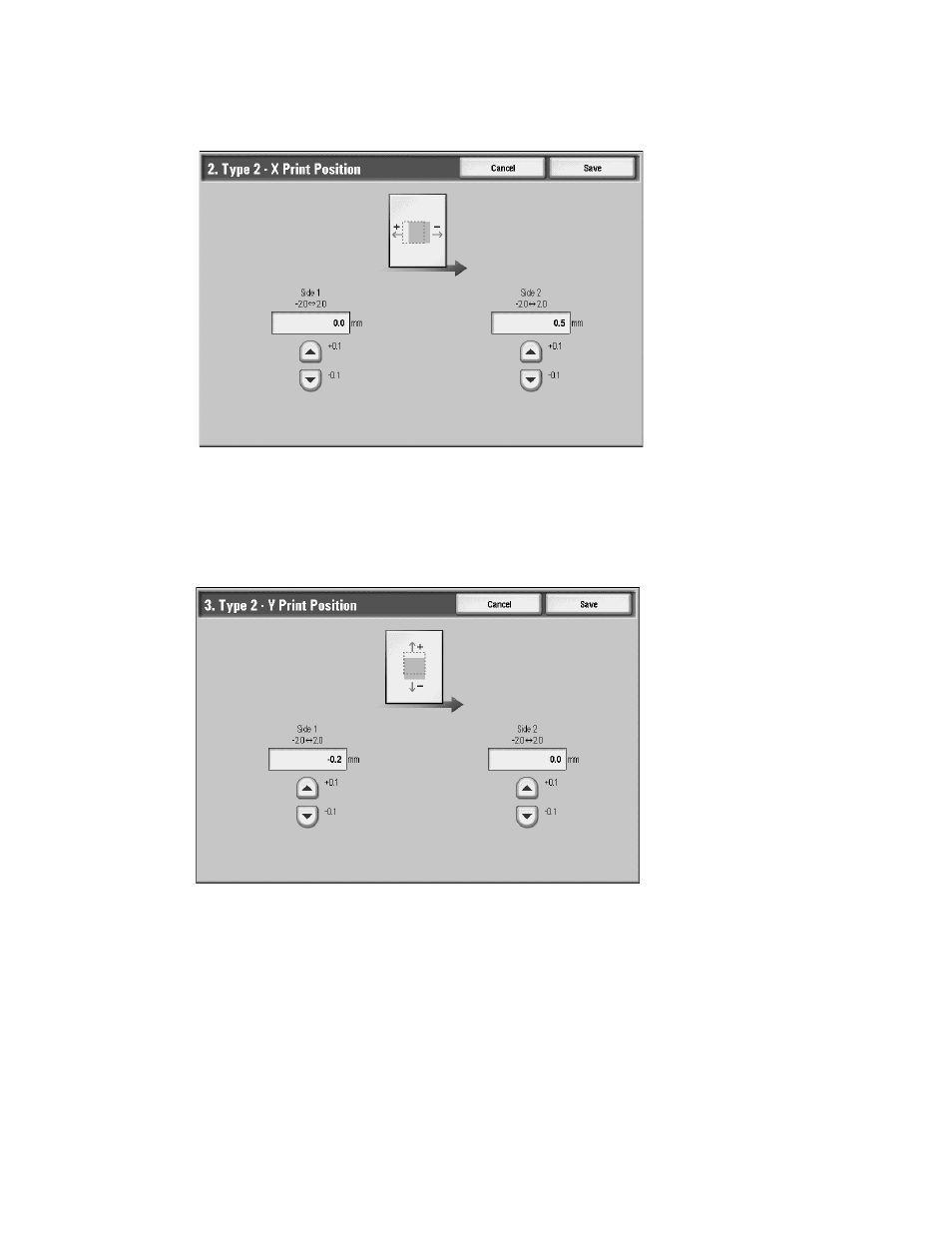

Enter the value obtained by the difference X measured in Step 1 added as the current
setting value of Side 1 and Side 2 of X Print Position.

Enter the value obtained by the difference Y measured in Step 1 added as the current
setting value of Side 1 and Side 2 of Y Print Position.

Note

X Print Position: Specify a positive value when you want to move the position of the image
in the opposite direction to the paper feed direction, and a negative value when you want
to move the position of the image in the paper feed direction.

Y Print Position: Specify a positive value when you want to move the position of the image
toward the back of the machine, and a negative value when you want to move the position
of the image toward the front of the machine.

4.

Press Save.
