DS851F2
49
CS42L56
4.9
Digital Interface Format
The serial port operates in standard I²S or Left-Justified digital interface formats with varying bit depths from
16 to 24. Data is clocked out of the ADC or into the DAC on the rising edge of SCLK.
illustrate
the general structure of each format. Refer to
“Switching Specifications - Serial Port” on page 23
for exact
timing relationship between clocks and data.
For additional information, application note AN282 presents a tutorial of the 2-channel serial audio interface.
AN282 can be downloaded from the Cirrus Logic web site at
4.10 Initialization
The CODEC enters a Power-Down state upon initial power-up. The interpolation and decimation filters, del-
ta-sigma modulators and control port registers are reset. The charge pump, LDO, internal voltage reference
and switched-capacitor low-pass filters are powered down. The device will remain in the Power-Down state
until the RESET pin is brought high. The control port is accessible once RESET is high and the desired reg-
ister settings can be loaded per the interface descriptions in the
“Register Description” on page 58
After the PDN bit is released and MCLK is valid, the quiescent voltage, VQ, and the internal voltage refer-
ence, FILT+, will begin powering up to normal operation. The charge pump slowly powers up and charges
the capacitors. Power is then applied to the headphone amplifiers and switched-capacitor filters, and the an-
alog/digital outputs enter a muted state. MCLK occurrences are counted over one LRCK period to determine
a valid MCLK/LRCK ratio and normal operation begins.
4.11 Recommended DAC to HP or Line Power Sequence
4.11.1 Power-Up Sequence
1. Hold RESET low until the power supplies are stable. Note: VA must be applied prior to VCP to
maintain the relationship specified in
“Recommended Operating Conditions” on page 14
should be held low for a minimum of 1 ms after power supplies are stable.
2. Apply MCLK at the appropriate frequency, as discussed in
. SCLK may be applied or set
to master at any time; LRCK may only be applied or set to master while the PDN bit is set to 1.
3. Bring RESET high.
LRCK
SCLK
M S B
L S B
M S B
L S B
AOUTA / AINxA
L eft C h a n n el
Rig ht C h a n n el
SDIN
AOUTB / AINxB
MSB

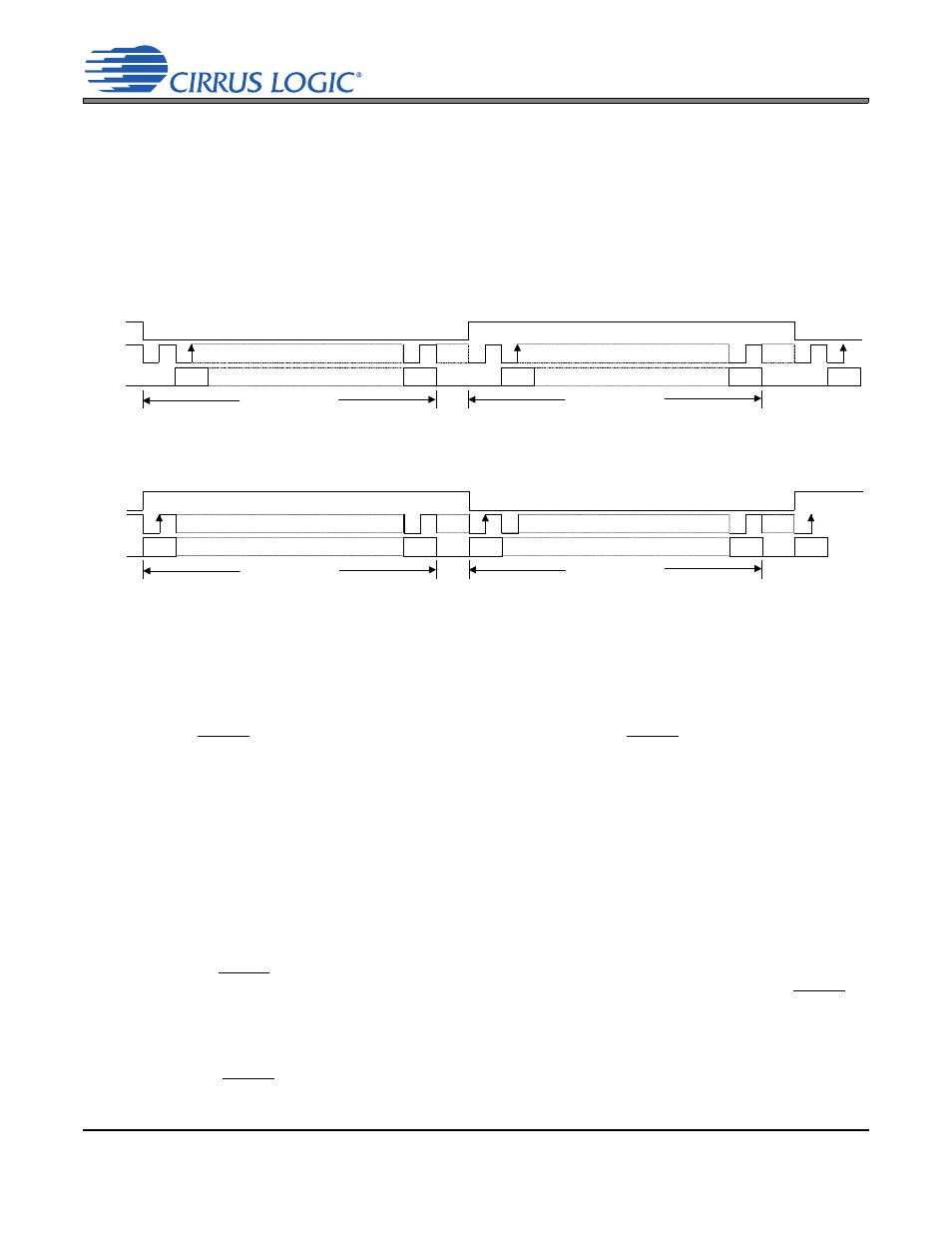

Figure 32. I²S Format
LRCK
SCLK
M S B
L S B
M S B
L S B
L eft C h a n n el
Rig ht C h a n n el
SDIN
MSB
AOUTA / AINxA
AOUTB / AINxB
Figure 33. Left-Justified Format
