Adc & dac digital filters, Figure 41. adc frequency response, Figure 42. adc stopband rejection – Cirrus Logic CS42L56 User Manual

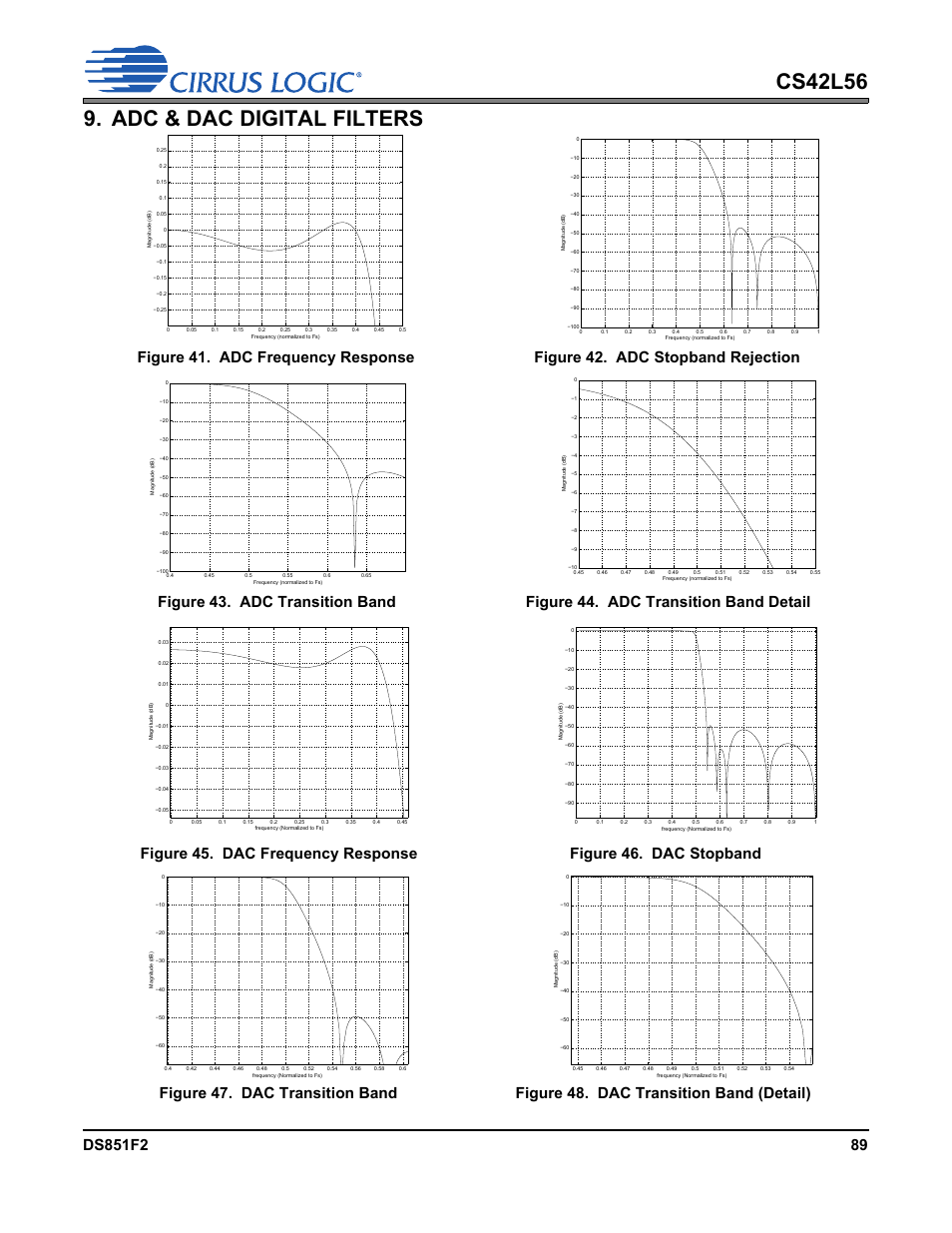

Page 89: Figure 43. adc transition band, Figure 44. adc transition band detail, Figure 45. dac frequency response, Figure 46. dac stopband, Figure 47. dac transition band, Figure 48. dac transition band (detail), Response plots

Adc & dac digital filters, Figure 41. adc frequency response, Figure 42. adc stopband rejection | Figure 43. adc transition band, Figure 44. adc transition band detail, Figure 45. dac frequency response, Figure 46. dac stopband, Figure 47. dac transition band, Figure 48. dac transition band (detail), Response plots | Cirrus Logic CS42L56 User Manual | Page 89 / 92 Adc & dac digital filters, Figure 41. adc frequency response, Figure 42. adc stopband rejection | Figure 43. adc transition band, Figure 44. adc transition band detail, Figure 45. dac frequency response, Figure 46. dac stopband, Figure 47. dac transition band, Figure 48. dac transition band (detail), Response plots | Cirrus Logic CS42L56 User Manual | Page 89 / 92
