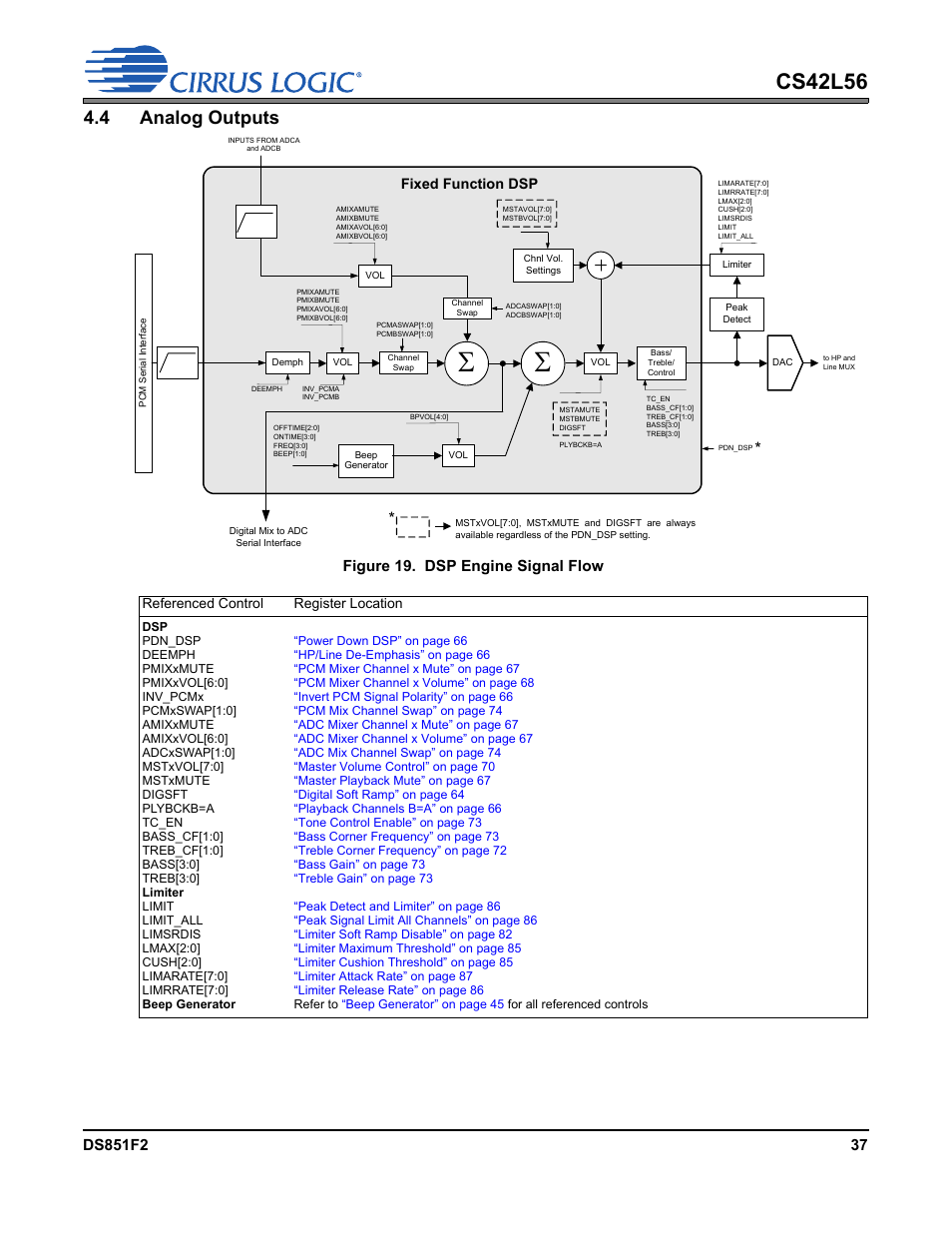

4 analog outputs, Figure 19. dsp engine signal flow, Figure 19.dsp engine signal flow – Cirrus Logic CS42L56 User Manual
Page 37: Cs42l56, Referenced control register location, Fixed function dsp
