3 microphone inputs, Figure 17. mic input mix w/common mode rejection, 4 optional vcm buffer – Cirrus Logic CS42L56 User Manual

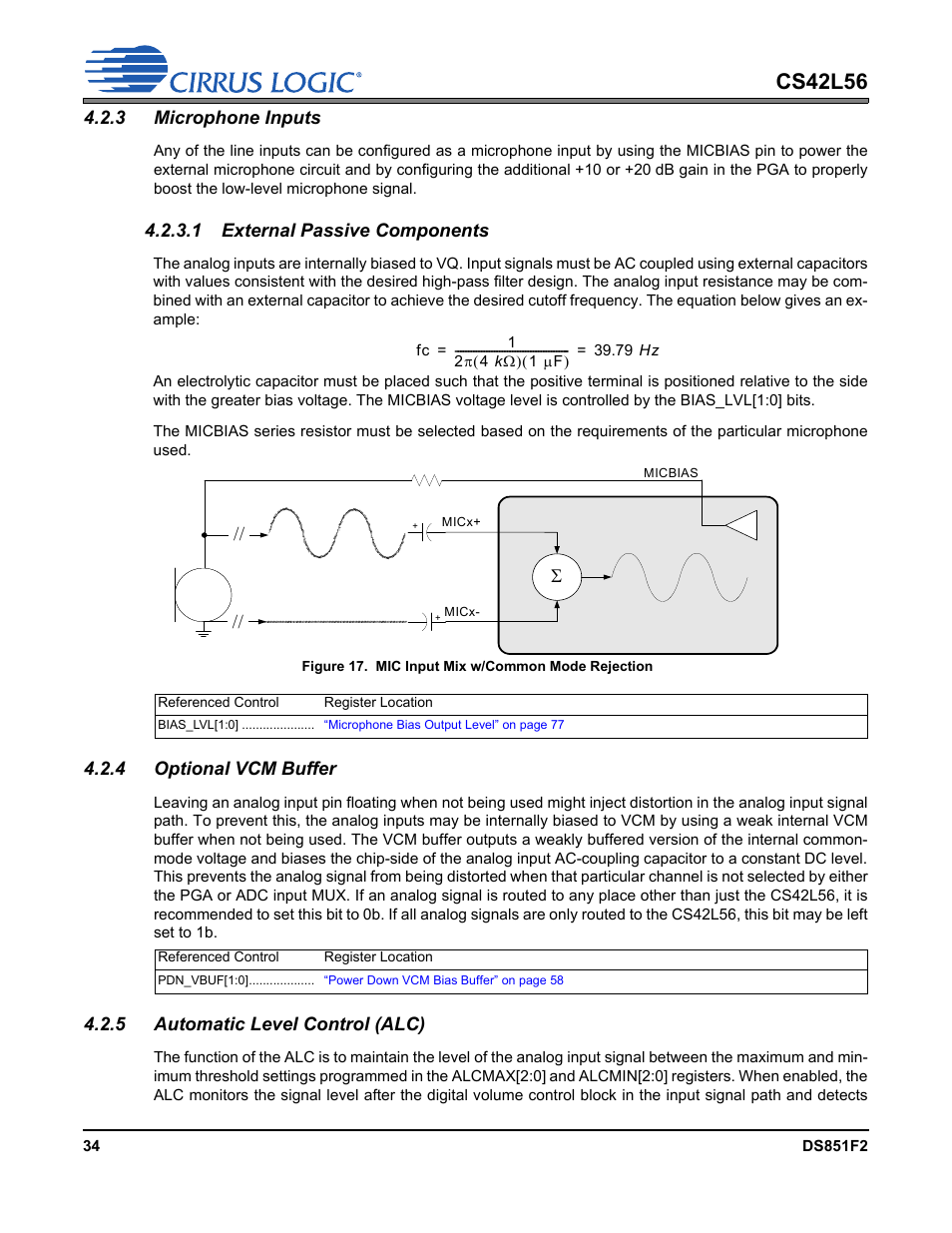

Page 34: 5 automatic level control (alc), 1 external passive components, Figure 17.mic input mix w/common mode rejection, Cs42l56
