7.6.2 Repeating
A Repeating Batch will start at a specified time and run for a specified duration. It will stop for a
specified period of time and then repeat the run time. This will continue indefinitely (refer to
Figure 19).
Any of the three batches can be specified as one time only or repeating.

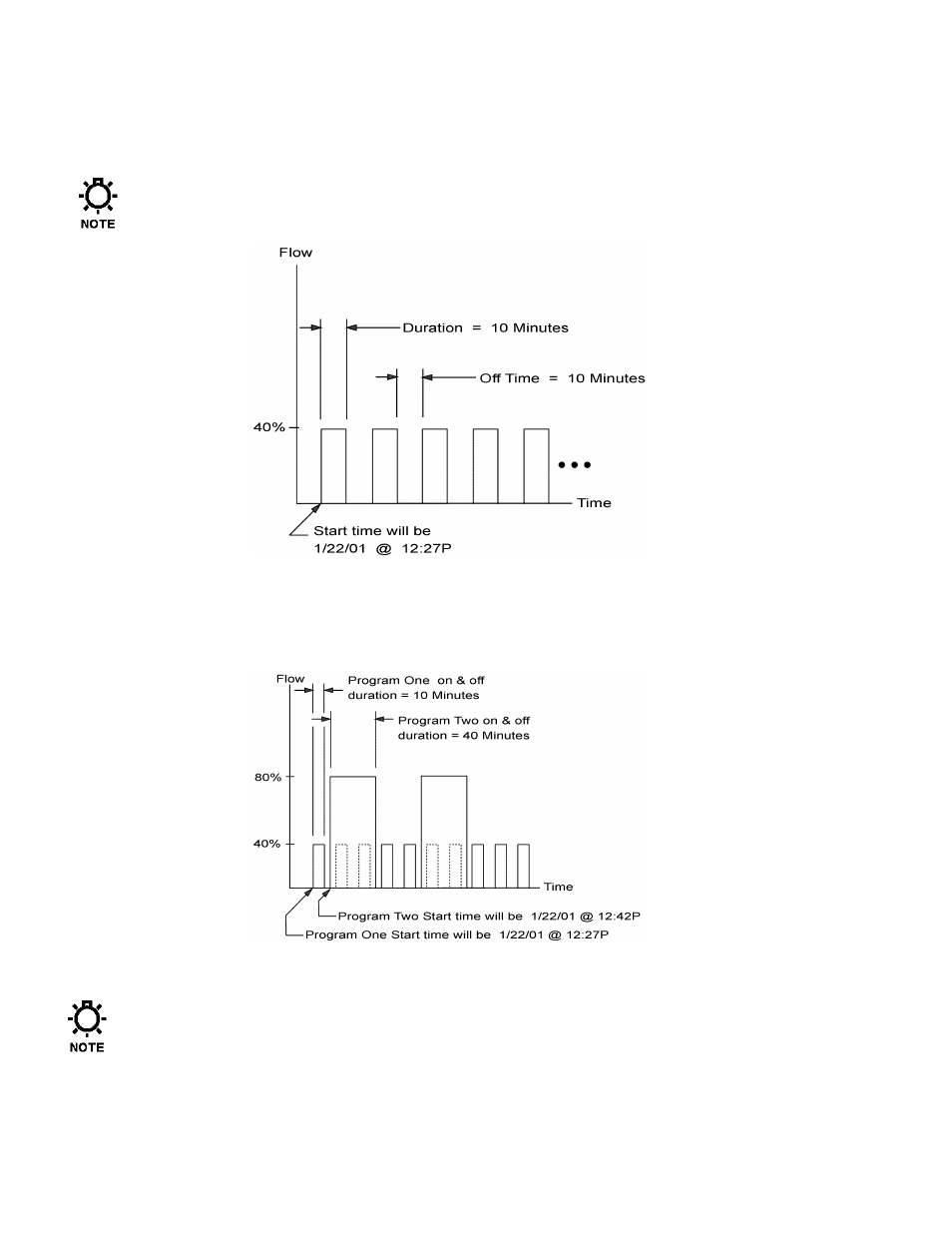

Figure 19. Repeating Batch.
7.6.3 Overlapped
The batches can also be overlapped (refer to Figure 20 below).
Figure 20 – Overlapping Batch.
When the batches are overlapped, the flow rates are NOT additive. The highest of the two or three
flow rates is used.
The DLC can make a 1% per second adjustment of pump stroke length. Remember that when a batch
starts, the DLC will require some amount of time to achieve the new stroke setting. The adjustment
time is taken as a portion of the batch running time. This will cause the output of the pump to be
skewed.
