97
7. Remove the four screws and Teflon Gaskets that retain the conduit adapter(refer to Figure 25).

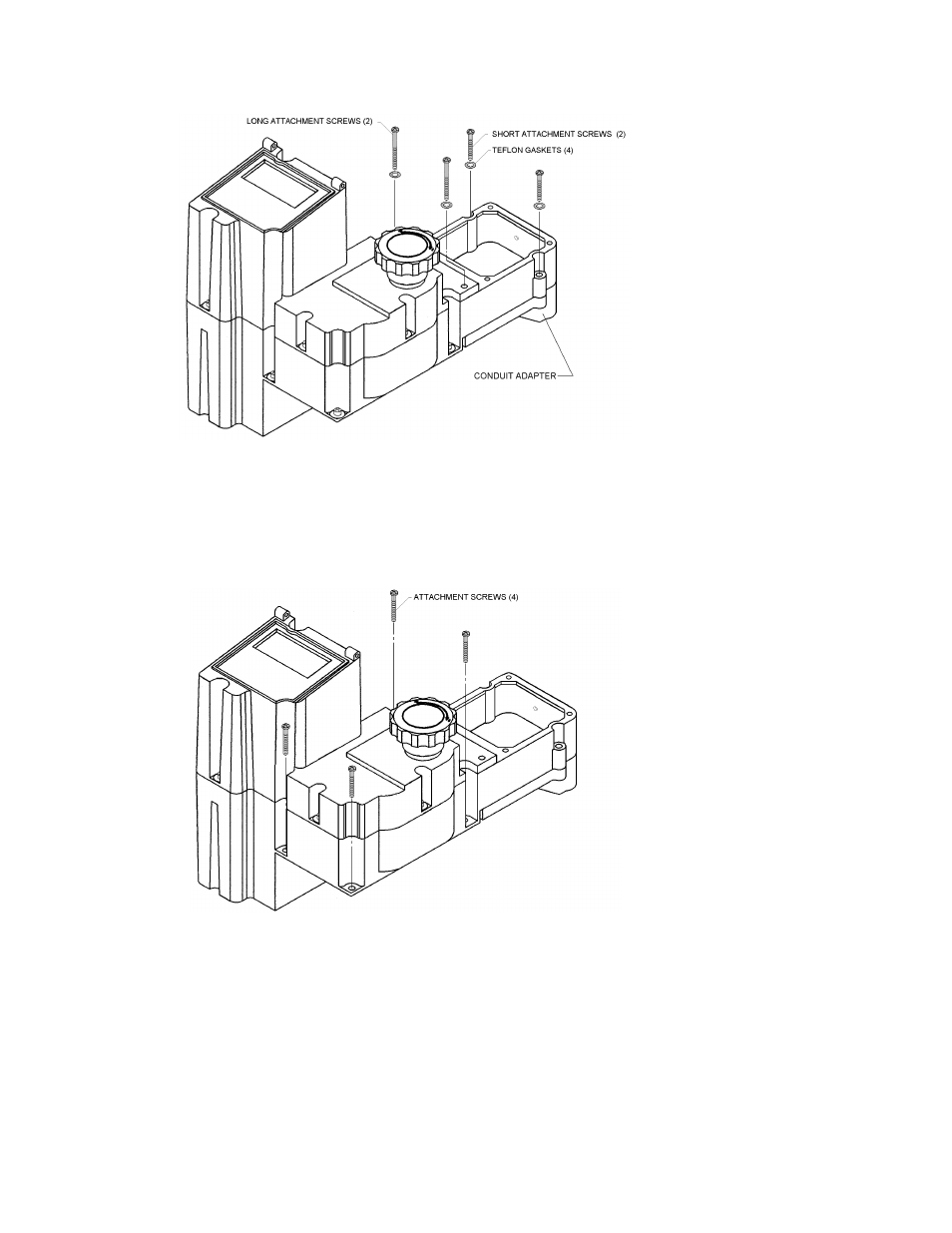

Figure 25 – Conduit Adapter Screw Removal
When removing the DLC in Step 8, the conduit adapter will stay with the wire and conduit. It plugs
into the bottom of the DLC. When lifting the DLC off the Conduit Adapter, it may be necessary to
have a second person hold the Adapter and associated conduit while the DLC is 'un-plugged' from it.
8. Remove the four screws that hold the DLC to the PULSAR gearbox (refer to Figure 26).
Figure 26 – DLC Removal for Replacement
9. Remove the DLC from the gear box by lifting vertically. Store it in the returnable packaging.
10. Bring the replacement DLC to the installation site.
If you are planning to re-wire the DLC during replacement, skip to step 12.
11. Remove the Conduit Adapter from the replacement DLC by performing step 7. Attach the conduit
adapter to the unit being returned.
