Chapter 3: Working with Line Cards and other Modules
92
Installing an
AT-CV5PNL2
Blank Slot Cover
The AT-CV5PNL2 blank slot cover is designed to cover any unoccupied
power supply module slots in the AT-CV5000 chassis model only.
To install an AT-CV5PNL2 blank slot cover, perform the following
procedure:
1. Remove the AT-CV5PNL2 blank slot cover from its shipping package
and store the package in a safe place.
Note
You must use the original package if you need to return the unit to
Allied Telesis.
2. Select the power supply slot in the AT-CV5000 chassis where you
want to install the blank slot cover.
3. Align the back edge of the blank slot cover with the alignment guides
located inside the slot.

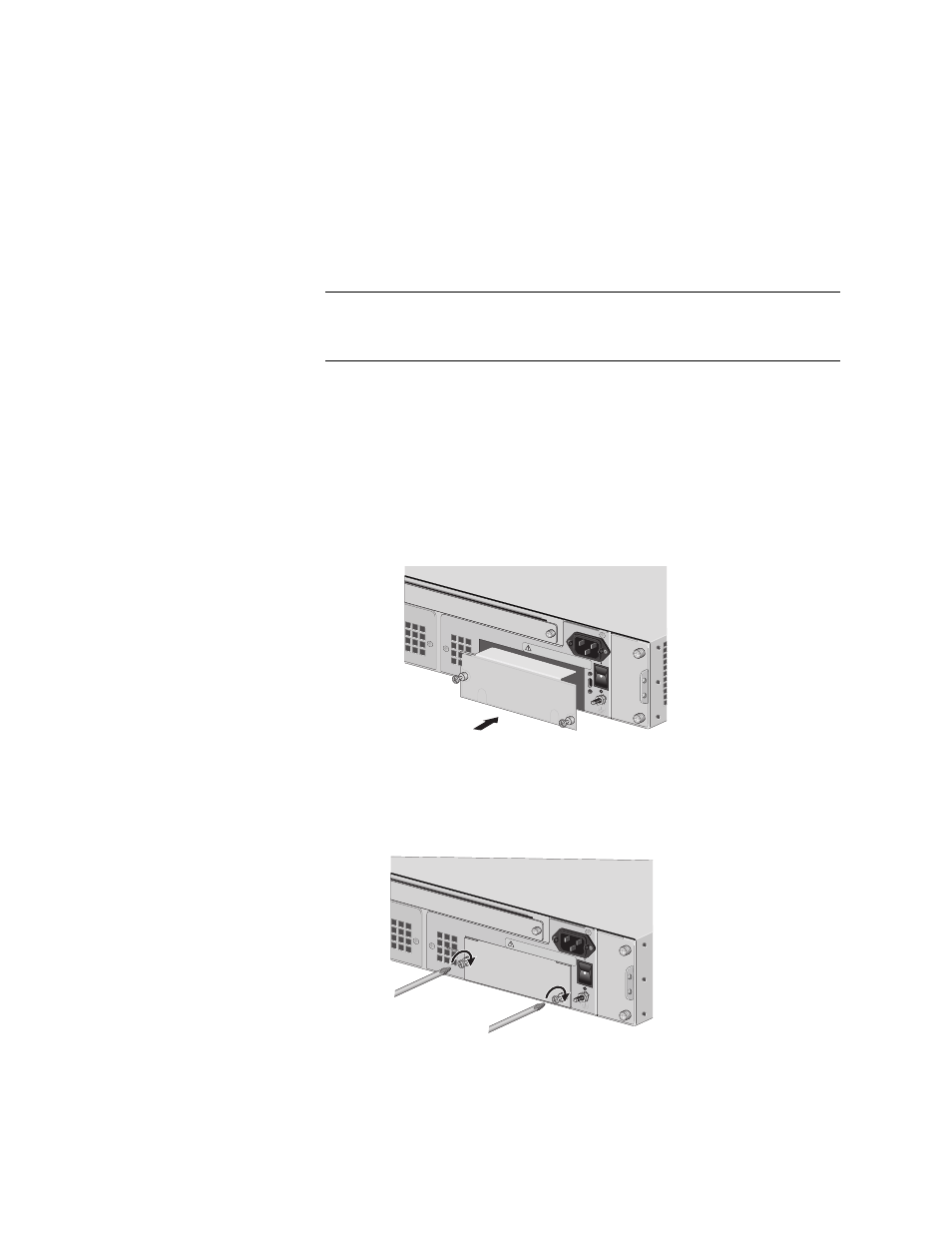

4. Slide the blank slot cover into the slot, as shown in Figure 68, until the
slot cover is flush with the front of the chassis.
Figure 68. Inserting an AT-CV5PNL2 Blank Slot Cover
5. Use a Phillips screwdriver to tighten the captive screws, as shown in
Figure 69.
Figure 69. Tightening the Captive Screws on an AT-CV5PNL2
