AT-CV5000 Media Converter Chassis Installation Guide
61

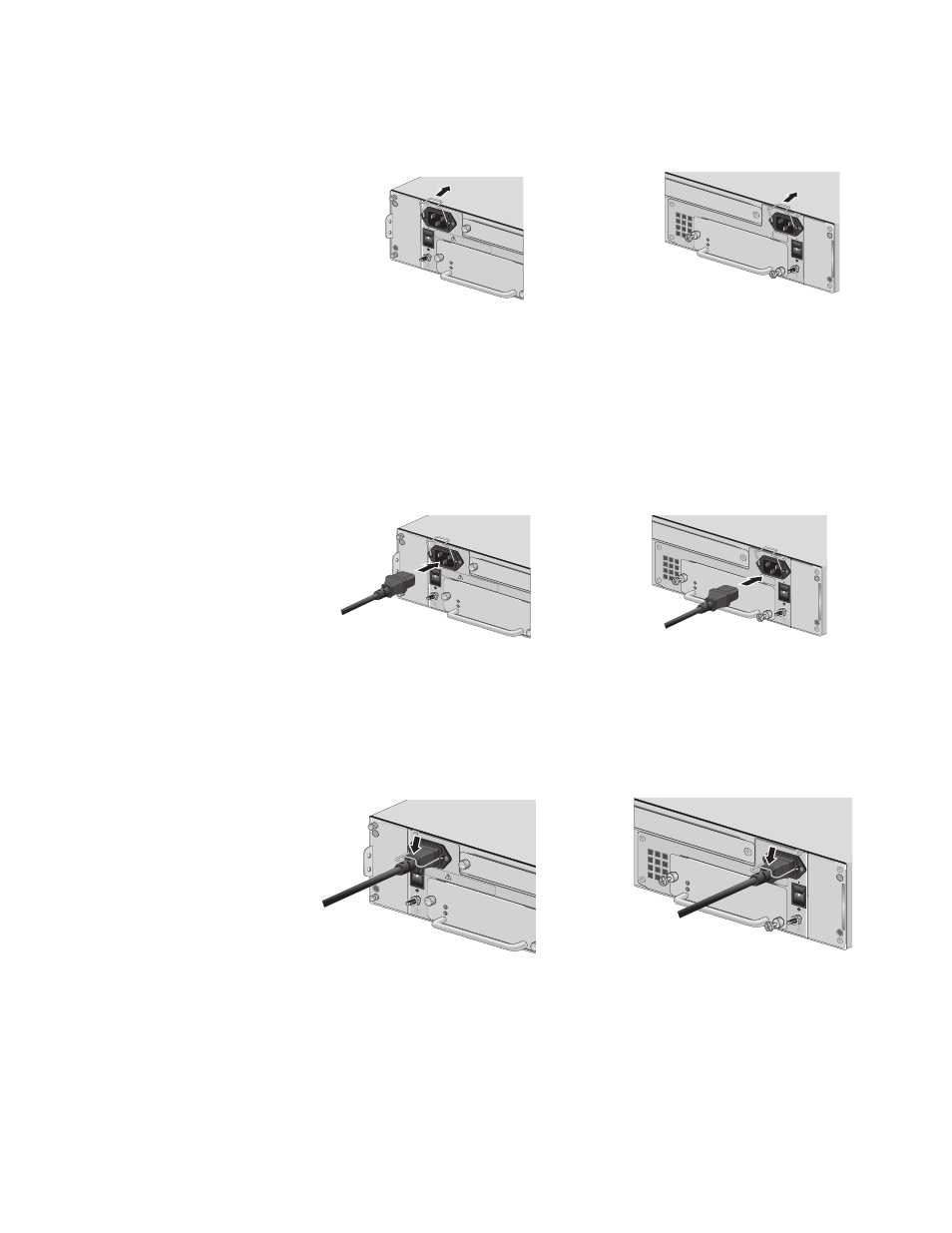

2. Position the power cord retaining clip in the up position, as shown in
Figure 37. Power Cord Retaining Clip in the Up Position
3. Select the power plug that is correct for your region: North America,
UK, Europe, or Australia.
4. Plug the power cord into the AC power connector on the rear of the
chassis, as shown in Figure 38.
Figure 38. Connecting the AC Power Cord
5. Secure the cord by lowering the power cord retaining clip, as shown in
Figure 39. Securing the Power Cord with the Retaining Clip
