Chapter 1: Overview
24
AT-CV5M01 Management Card
The AT-CV5M01 Management Card provides a CPU subsystem for the
AT-CV5000 chassis as well as the AT-S70 management software
preinstalled that allows you to configure and monitor the status of the
converter line cards. For more information about the AT-S70 management
software, refer to the AT-S70 Management Software User’s Guide.
The AT-CV5000 chassis is shipped without an AT-CV5M01 Management
Card and therefore is by default an unmanaged chassis.
Note
The AT-CV5M01 Management Card is hot-swappable and you can
insert it in any line card slot without powering OFF the chassis.

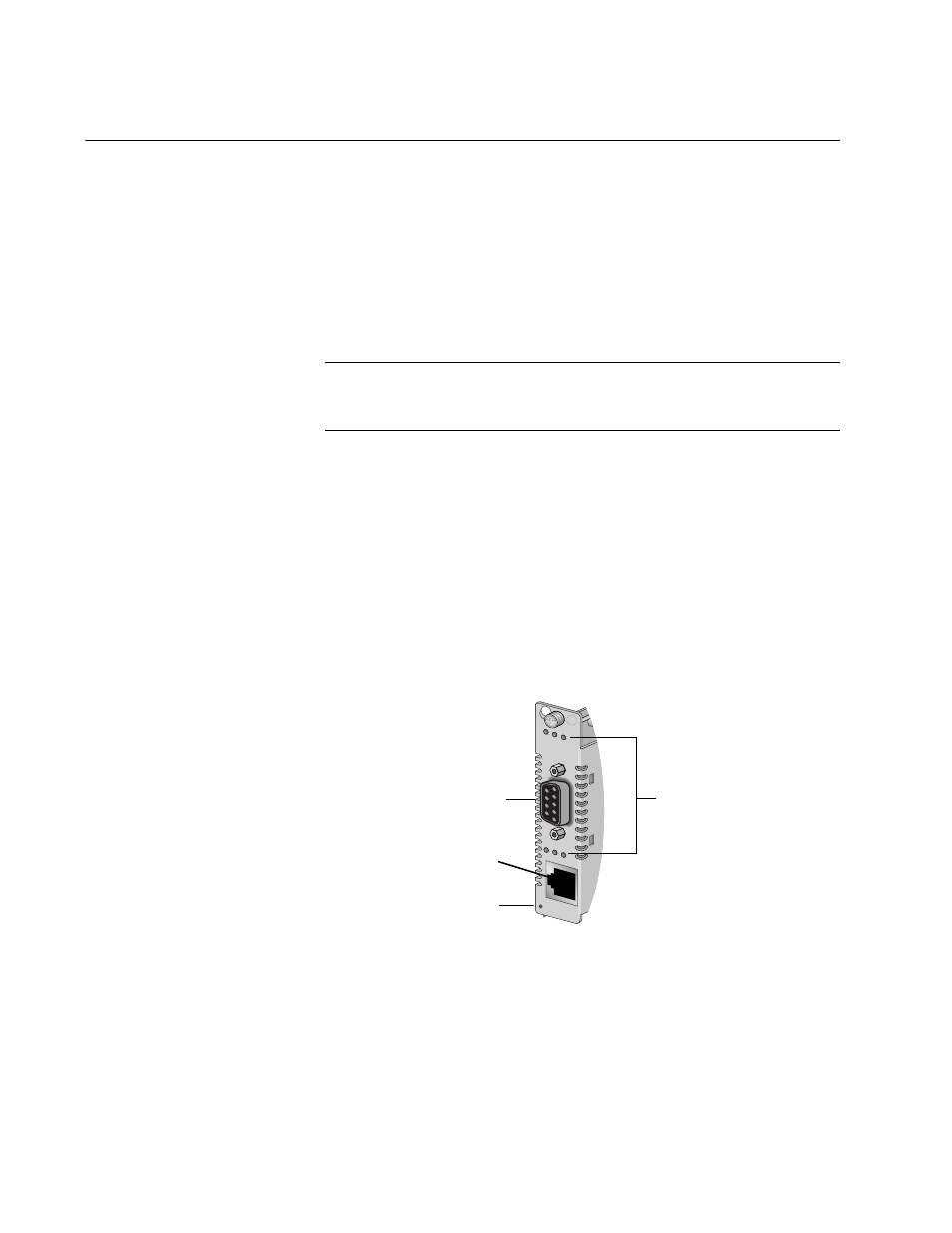

The AT-CV5M01 Management Card, as shown in Figure 6, features the
following components:
ˆ One RS-232 terminal port with a DB-9 connector for a local
management session
ˆ One 10/100Base-TX twisted pair port with an RJ-45 connector for a
remote management session
ˆ One recessed CPU RESET button
ˆ Six CPU status LEDs
Figure 6. AT-CV5M01 Management Card Components
RS-232 Terminal
Port
The default settings for the RS-232 terminal port are:
ˆ Baud rate: 115200 bps (range 2400 to 115200 bps)
ˆ Data bits: 8
258
AT-CV5M01
PWR RD
Y FL T
CPU RESET
LK A T FD
10/100Base-TX Twisted Pair Port
Recessed CPU RESET Button
LEDs RS-232 Terminal Port
