7. Slide the blank slot cover into the slot, as shown in Figure 66, until the
slot cover is flush with the front of the chassis.

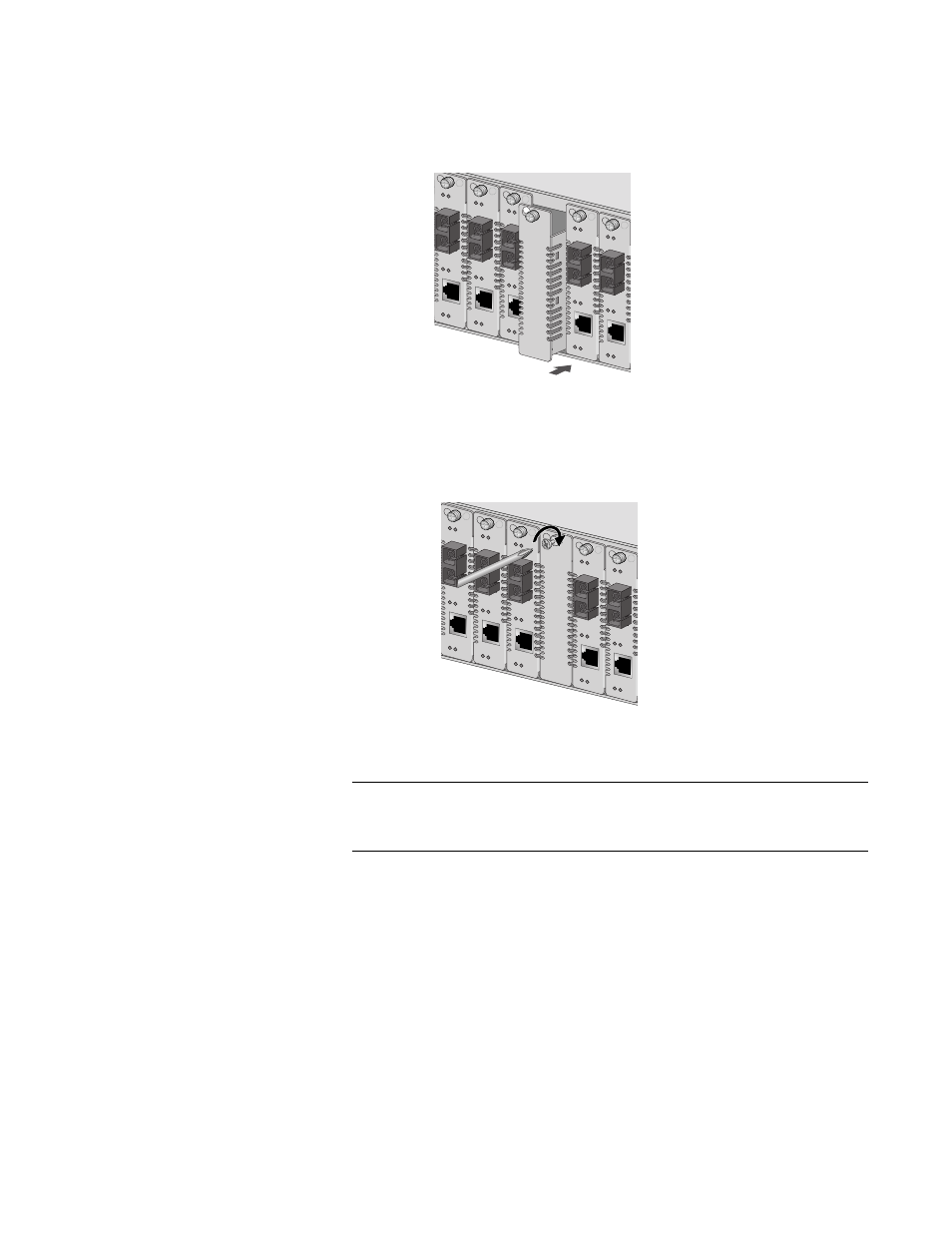

Figure 66. Inserting an AT-CV5PNL1 Blank Slot Cover
8. Use a Phillips screwdriver to tighten the captive screw, as shown in
Figure 67.
Figure 67. Tightening the Captive Screw on an AT-CV5PNL1
Note
Always tighten the captive screw to secure the blank slot cover to
the chassis.
9. Repeat this procedure to install additional AT-CV5PNL1 blank slot
covers.
