Appendix A: Technical Specifications
104
RS-232 Terminal Port Pinouts

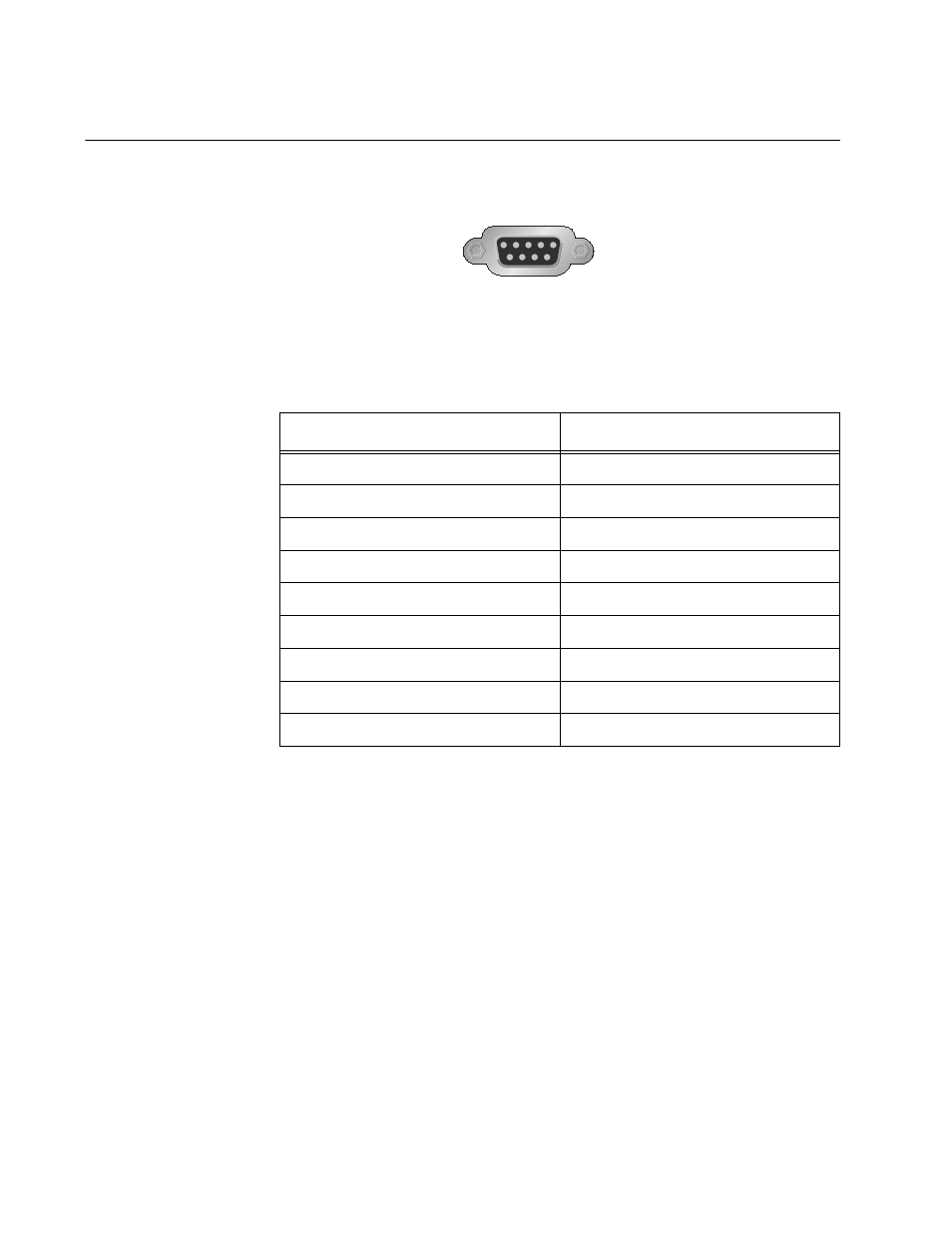

Figure 72 illustrates the pin layout to an RS-232 terminal port.
Figure 73. RS-232 Terminal Port Pinouts
Table 5 lists the pin signals on the RS-232 Terminal Port.
Table 5. RS-232 Terminal Port Pin Signals
Pin Signal
1 Data Carrier Detect
2 Transmit Data
3 Receive Data
4 Data Set Ready
5 Ground
6 Data Terminal Ready
7 Clear to Send
8 Request to Send
9 Ring Indicator
