Chapter 2: Installation
54
8. Use a Phillips screwdriver to tighten the captive screw on the line card,
as shown in Figure 26.

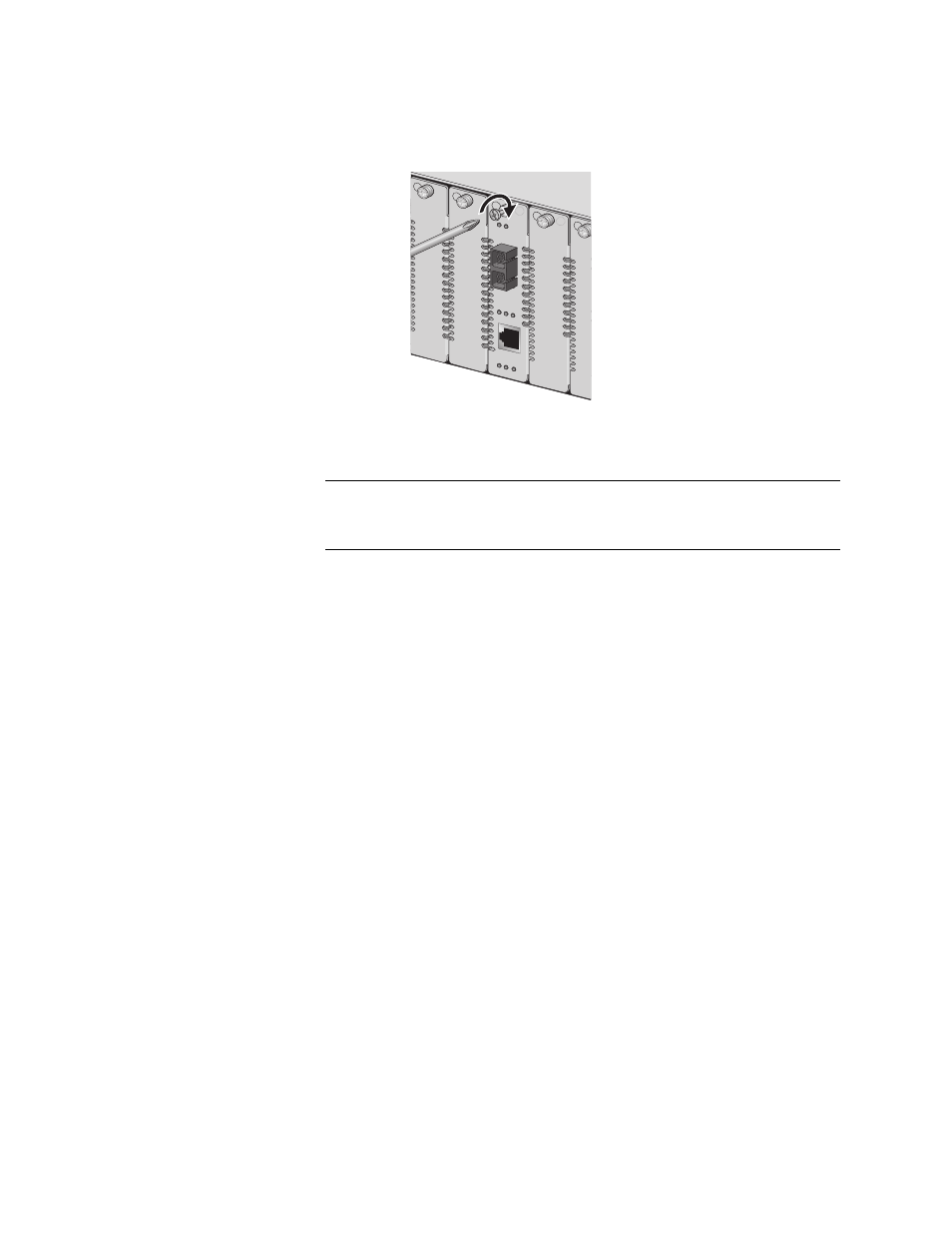

Figure 26. Tightening the Captive Screw
Note
Always tighten the captive screw to secure the line card to the
chassis.
If you purchased an AT-CV5M01 Management Card for the chassis,
go to “Working with the AT-CV5M01 Management Card” on page 76. If
you purchased additional line cards, repeat this procedure to install the
card. Otherwise, go to “Cabling a Converteon™ Line Card in an
AT-CV5000 Chassis” on page 55.
