AT-CV5000 Media Converter Chassis Installation Guide
67
Starting a Local Management Session
The procedure in this section explains how to start a local management
session using the RS-232 terminal port on an AT-CV5M01 Management
Card or the 8-pin Mini-DIN port on an AT-CM70S line card installed in the
chassis.
Note
If an AT-CM70S line card is installed in an AT-CV5000 chassis, you
can manage the card either through its console port or through the
AT-CV5M01 Management Card.
Note
Only one manager can log in at a time.
To start a local management session using the RS-232 terminal port on an
AT-CV5M01 Management Card or the 8-pin Mini-DIN on an AT-CM70S
line card, perform the following procedure:
1. Do one of the following:
a. Connect one end of the RS-232 straight-through management
cable to the RS-232 terminal port on the front of the AT-CV5M01
Management Card, as shown in Figure 44.

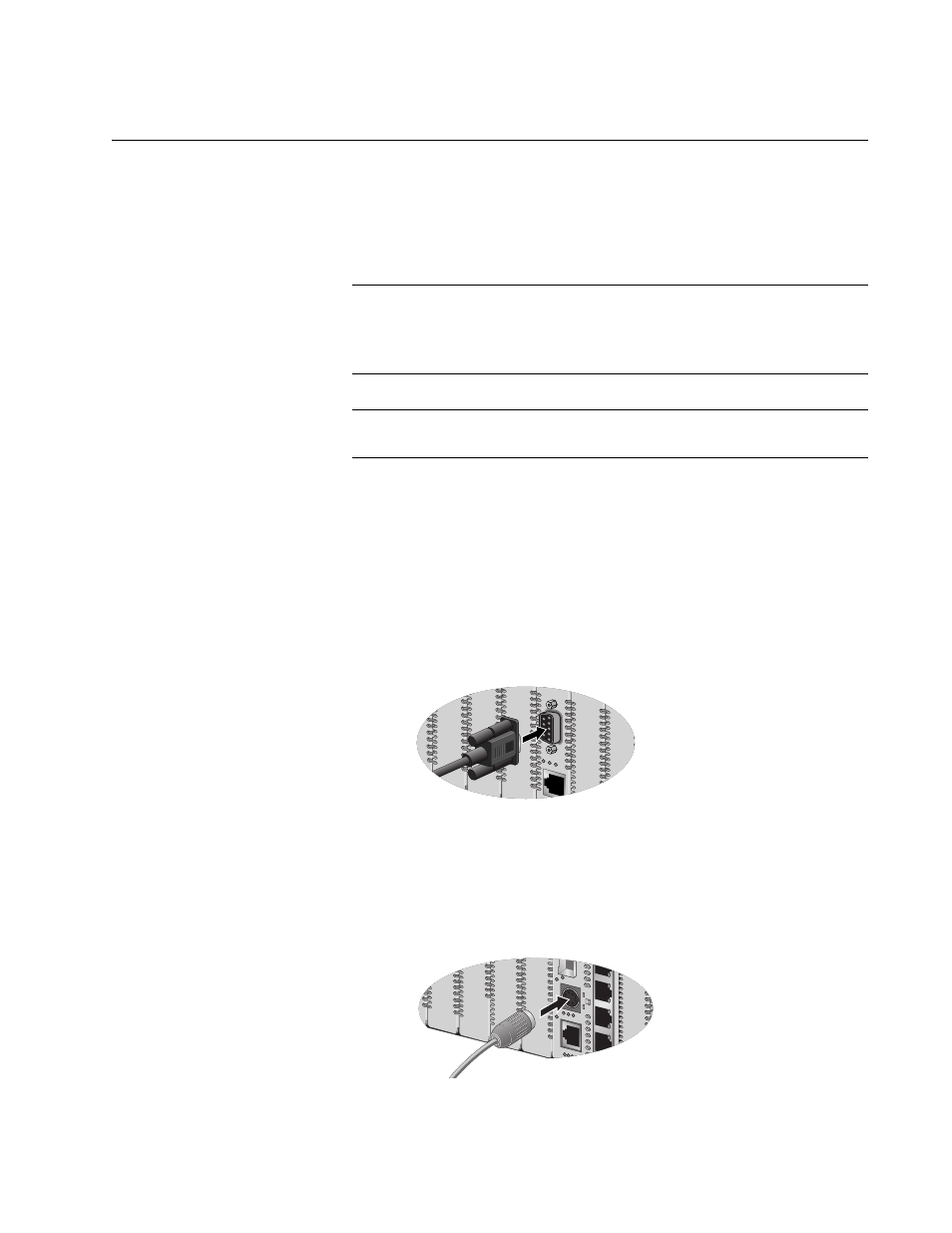

Figure 44. Connecting a Management Cable to the RS-232 Terminal Port
on an AT-CV5M01 Management Card
b. Connect the 8-pin Mini-DIN end of the management cable to the
RS-232 console port on the front of the AT-CM70S line card, as
shown in Figure 45 on page 67.
Figure 45. Connecting a Management Cable to the RS-232 Console Port
244
T
LK A T F D
F
P
CPU RESET
C
O
N
S
O
L
E
L/A FD 100
2
AIS 1 2
4
3
LOTC NML
1
RCL NML
T
X
RDY
910
