Chapter 3: Working with Line Cards and other Modules
74
Removing a Converteon™ Line Card
To remove a Converteon™ line card, perform the following procedure:
Caution
Be sure to observe all standard electrostatic discharge (ESD)
precautions, such as wearing an antistatic wrist strap, to avoid
damaging the device. A line card can be damaged by static
electricity.
1. Select the line card in the AT-CV5000 chassis you want to remove.
2. Using a Phillips screwdriver, loosen the captive screws at the top of
the installed line card.

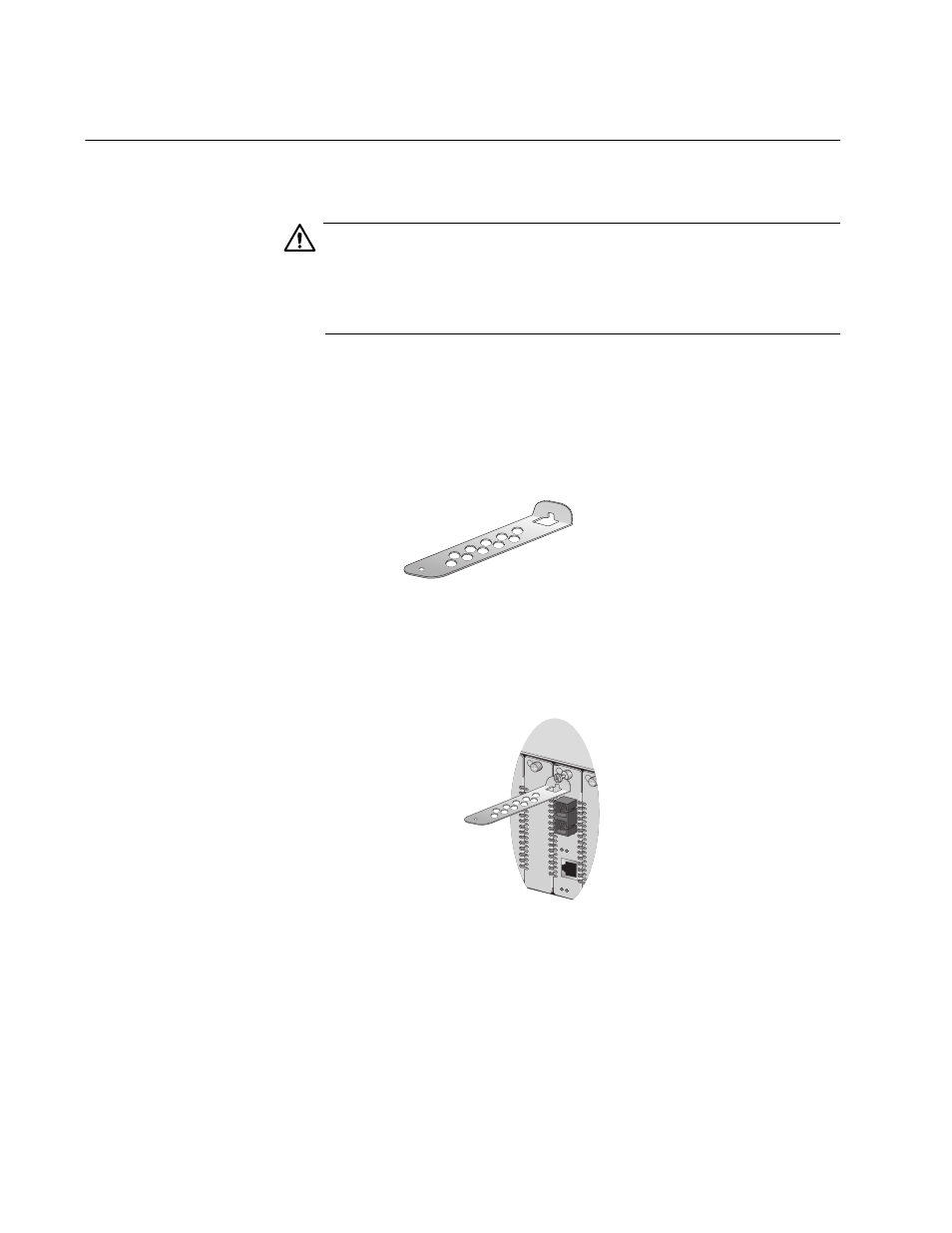

3. Locate the line card removal tool, as shown in Figure 48.
Figure 48. Line Card Removal Tool
4. Hook the slot at the end of the removal tool onto the captive screw at
the top of the line card, and pull towards you to remove the card from
the chassis, as shown in Figure 49.
Figure 49. Removing a Line Card from an AT-CV5000 Chassis
5. Install an AT-CV5PNL1 blank slot cover in the empty slot, as described
in “Installing an AT-CV5PNL1 Blank Slot Cover” on page 90.
