AT-CV5000 Media Converter Chassis Installation Guide
105
8-Pin Mini-DIN Console Port Pinouts

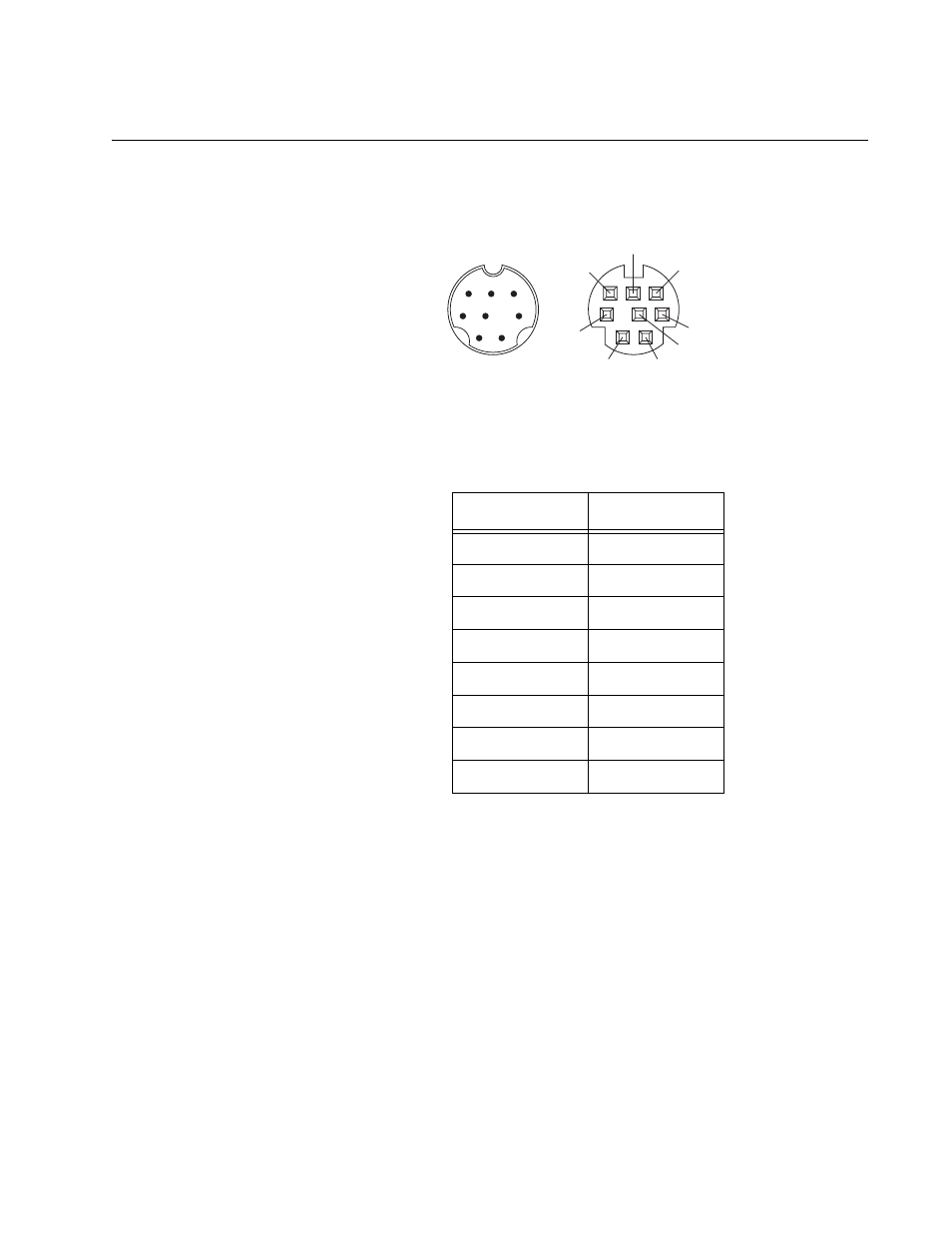

Figure 74 illustrates the pin layout of the 8-Pin Mini-DIN console port and
connector.
Figure 74. 8-Pin Mini-DIN Console Port and Connector Pin Layouts
Table 6 lists the definitions for the 8-Pin Mini-DIN console port pinouts.
1 2
3 4 5
6 7 8
2 1
3
4
5
6
7
8
158
Table 6. 8-Pin Mini-DIN Console Port Pinouts
Pin Signal
1 NC
2 DTR
3 TX
4 RX
5 DSR
6 GND
7 RTS
8 CTS
