AT-CV5000 Media Converter Chassis Installation Guide
57
5. When the connection is established, the LK LED for the fiber optic port
should show green. If the LED is OFF, refer to “Troubleshooting” on
page 95 for instructions.
Cabling a Simplex SC Connector
To connect a fiber optic cable to a simplex SC connectors, perform the
following procedure:
Remove the dust cover from the simplex fiber optic port, as shown in
Figure 30.

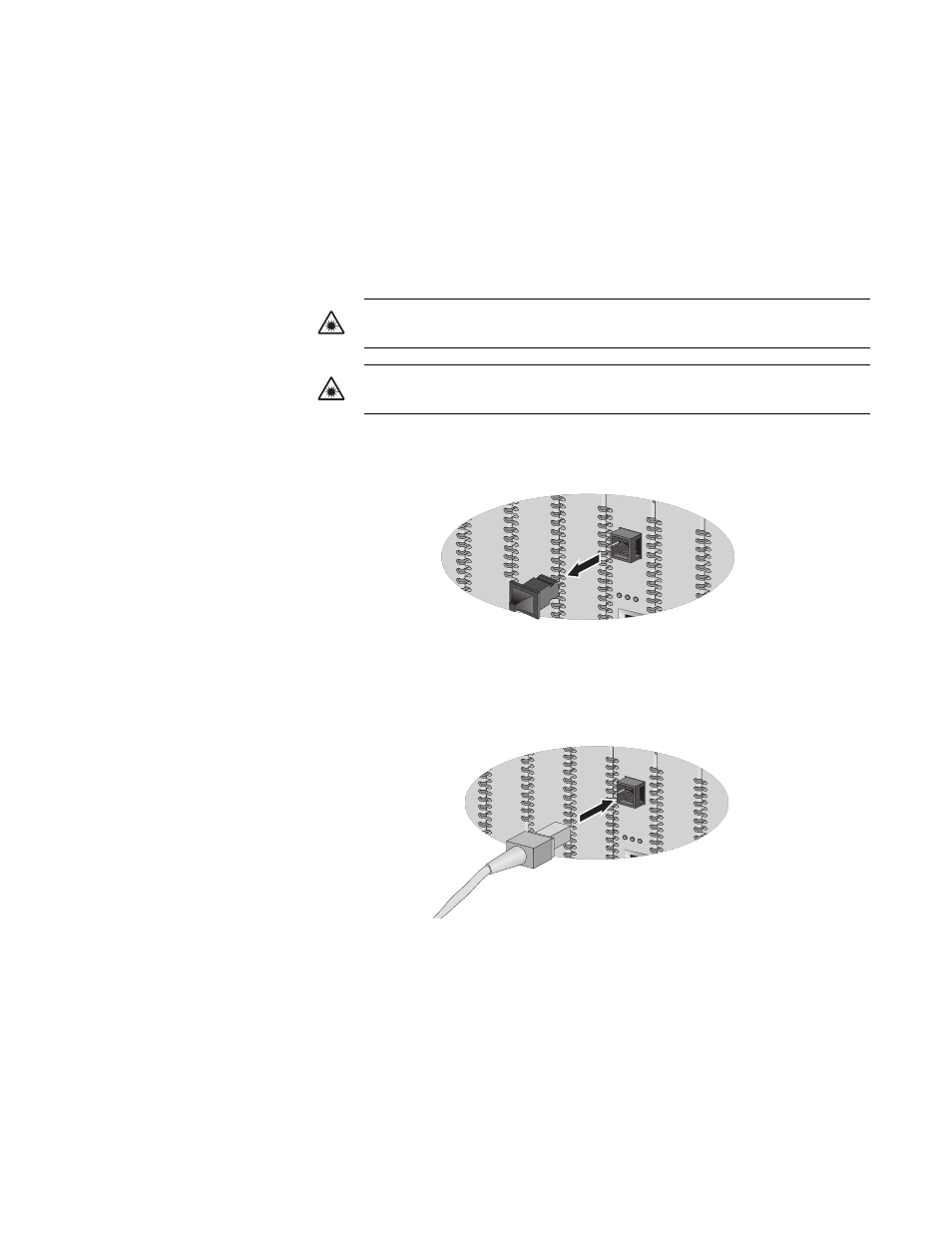

Figure 30. Removing the Dust Cover from a Simplex SC Fiber Optic Port
6. Connect the appropriate optical cable to the port, as shown in
Figure 31.
Figure 31. Connecting to the Simplex SC Fiber Optic Port
7. Connect the other end of the optical cable to the link partner.
8. Power ON the end nodes.
9. When the connection is established, the LK LED for the fiber optic port
should show green. If the LED is OFF, refer to “Troubleshooting” on
page 95 for instructions.
Warning: Class 1 Laser product. L1
Warning: Do not stare into the laser beam. L2
587
LK AT
T
LK AT FD
581
LK AT
T
LK AT FD
