AT-CV5000 Media Converter Chassis Installation Guide
53
5. Locate the top and bottom alignment guides inside the line card slots,
as shown in Figure 24.

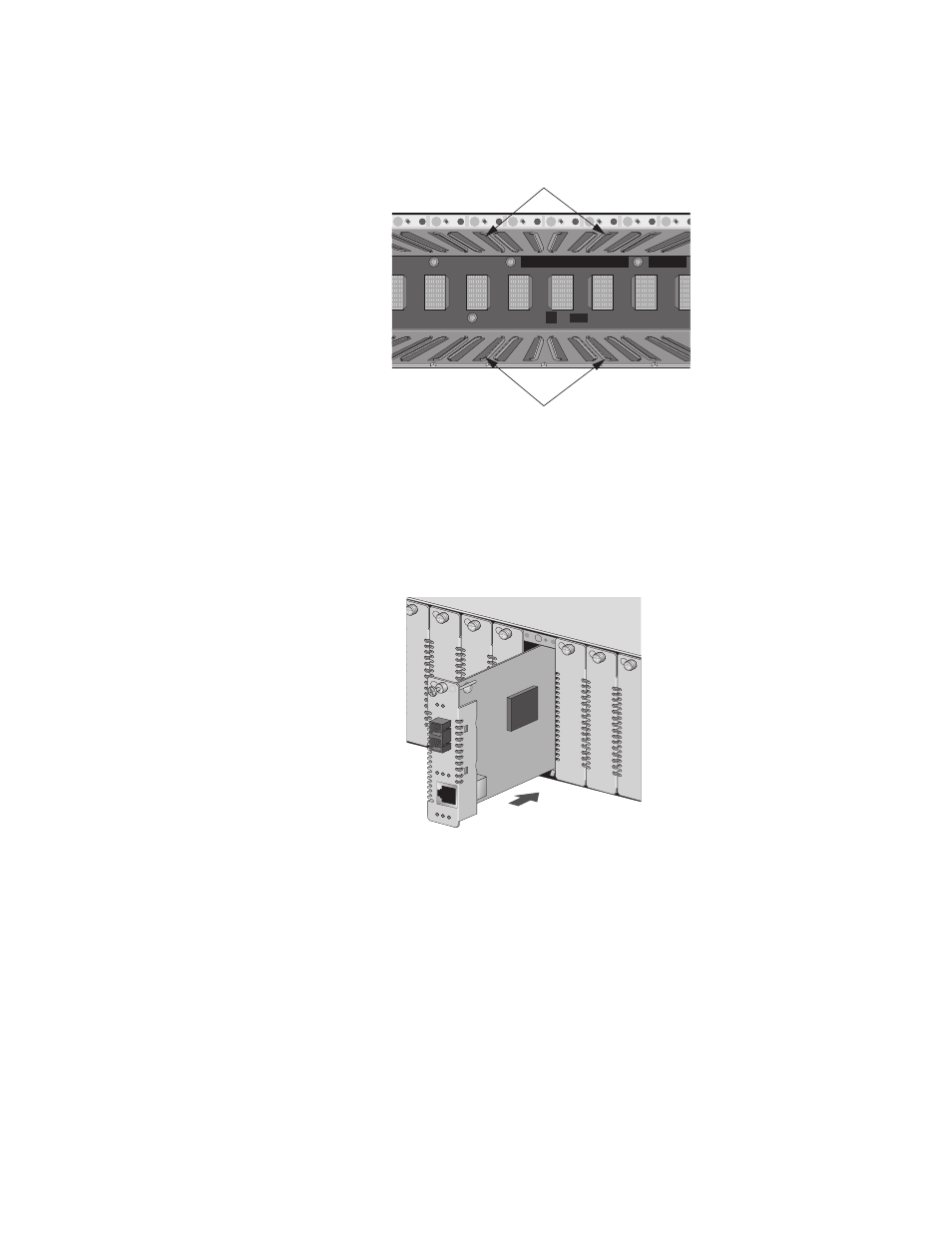

Figure 24. Location of the Alignment Guides
6. Align the line card with the top and bottom alignment guides located
inside the slot.
7. Slide the line card into the slot, as shown in Figure 25, until the slot
cover is flush with the front of the chassis.
Figure 25. Inserting a Line Card
7 8 6 9 10 11 12 13
290
Alignment Guides
Alignment Guides
7
8
9
10
247
AT-CM
202
LK AT
T
X
SML ML
RDY
LK AT FD
T
X
M
M
R
X
OAM
