Chapter 2: Installation
58
Cabling a
Twisted Pair Port
When you connect a twisted pair cable to a port, observe the following
guidelines:
An RJ-45 connector should fit snugly into the port on the converter.
The tab on the connector should lock the connector into place.
You can use a straight-through or crossover twisted pair cable to
connect any type of network device to a port on the converter.
To connect to the 10/100Base-TX port, perform the following procedure:

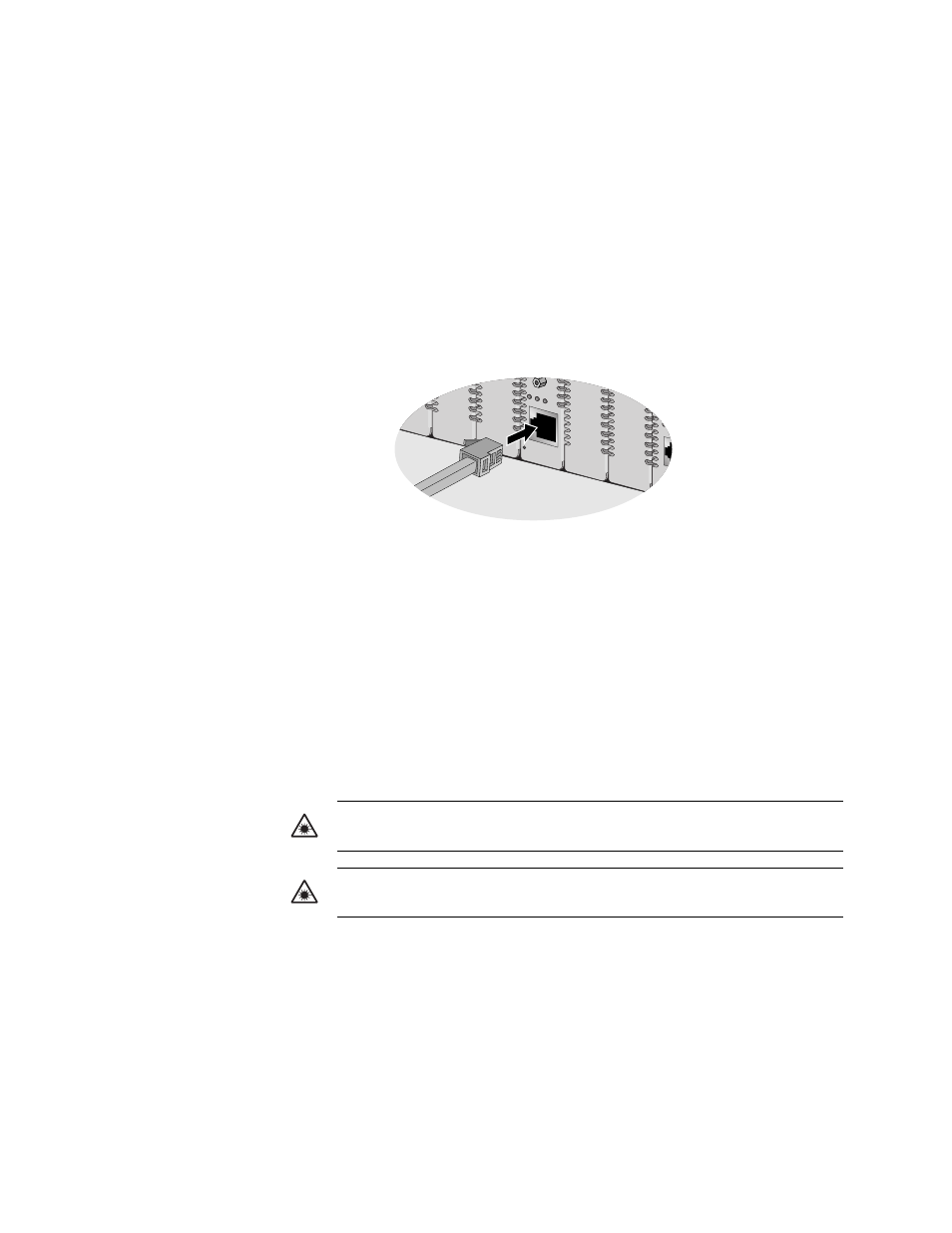

1. Connect the twisted pair cable to the twisted pair port, as shown in
Figure 32. Connecting to the Twisted Pair Port
2. Connect the other end of the RJ-45 cable to the link partner.
3. Power ON the end nodes.
When the connection is established, the LK LED for the 10/100Base-
TX port should show green. If the LED is OFF, refer to
“Troubleshooting” on page 95 for instructions.
Cabling an SFP
Transceiver
To connect a fiber optic cable to an SFP transceiver, perform the following
procedure:
1. Insert the SFP transceiver into the SFP slot on the line card, as shown
245
T
X
ML/SML
F
RDY
LK
A
CPU RESET
LK A
T FD
Warning: Class 1 Laser product.
L1
Warning: Do not stare into the laser beam.
L2
