Allied Telesis SwitchBlade x8106 User Manual
Page 94
Chapter 4: Installing the Power Supplies
94
4. Check the power supply for its model name, shown in Figure 49, to
verify the module.
If the module is the AT-SBxPWRPOE1 PoE Power Supply, do not
continue with this procedure. Instead, perform “Installing the AT-
SBxPWRPOE1 PoE Power Supply” on page 97.

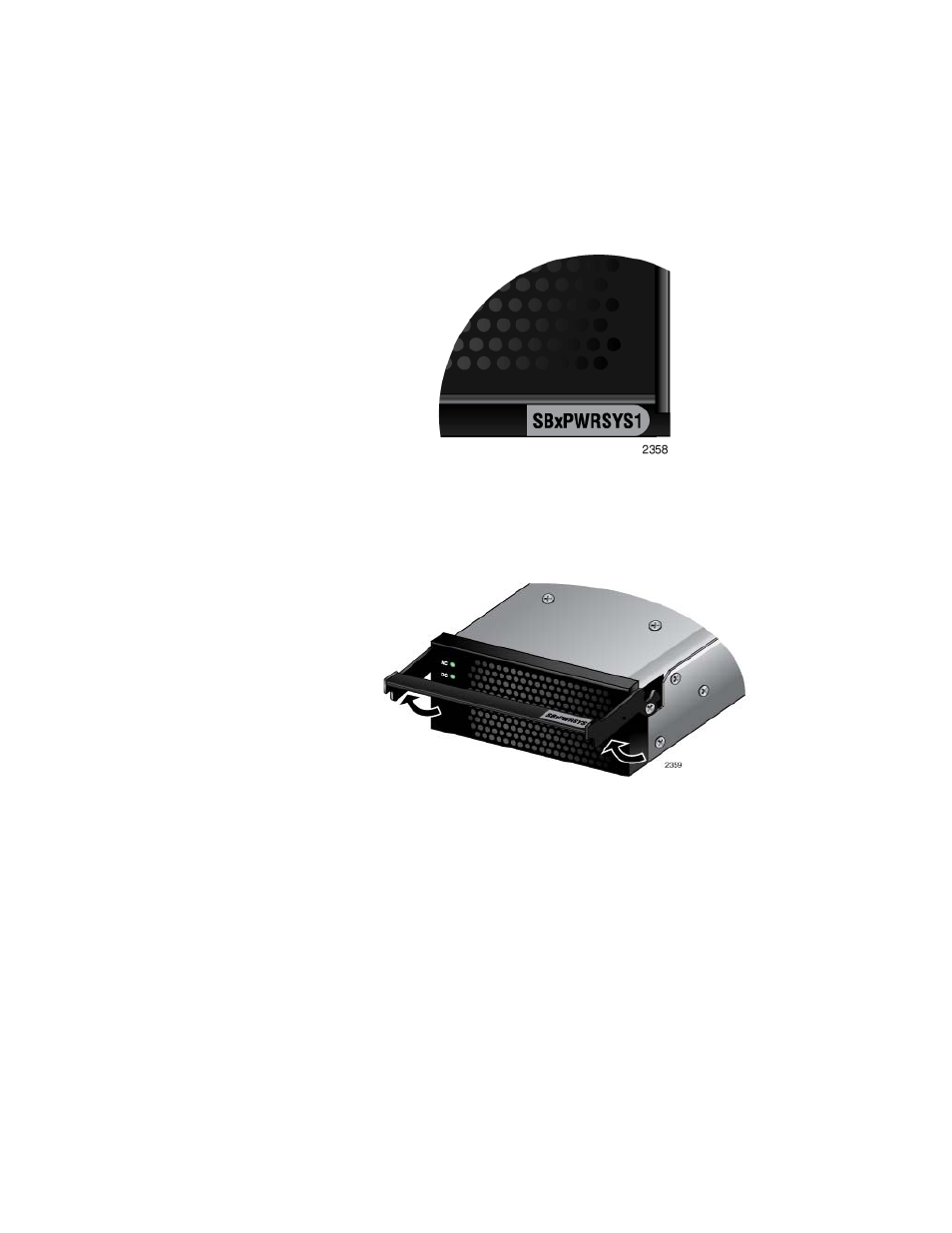

Figure 49. Verifying the AT-SBxPWRSYS1 Power Supply
5. Move the locking handle on the AT-SBxPWRSYS1 Power Supply to
the unlocked or up position. See Figure 50.
Figure 50. Unlocking the Handle on the AT-SBxPWRSYS1 Power Supply
