Allied Telesis SwitchBlade x8106 User Manual
Page 231
SwitchBlade x8106 Chassis Switch Installation Guide
231

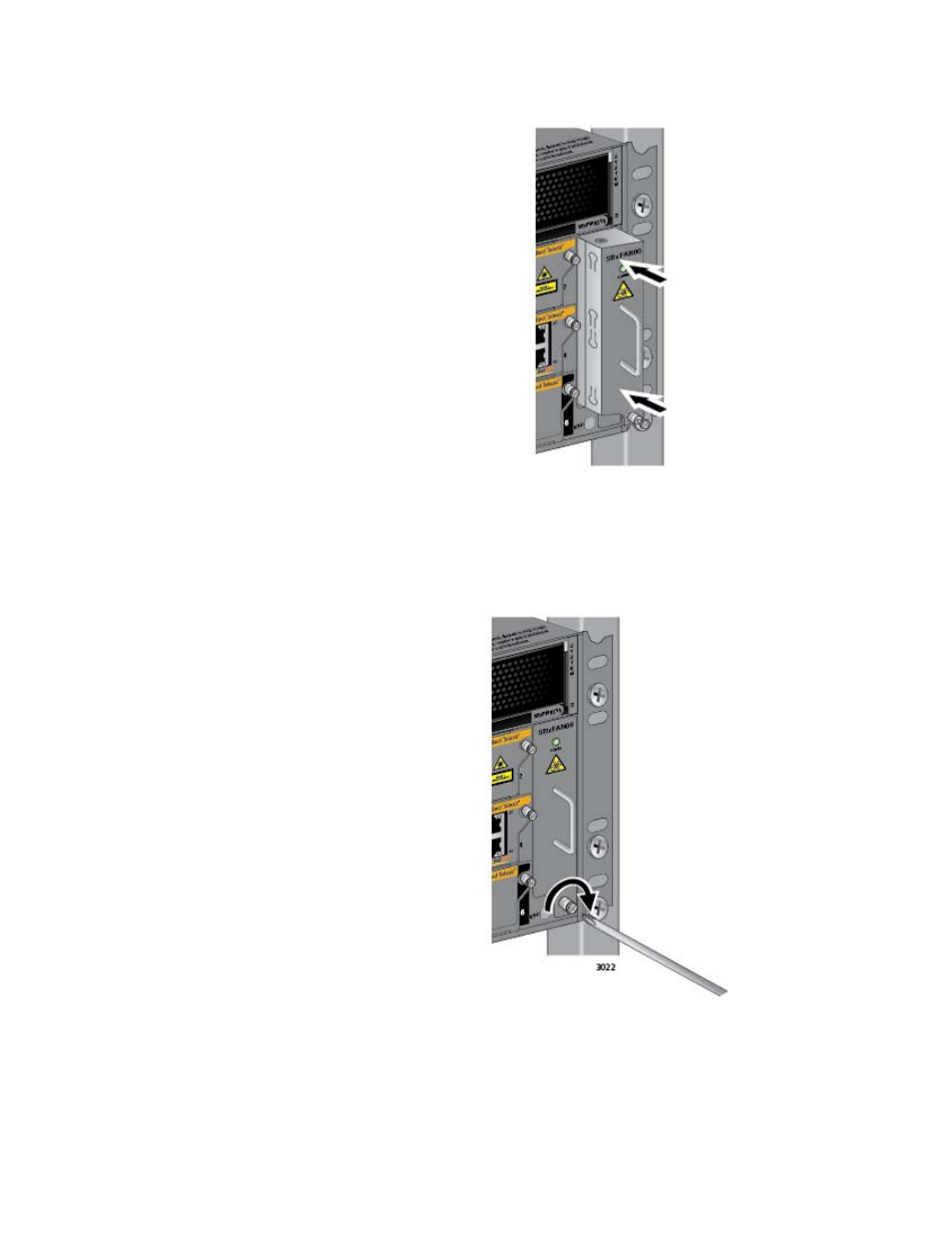

Figure 158. Securing the AT-SBxFAN06 Fan Module on the Backplane
Connector
3. With a #2 Phillips-head screwdriver, tighten the screw at the base of
the module to secure the module to the chassis. Refer to Figure 159.
Figure 159. Tightening the Screw on the AT-SBxFAN06 Fan Module
4. Reconnect any network cables you may have disconnected to access
the fan module.
