Chapter 1: Overview
20
Introduction
The SwitchBlade x8106 product is a modular Layer 3+ Ethernet switch.
The main components are the AT-SBx8106 Chassis, Ethernet line cards,
a controller card. system power supplies, Power over Ethernet Plus
(PoE+) power supply, and fan module. The AT-SBx8106 Chassis is
shown in Figure 1.

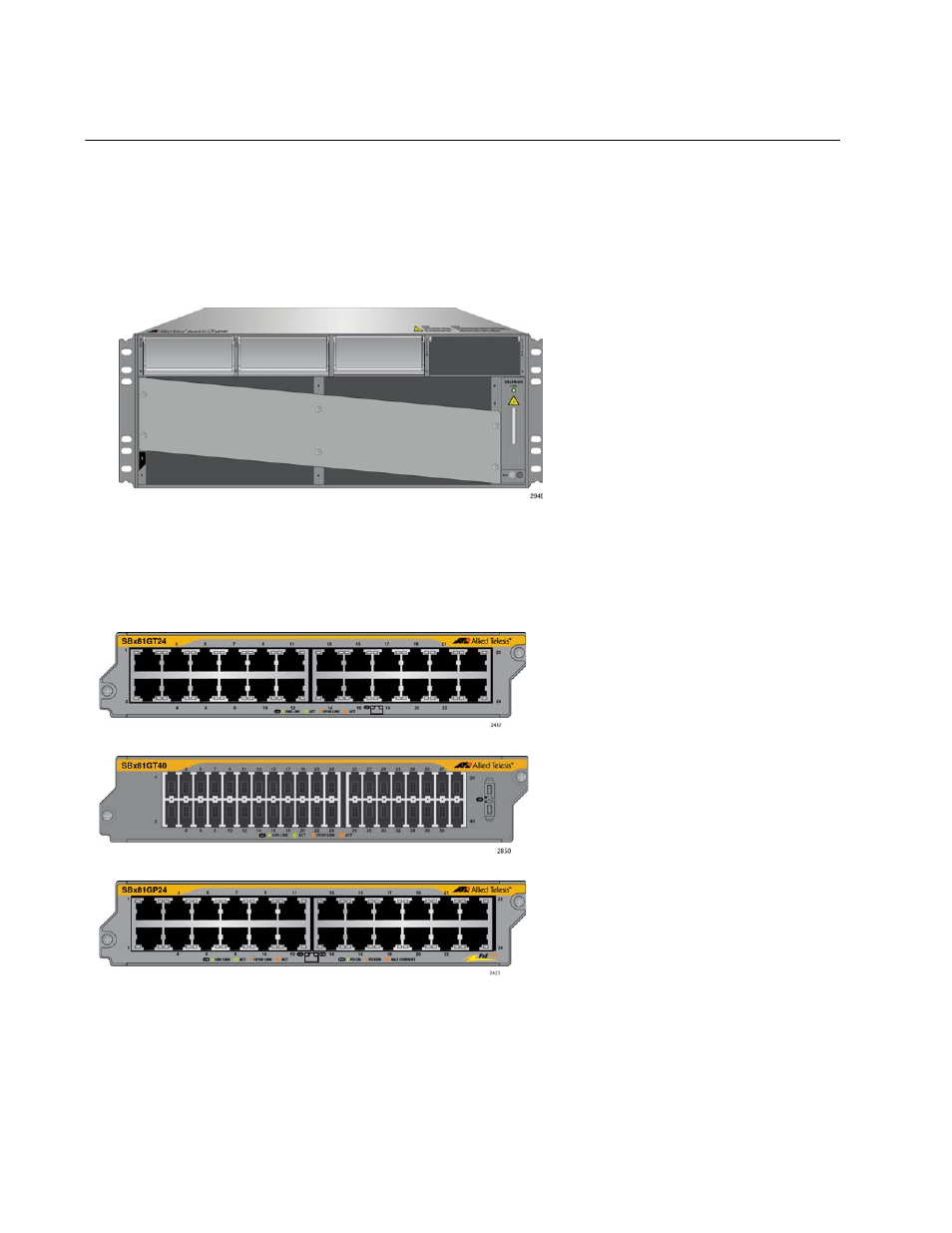

Figure 1. AT-SBx8106 Chassis
The Ethernet line cards and controller card are shown in Figure 2 here and
Figure 3 on page 21.
Figure 2. Ethernet Line Cards and Controller Card
Slots for four Ethernet line
cards, two controller cards, two
system power supplies, and two
PoE+ power supplies.
AT-SBx81GT24 Ethernet Line Card
with 24 10/100/1000Base-T twisted
pair ports.
AT-SBx81GT40 Ethernet Line Card
with 40 10/100/1000Base-T twisted
pair ports, with RJ point 5
connectors.
AT-SBx81GP24 Ethernet Line Card
with 24 10/100/1000Base-T twisted
pair ports, with PoE+.
