Allied Telesis SwitchBlade x8106 User Manual
Page 119
SwitchBlade x8106 Chassis Switch Installation Guide
119

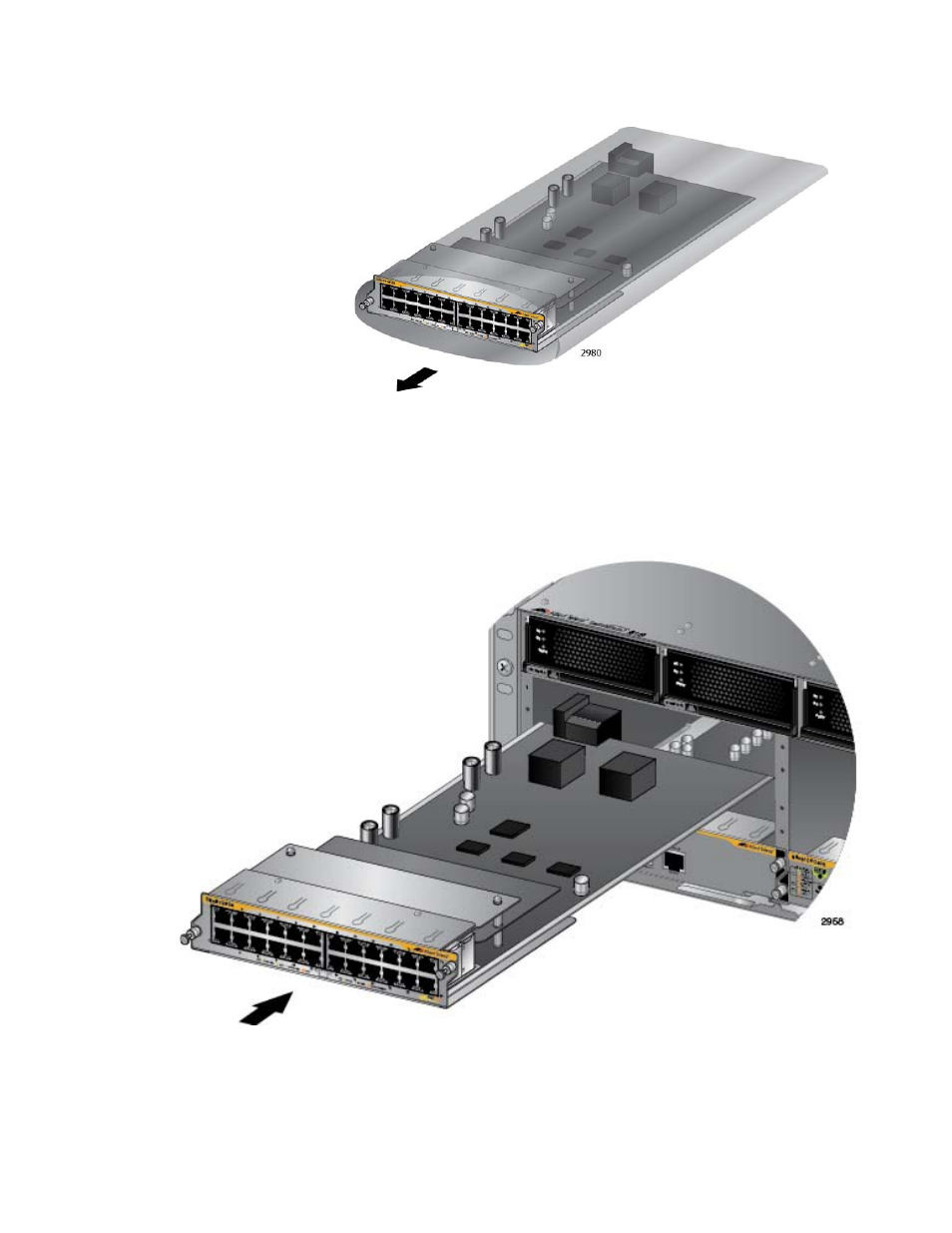

Figure 74. Removing an Ethernet Line Card from the Anti-static Bag
4. Align the line card with the internal chassis card guides in the selected
slot in the chassis.
Figure 75 shows an Ethernet line card aligned with slot 1.
Figure 75. Aligning an Ethernet Line Card in a Chassis Slot
5. Slowly and carefully slide the card into the slot.
