Allied Telesis SwitchBlade x8106 User Manual
Page 121
SwitchBlade x8106 Chassis Switch Installation Guide
121

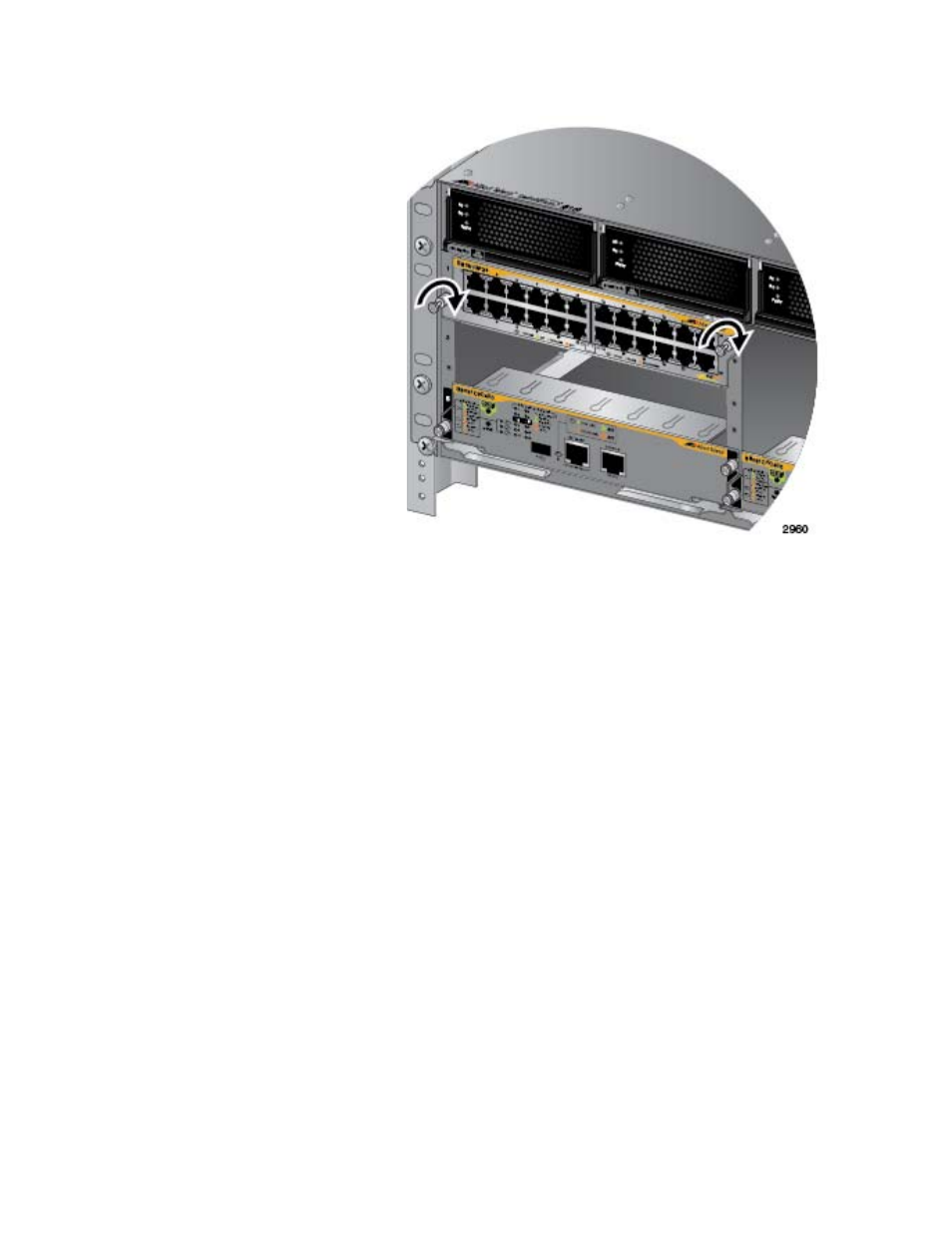

Figure 77. Tightening the Thumb Screws on an Ethernet Line Card
8. Tighten the two screws with a # 2 Phillips-head screwdriver to secure
the line card to the chassis.
Allied Telesis recommends tightening the screws to 5 inch-lbs.
9. Repeat this procedure to install the remaining Ethernet line cards.
10. After installing the line cards. go to “Installing the Blank Slot Covers” on
