Replacing the AT-SBxPWRSYS1 DC Power Supply
To remove an AT-SBxPWRSYS1 DC Power Supply from the chassis,
perform the following procedure:
1. Turn off the circuit breaker to the AT-SBxPWRSYS1 DC Power
Supply.
2. Turn off the On/Off switch on the front panel of the power supply. Refer
3. Use a #2 screwdriver to loosen the screw on the locking handle. Refer
Note
Do not lift the locking handle yet.

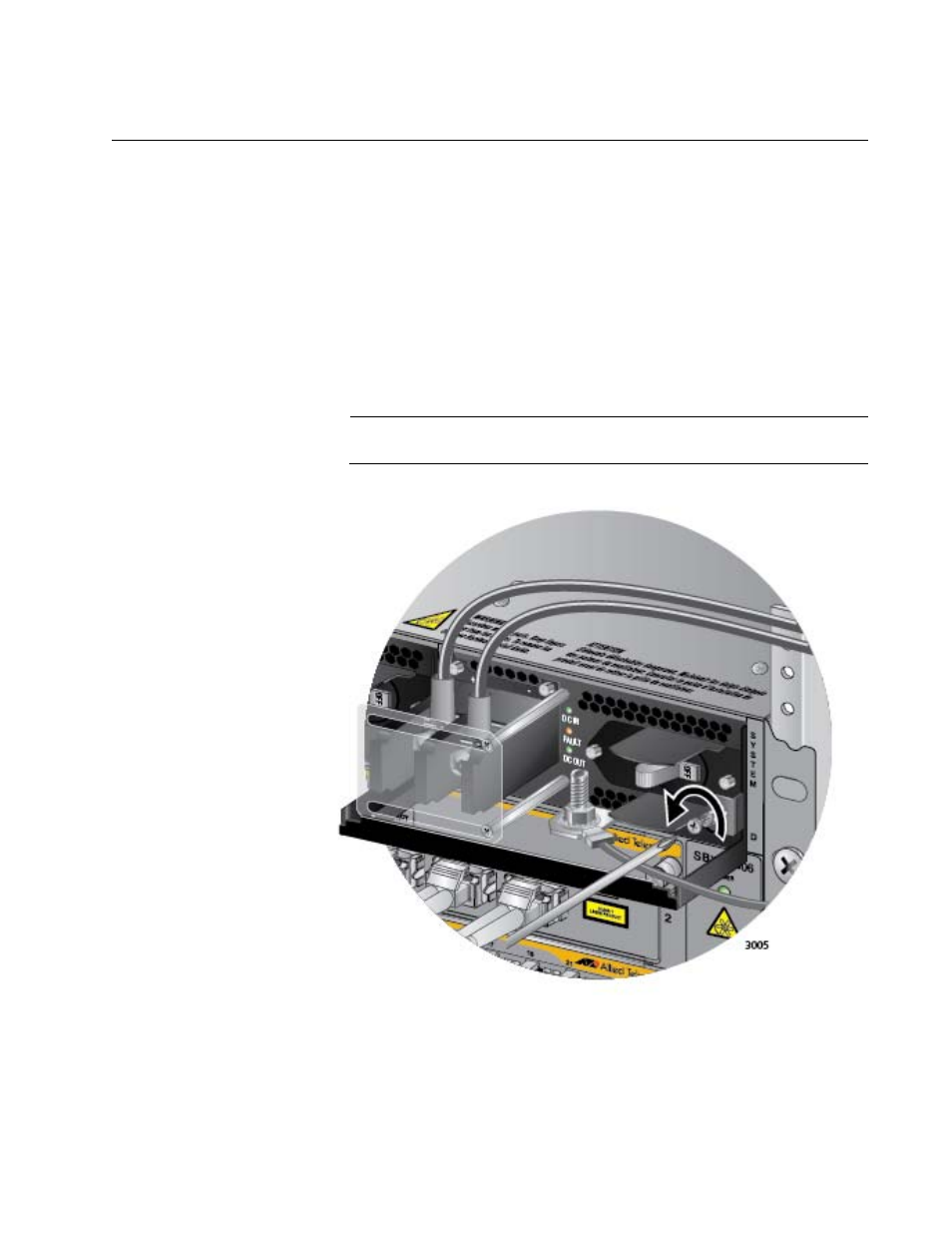

Figure 142. Loosening the Screw on the Locking Handle
