Figure 108: installing the grounding wire – Allied Telesis SwitchBlade x8106 User Manual
Page 155
SwitchBlade x8106 Chassis Switch Installation Guide
155

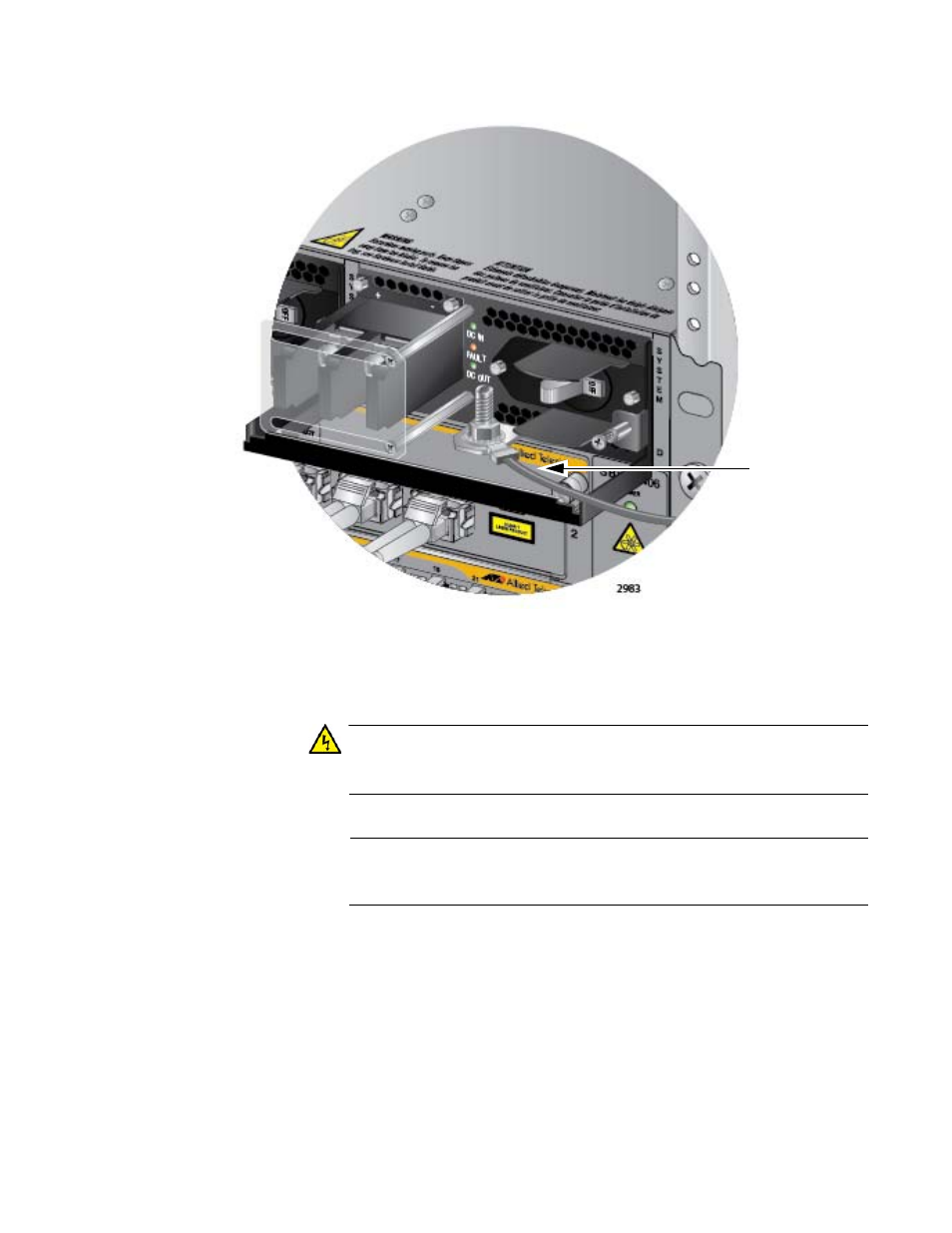

Figure 108. Installing the Grounding Wire
5. Connect the other end of the grounding wire to the building protective
earth.
Warning
When installing this equipment, always ensure that the power supply
ground connection is installed first and disconnected last. E11
Note
This system will work with a positive grounded or negative grounded
DC system. E13
After connecting the grounding wire, go to “Choosing a Method for
Attaching the Power Wires” on page 158.
Grounding
wire
