SwitchBlade x8106 Chassis Switch Installation Guide

229

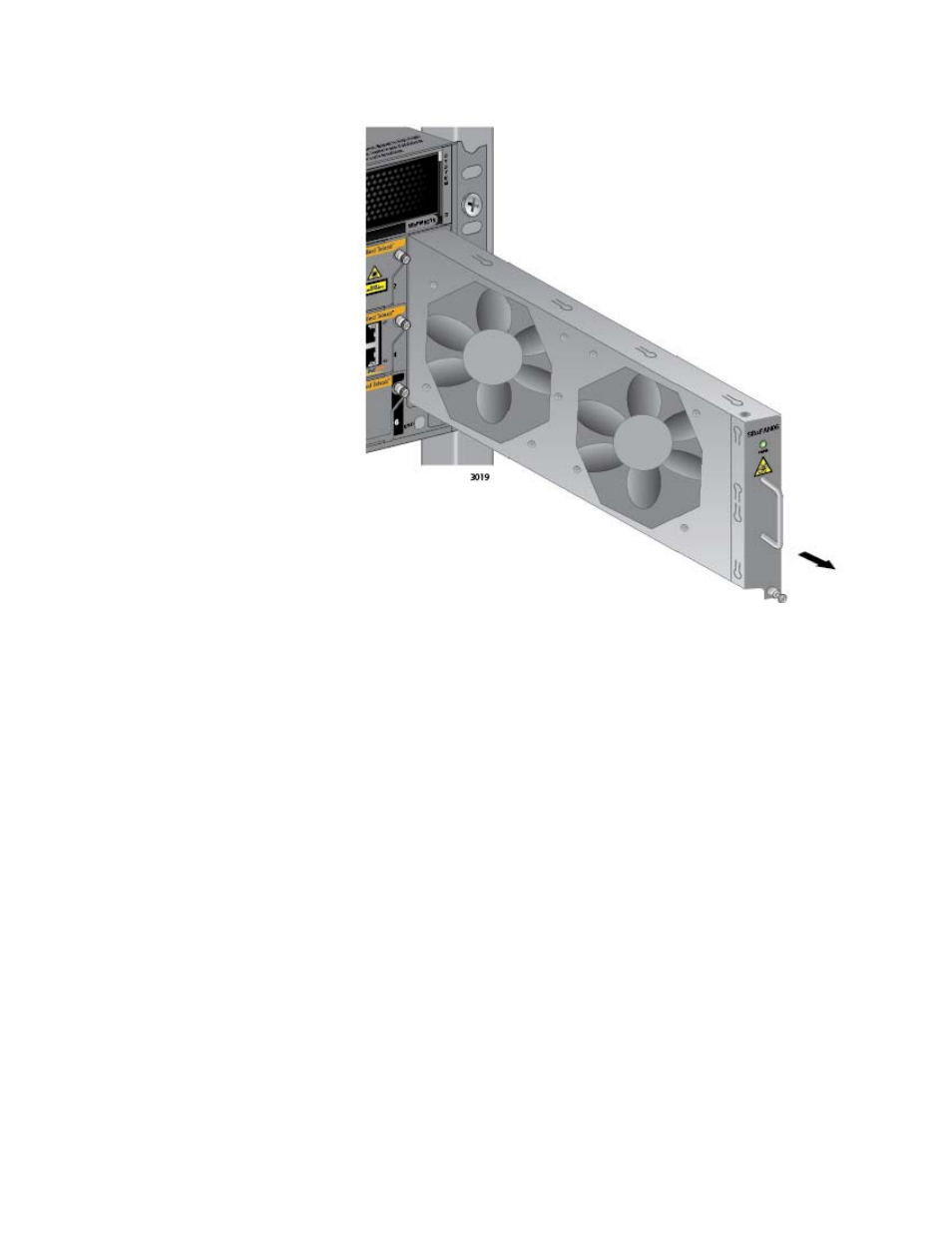

Figure 156. Removing the AT-SBxFAN06 Fan Module from the Chassis

Installing a New

AT-SBxFAN06

Fan Module

This procedure assumes that you have already removed the old fan
module from the chassis and are continuing directly from the previous
procedure, “Removing the AT-SBxFAN06 Fan Module” on page 226. To
install the new fan module, perform the following procedure

1. Orient the new module with the LED and module name on top and

carefully slide the module into the slot in the chassis. Refer to Figure
157 on page 230.
