Allied Telesis SwitchBlade x8106 User Manual
Page 134
Chapter 6: Installing the Transceivers and Cabling the Ports
134
Installing SFP+ Transceivers in the AT-SBx81XS6 Line Card
Please review the information in “Guidelines to Installing SFP and SFP+
Transceivers” on page 129 before performing this procedure.
To install 10 Gbps SFP+ transceivers in the AT-SBx81XS6 Line Card,
perform the following procedure:
1. Remove the dust plug from the slot chosen for an SFP+ transceiver.

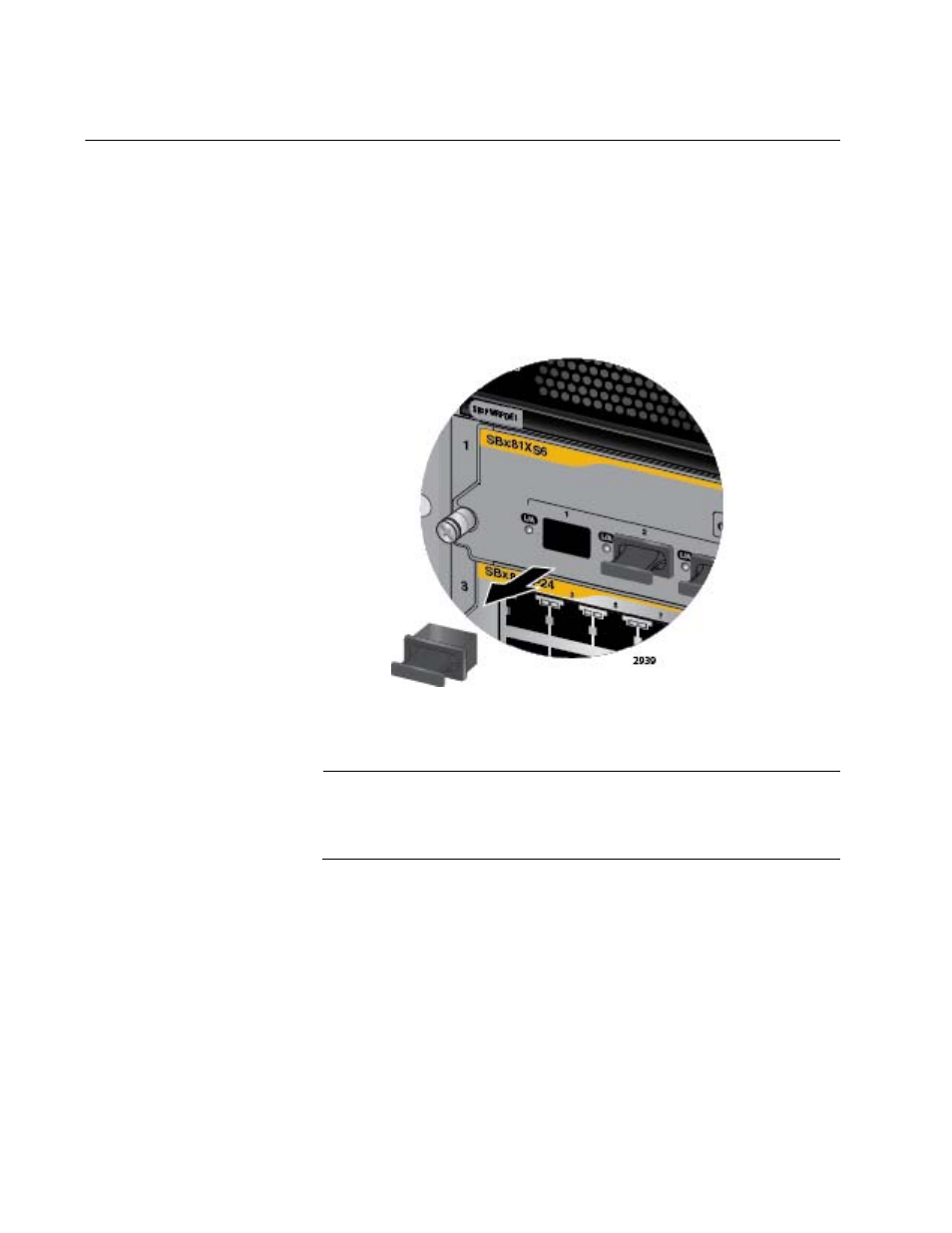

Figure 88 shows the dust plug removed from slot 1.
Figure 88. Removing the Dust Cover from an SFP+ Slot in the AT-
SBx81XS6 Line Card
Note
Do not remove the dust plug from the SFP+ slot if you are not
installing the transceiver at this time. The dust plug protects the line
card from dust contamination.
2. Orient the SFP+ transceiver with the handle on top, as shown in Figure
