Allied Telesis SwitchBlade x8106 User Manual
Page 160
Chapter 7: Powering On the Chassis
160

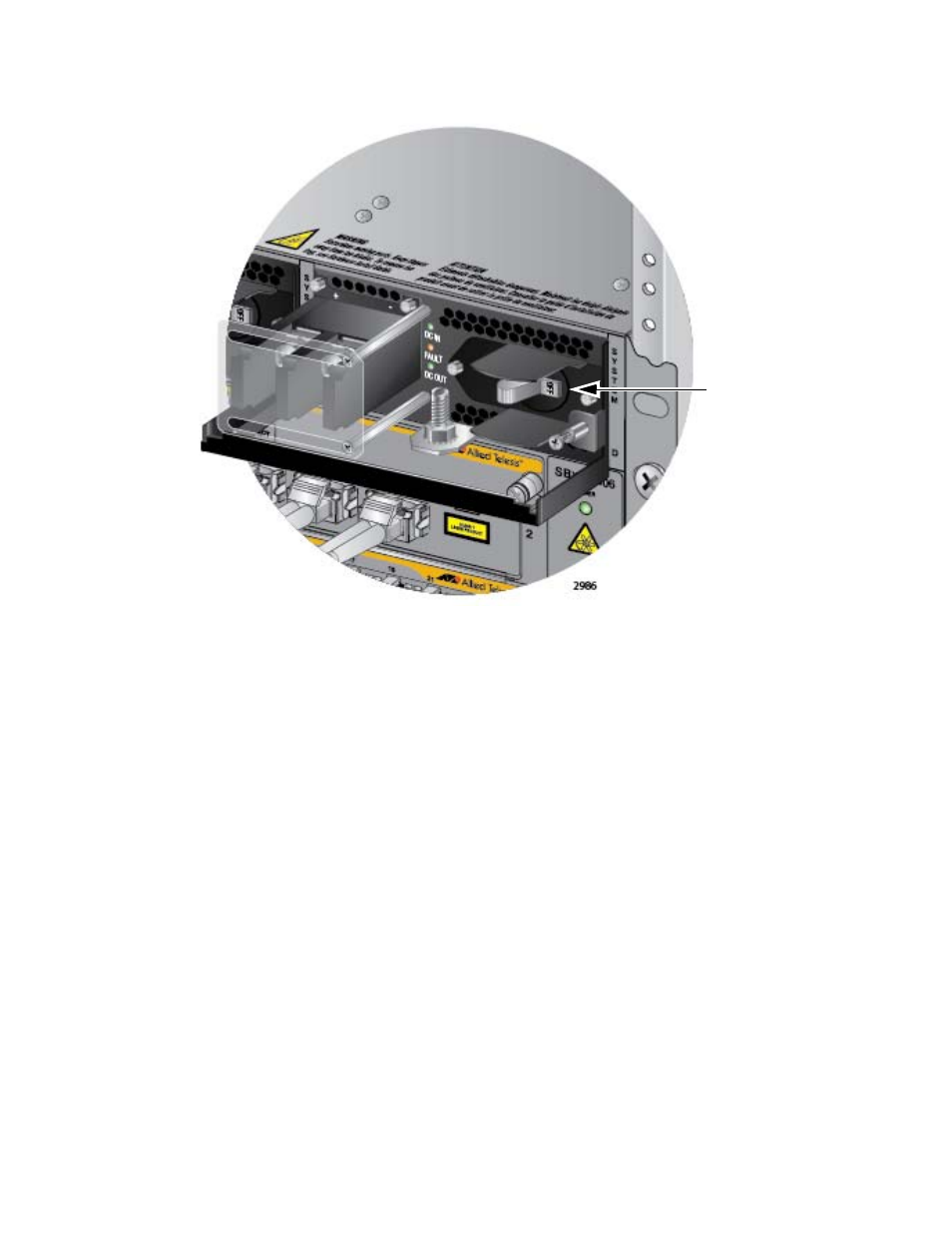

Figure 115. On/Off Switch on the AT-SBxPWRSYS1 DC Power Supply
4. Use a #1 Phillips-head screwdriver to loosen the two screws on the
plastic cover over the positive and negative terminals on the power
supply and slide the cover to the right, as shown in Figure 116 on page
161. You may need to slightly lift the locking handle to access the
bottom screw.
On/Off Switch
