Allied Telesis SwitchBlade x8106 User Manual
Page 114
Chapter 5: Installing the AT-SBx81CFC400 Controller and Ethernet Line Cards
114

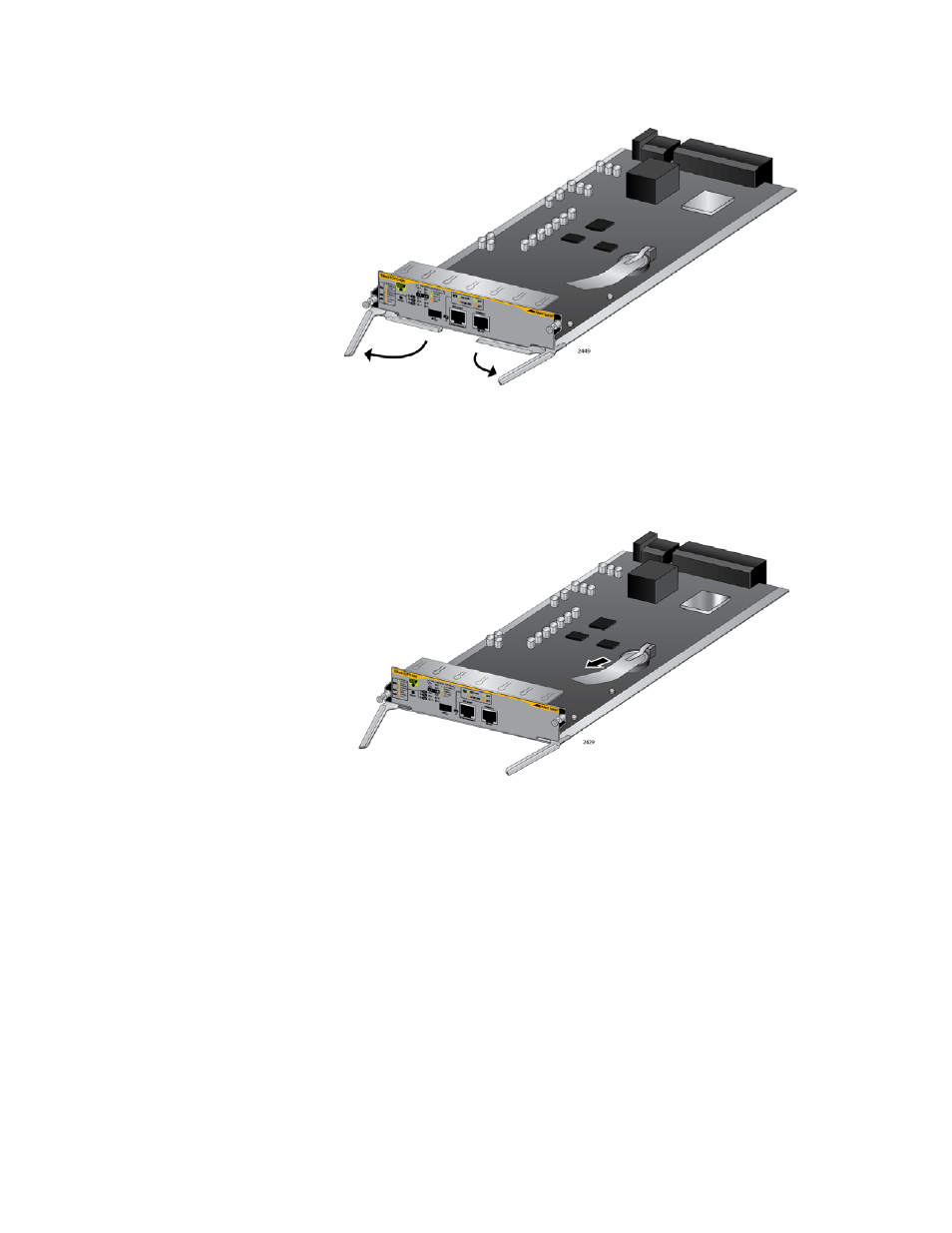

Figure 69. Opening the Locking Handles on the AT-SBx81CFC400
Controller Fabric Card
5. Remove the battery insulator tab on the controller card by sliding it out
from between the battery and battery clip, as shown in Figure 70.
Figure 70. Removing the Battery Insulator
6. Align the edges of the AT-SBx81CFC400 Controller Fabric Card with
the internal chassis card guides in slot 5 or 6 of the AT-SBx8106
Chassis. Figure 71 on page 115 shows the AT-SBx81CFC400 Card
aligned in slot 5.
