SwitchBlade x8106 Chassis Switch Installation Guide
59
AT-SBxFAN06 Module
The AT-SBxFAN06 Module is the cooling unit for the chassis. Refer to
Figure 26. It is a field- replaceable assembly that is installed in the AT-
SBx8106 Chassis at the factory.
The fan speeds are automatically controlled by the AT-SBx81CFC400
Controller Fabric Card, according to the internal operating temperature of
the unit. The fans are at their lowest speed when the ambient temperature
entering the chassis is approximately 20° C. The fan speeds increase to
provide additional cooling as the ambient temperature rises.

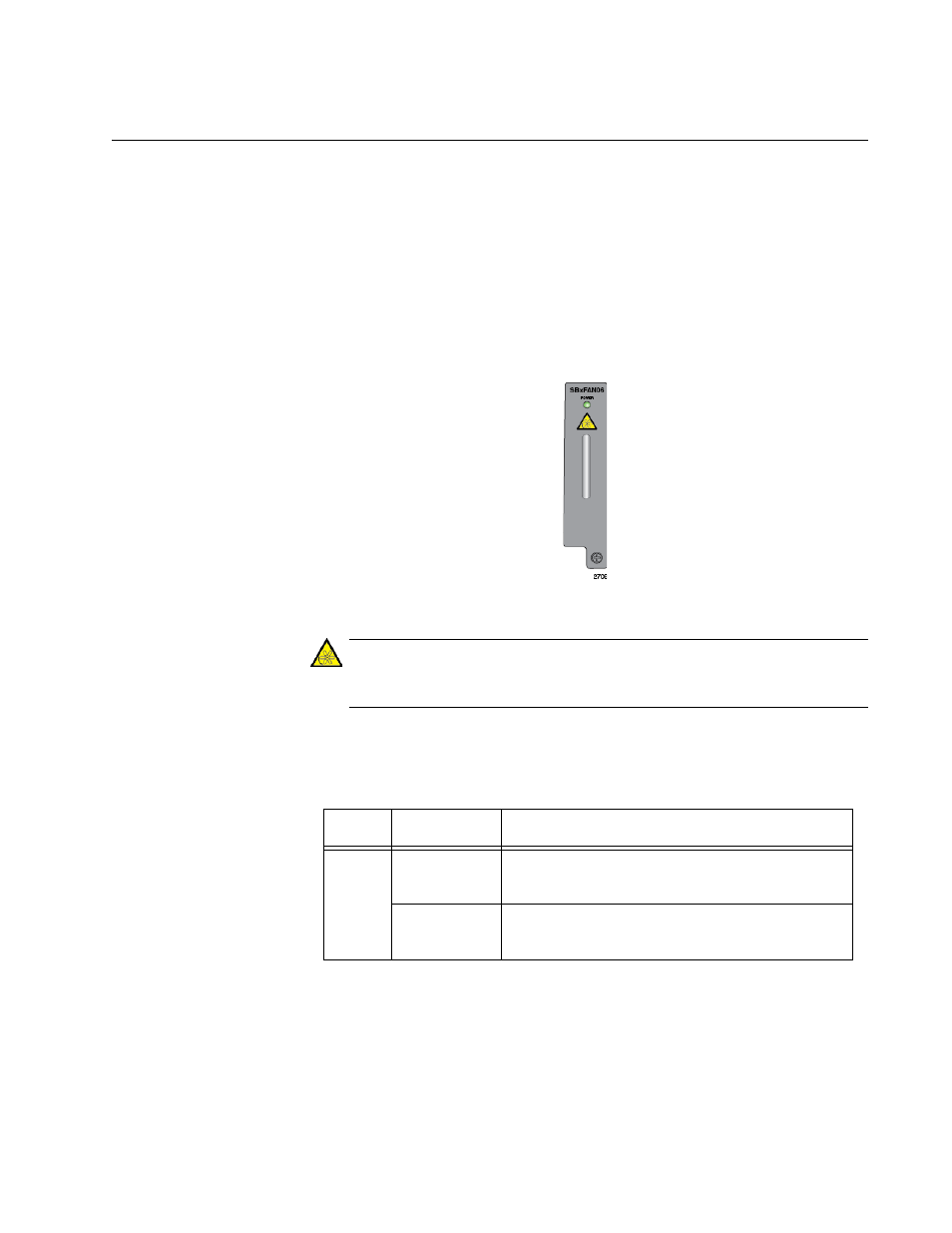

Figure 26. AT-SBxFAN06 Module
Warning
The AT-SBxFAN06 Fan Module has hazardous moving parts. Keep
fingers away from moving fan blades.
LED
The POWER LED on the AT-SBxFAN06 Module is described in Table 17.
Table 17. AT-SBxFAN06 Module LED
LED State Description
Power
Solid Green The AT-SBxFAN06 Module is receiving
power.
OFF The AT-SBxFAN06 Module is not receiving
power or has failed.
