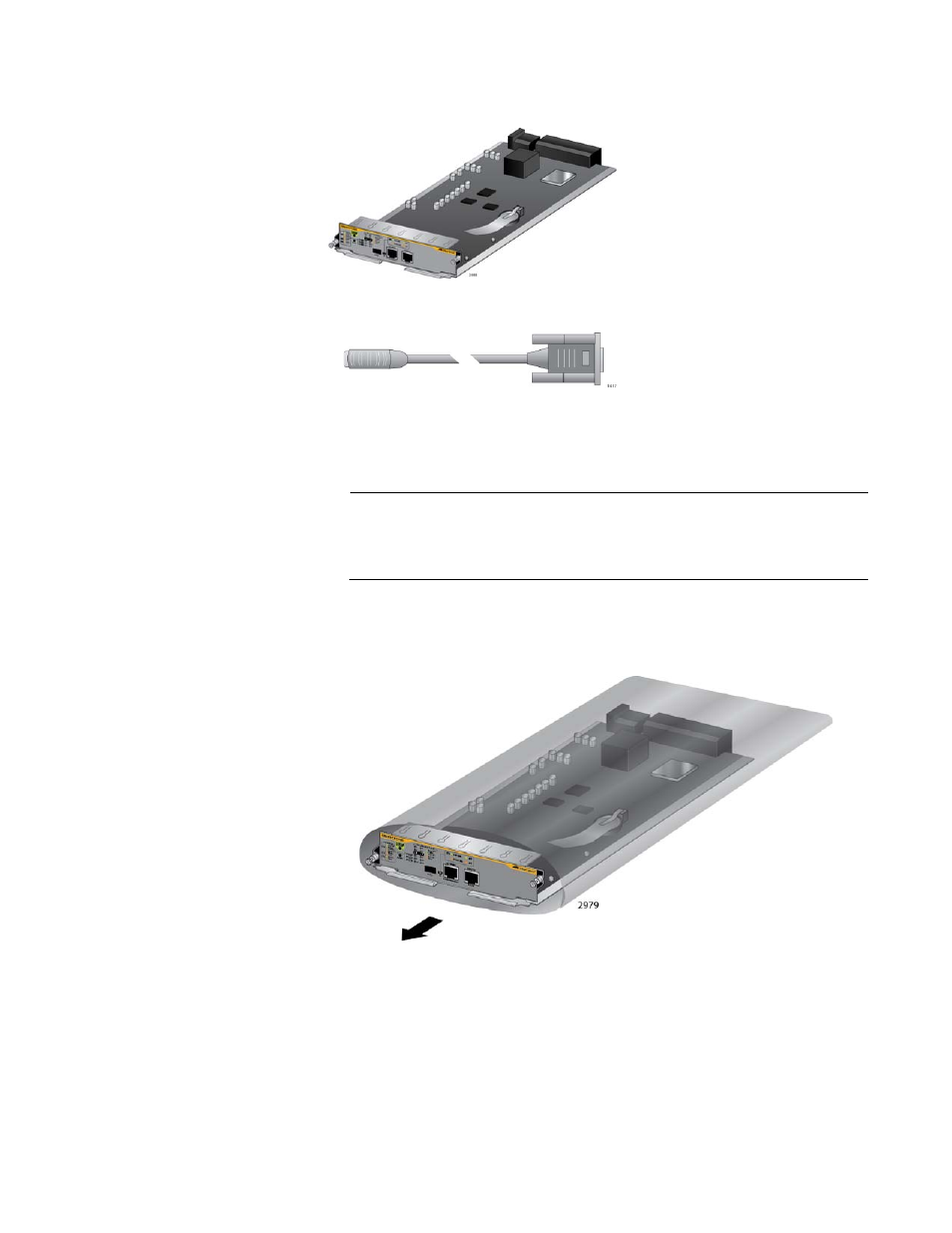

Figure 67. Items Included with the AT-SBx81CFC400 Controller Fabric
Card
Note
Store the packaging material in a safe location. You should use the
original shipping material if you need to return the unit to Allied
Telesis.
3. Carefully remove the controller card from the anti-static bag. Refer to
Figure 68.
Figure 68. Removing the AT-SBx81CFC400 Controller Fabric Card from
the Anti-static Bag
4. Move the locking handles on the front panel to the open position, as
shown in Figure 69 on page 114.
One AT-SBx81CFC400
Controller Fabric Card
One 2 m (6.6 ft) local
management cable with
RJ-45 (8P8C) and DB-9
(D-sub 9-pin) connectors.
