SwitchBlade x8106 Chassis Switch Installation Guide
23
AT-SBx8106 Chassis
The AT-SBx8106 Chassis is a 4RU unit with slots for four Ethernet line
cards, two controller cards, two system power supply modules, and two
PoE power supply modules. The chassis components are identified in
Figure 6 here and Figure 7 on page 24.

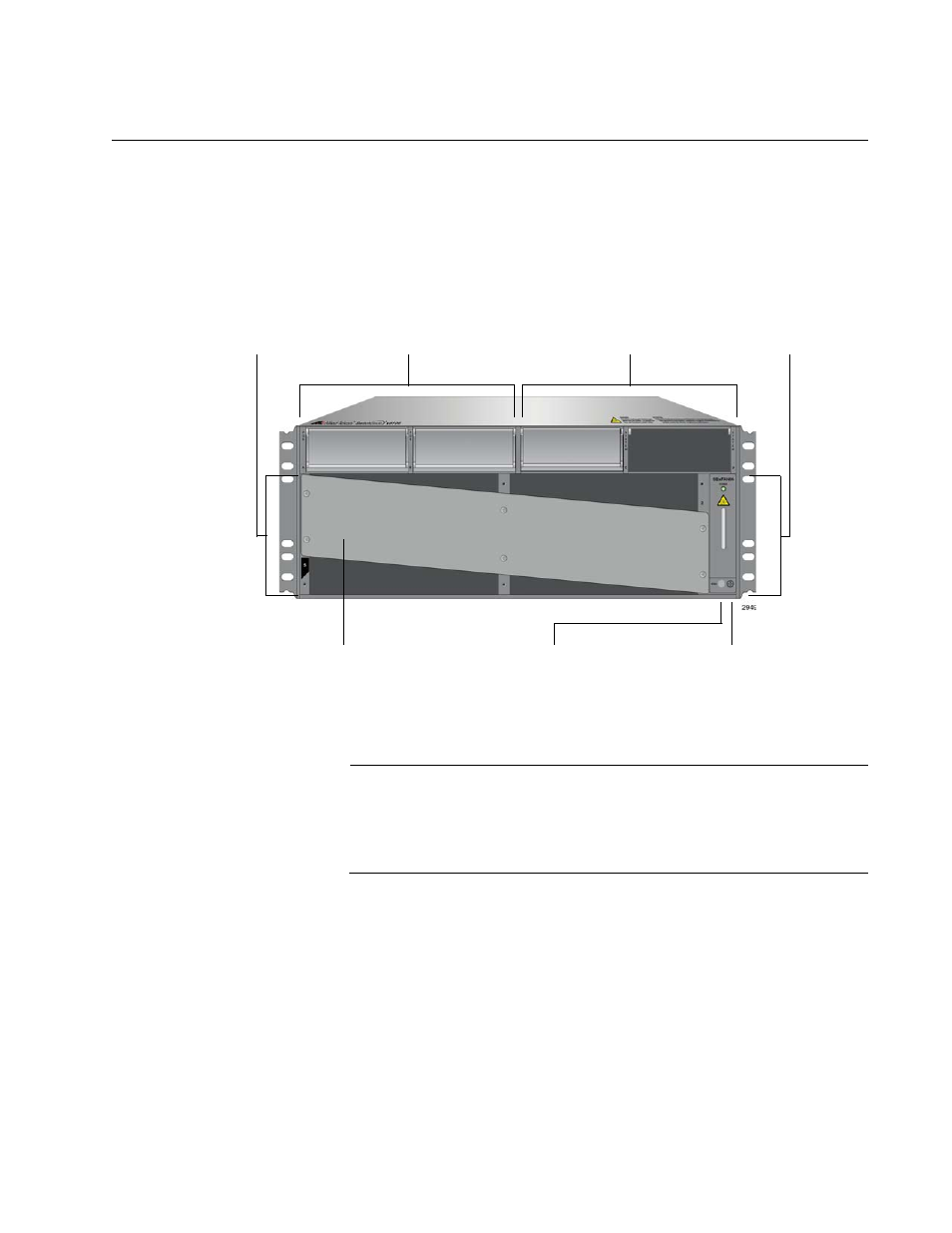

Figure 6. Front View of the AT-SBx8106 Chassis
Note
Do not remove the shipping brace from the front of the chassis until
after the unit is installed in the equipment rack. You might bend the
chassis and cause misalignment of the slots and card guides if you
lift the chassis into the equipment rack without the shipping brace.
Shipping Brace
Slots for Ethernet
Line Cards and
Controller Cards PoE Power
Supply Slots
System Power
Supply Slots
Slots for Ethernet
Line Cards and
Controller Cards
AT-SBxFAN06
Module
ESD Wrist
Strap Plug
