SwitchBlade x8106 Chassis Switch Installation Guide
131
3. To install the transceiver in an SFP slot on the top row of the line card,
orient the transceiver with the handle on top, as shown in Figure 83. To
install it into a slot on the bottom row of the line card, orient it with the
handle on the bottom.

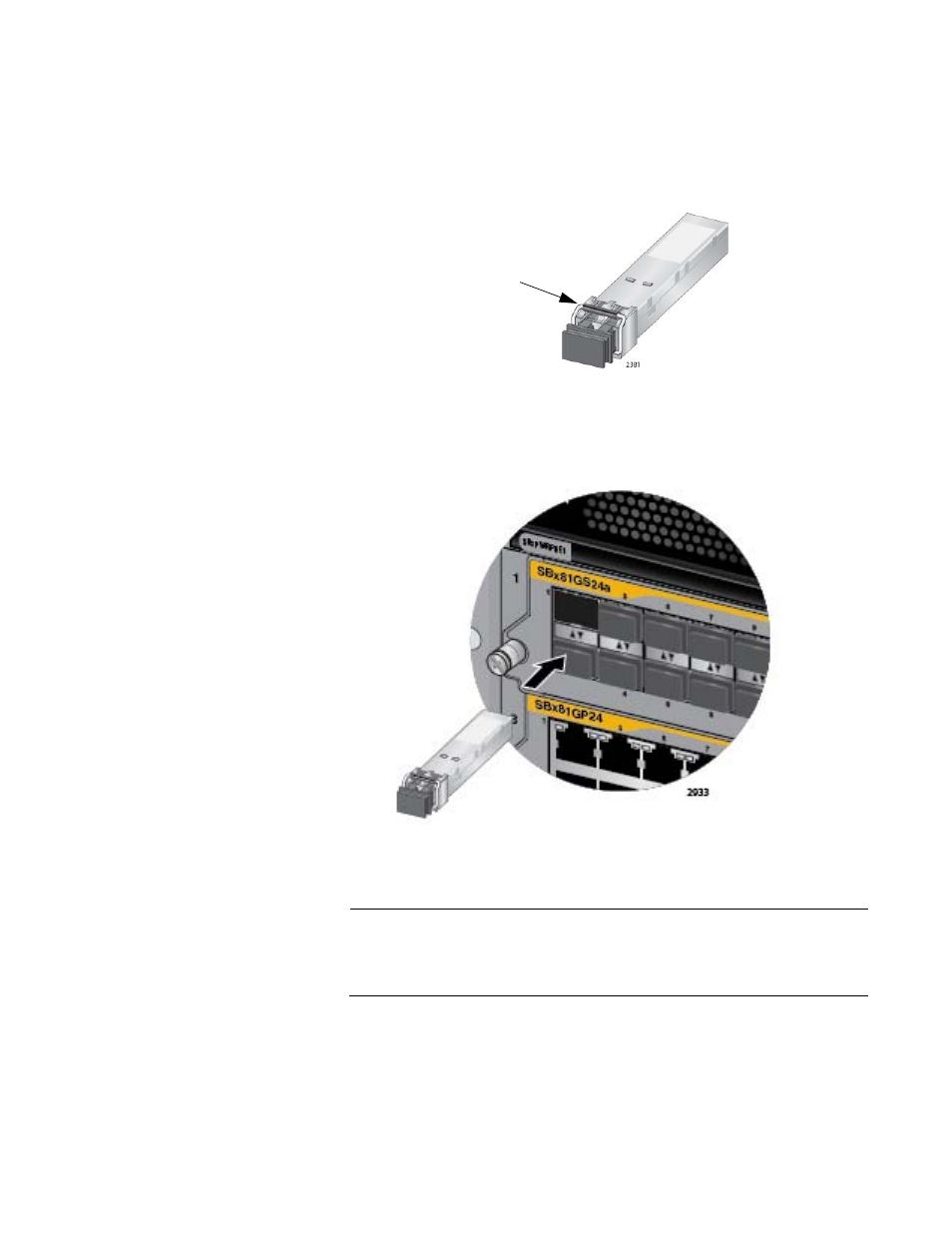

Figure 83. Handle on SFP Transceiver
4. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 84.
Figure 84. Inserting the SFP Transceiver in the AT-SBx81GS24a Line
Card
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 4 to install
the remaining SFP transceivers in the line cards.
5. Remove the protective cover from the SFP transceiver, as shown in
Figure 85 on page 132.
Handle
