As shown in figure – Allied Telesis SwitchBlade x8106 User Manual
Page 135
SwitchBlade x8106 Chassis Switch Installation Guide
135

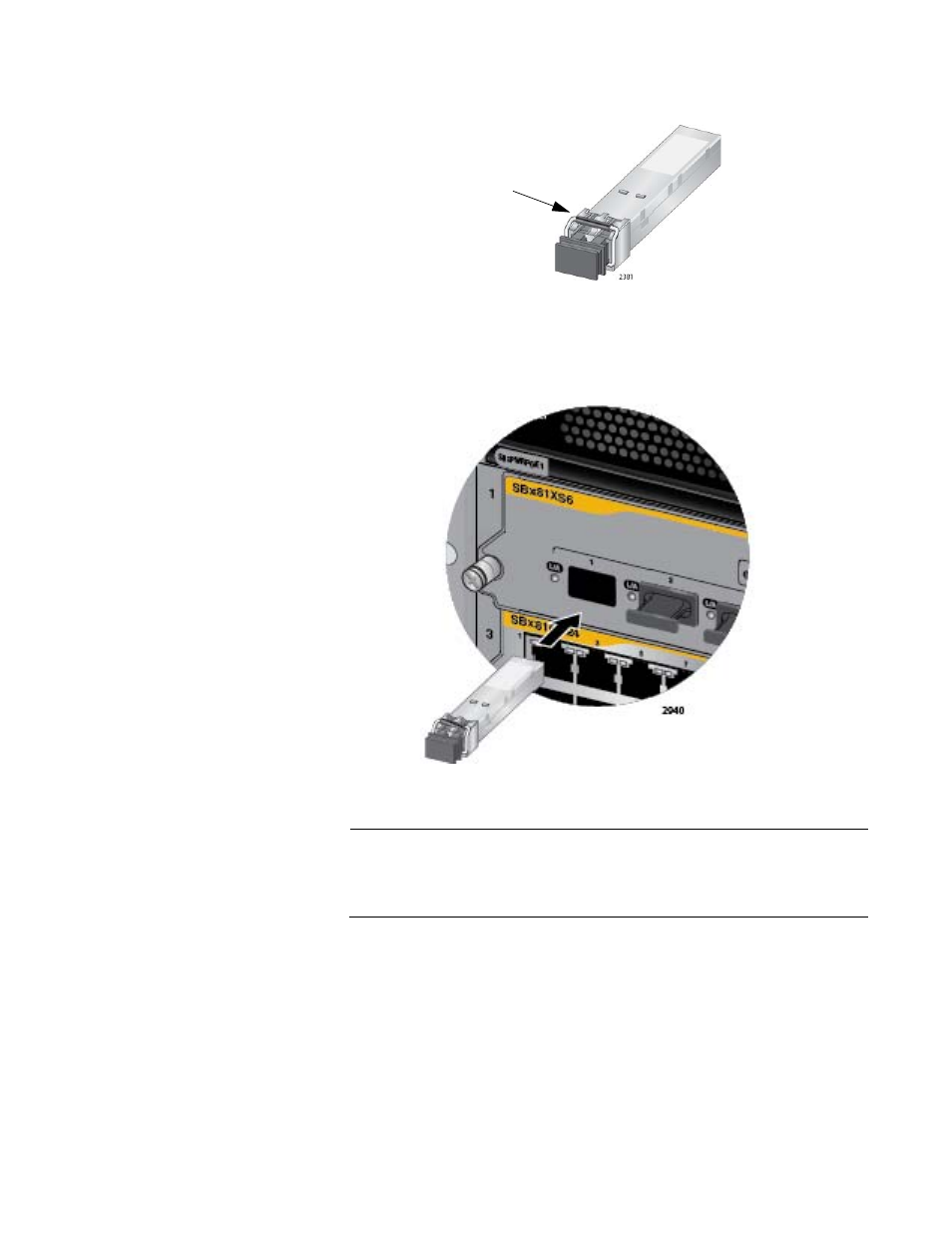

Figure 89. Handle on SFP+ Transceiver
3. Slide the transceiver into the slot until it clicks into place, as shown in
Figure 90. Installing an SFP+ Transceiver in the AT-SBx81XS6 Line Card
Note
If you are ready to attach the fiber optic cable to the transceiver,
continue with the next step. Otherwise, repeat steps 1 to 3 to install
the remaining SFP+ transceivers in the line card.
4. Remove the protective cover from the SFP+ transceiver, as shown in
Handle
