Allied Telesis SwitchBlade x8106 User Manual
Page 230
Chapter 10: Replacing Modules
230

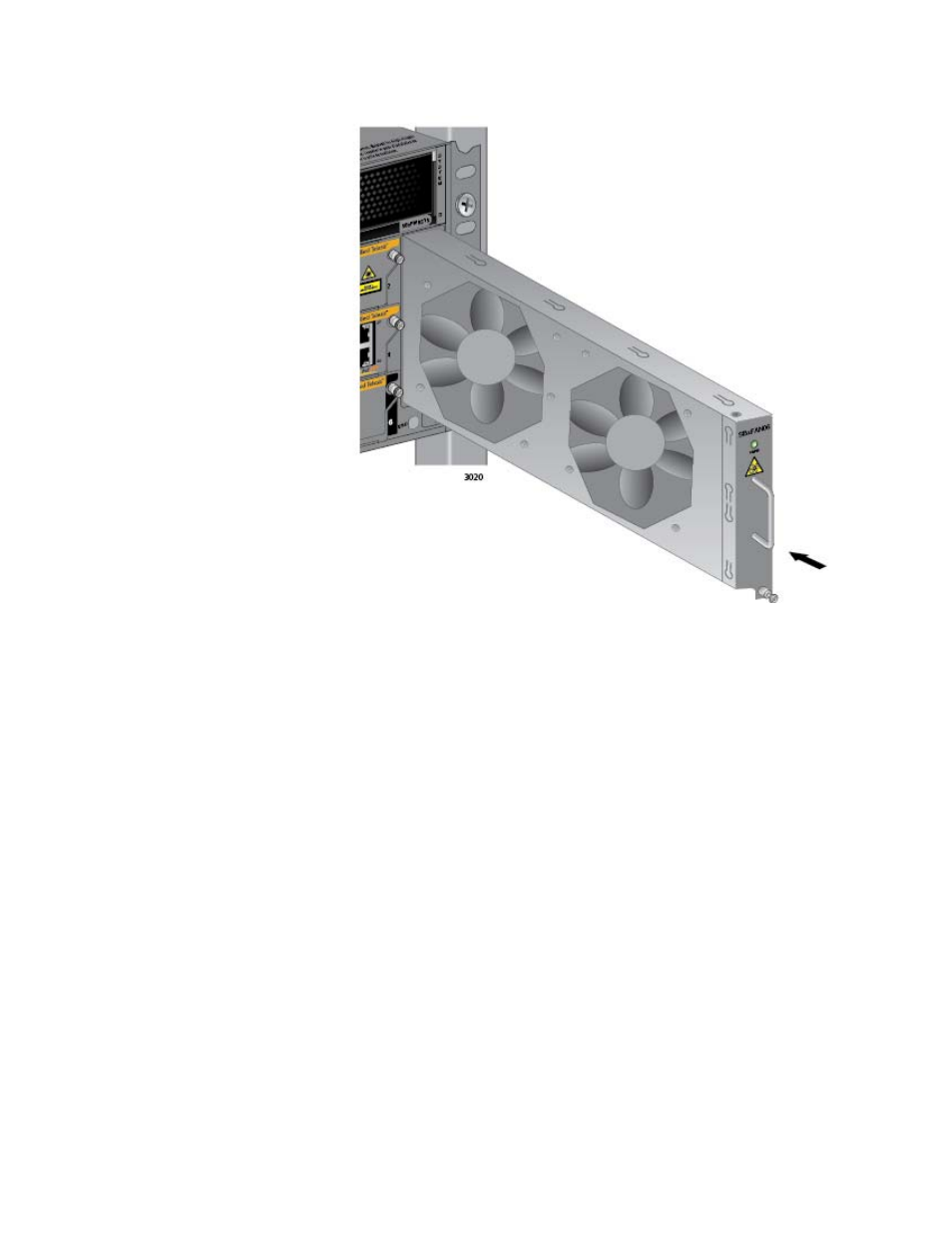

Figure 157. Installing a New AT-SBxFAN06 Fan Module
2. When you feel the fan module make contact with the connector on the
backplane, gently push on the top and bottom of the faceplate to seat
the module on the connector. Refer to Figure 158 on page 231.
