Allied Telesis SwitchBlade x8106 User Manual
Page 227
SwitchBlade x8106 Chassis Switch Installation Guide
227

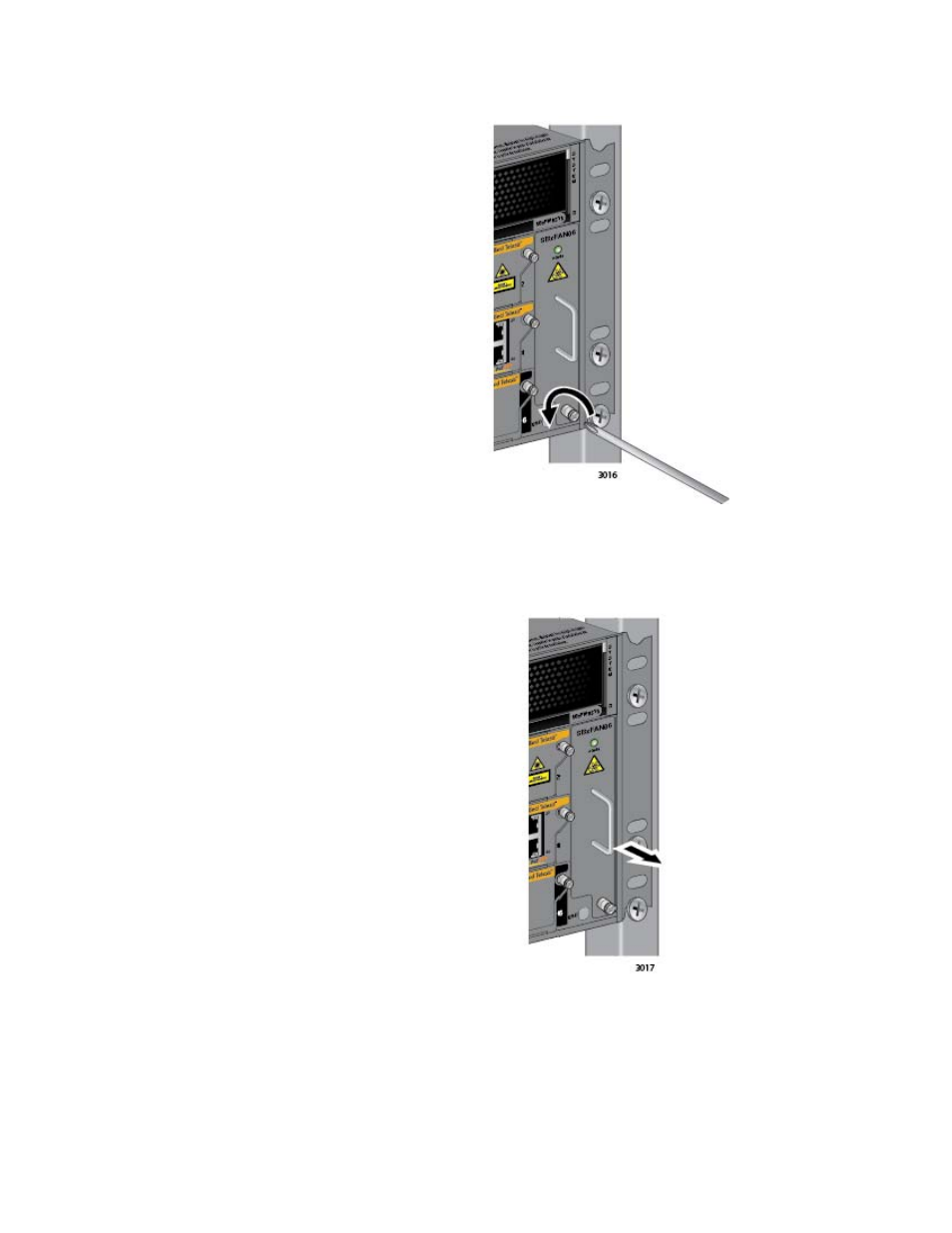

Figure 153. Loosening the Screw on the AT-SBxFAN06 Fan Module
3. Carefully pull on the handle to disconnect the fan module from the
connector on the backplane of the chassis. Refer to Figure 154.
Figure 154. Loosening the AT-SBxFAN06 Fan Module from the Backplane
Connector
